Skid Control Buzzer Circuit: Wiring Diagram

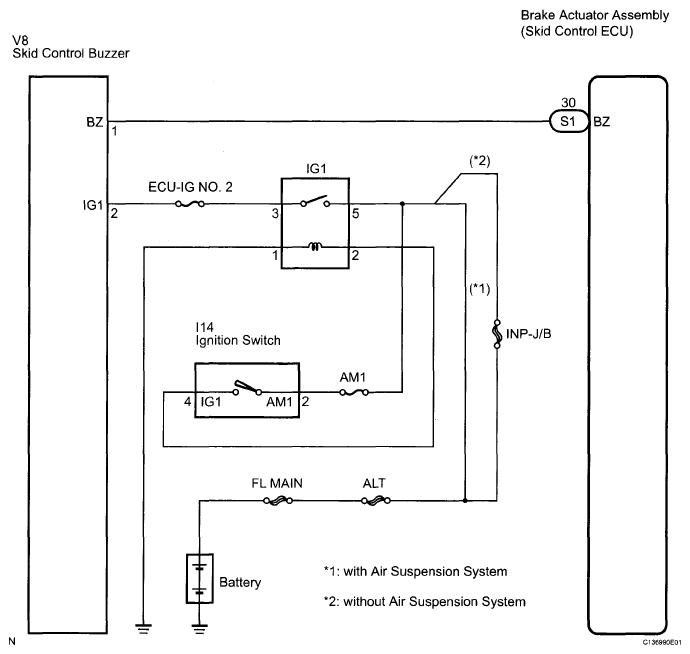

Fig 1: Brake Actuator Assembly And Skid Control Buzzer - Wiring Diagram
G05841948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
