Brake Actuator: Components

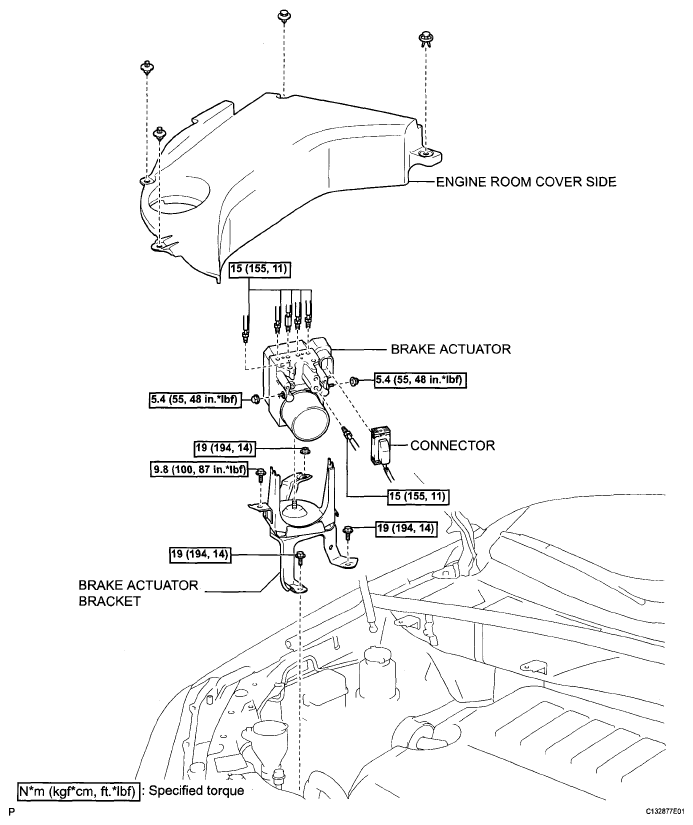

Fig 1: Brake Actuator Replacement Components With Torque Specifications
G05841960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
