Automatic Transaxle Unit: Components

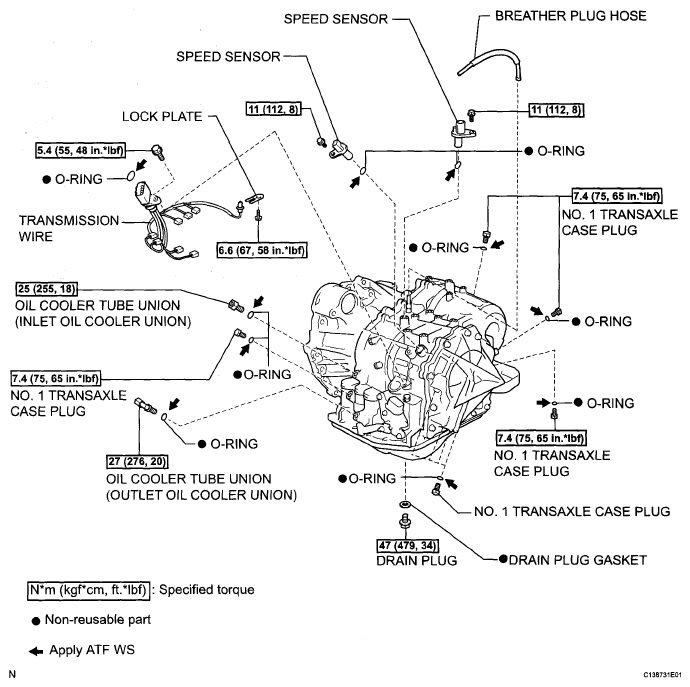

Fig 1: Automatic Transaxle Unit Components And Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Automatic Transaxle Unit Components And Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Automatic Transaxle Unit Components And Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Automatic Transaxle Unit Replacement Components And Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Automatic Transaxle Unit Components (5 Of 7)

Fig 6: Automatic Transaxle Unit Components And Torque Specifications (6 Of 7)

Fig 7: Automatic Transaxle Unit Components And Torque Specifications (7 Of 7)
