DTC U0122 Lost Communication with Vehicle Dynamics Control Module: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

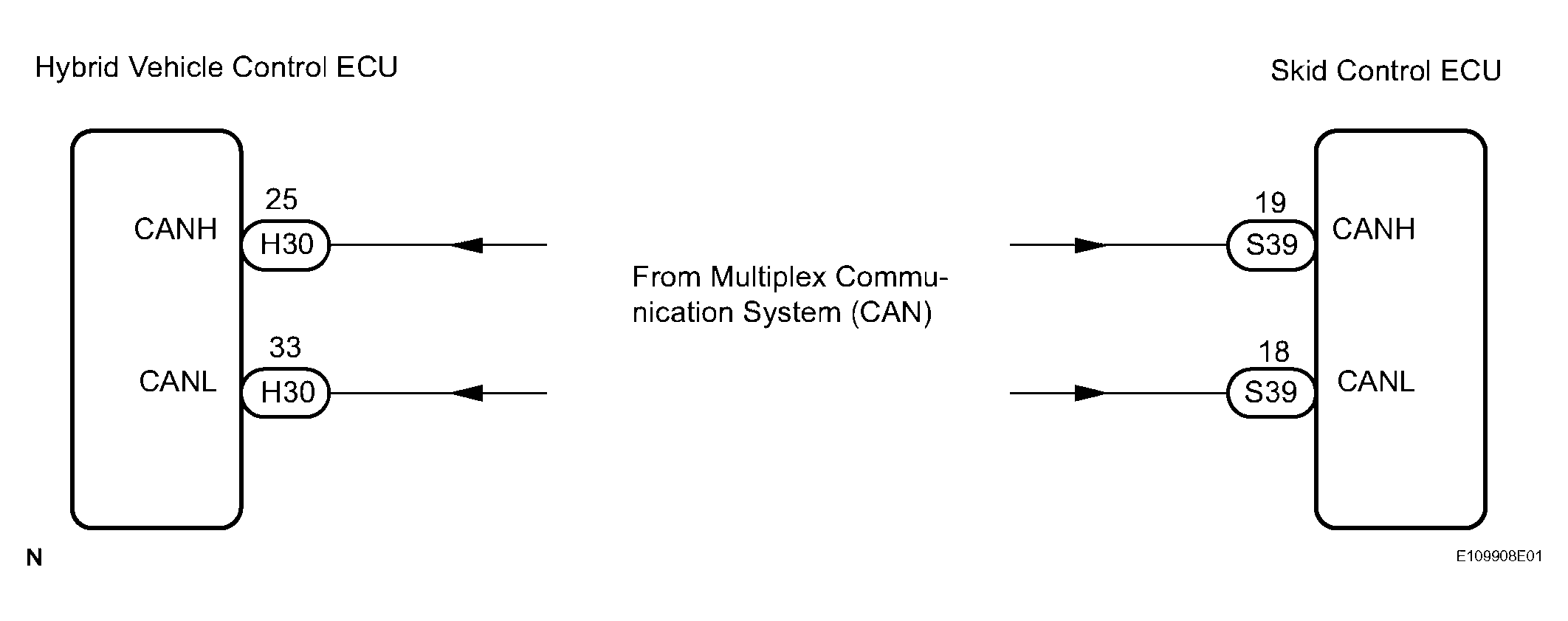

Fig 1: Wiring Diagram - Lost Communication With Vehicle Dynamics Control Module
G04114858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

This circuit uses CAN communication. Therefore, if there are any malfunction in the communication circuit, one or more DTCs in the CAN communication system are output.

  1. GO TO  CAN COMMUNICATION SYSTEM
