Cellular Phone Voice Circuit between Multi-display and Navigation ECU: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

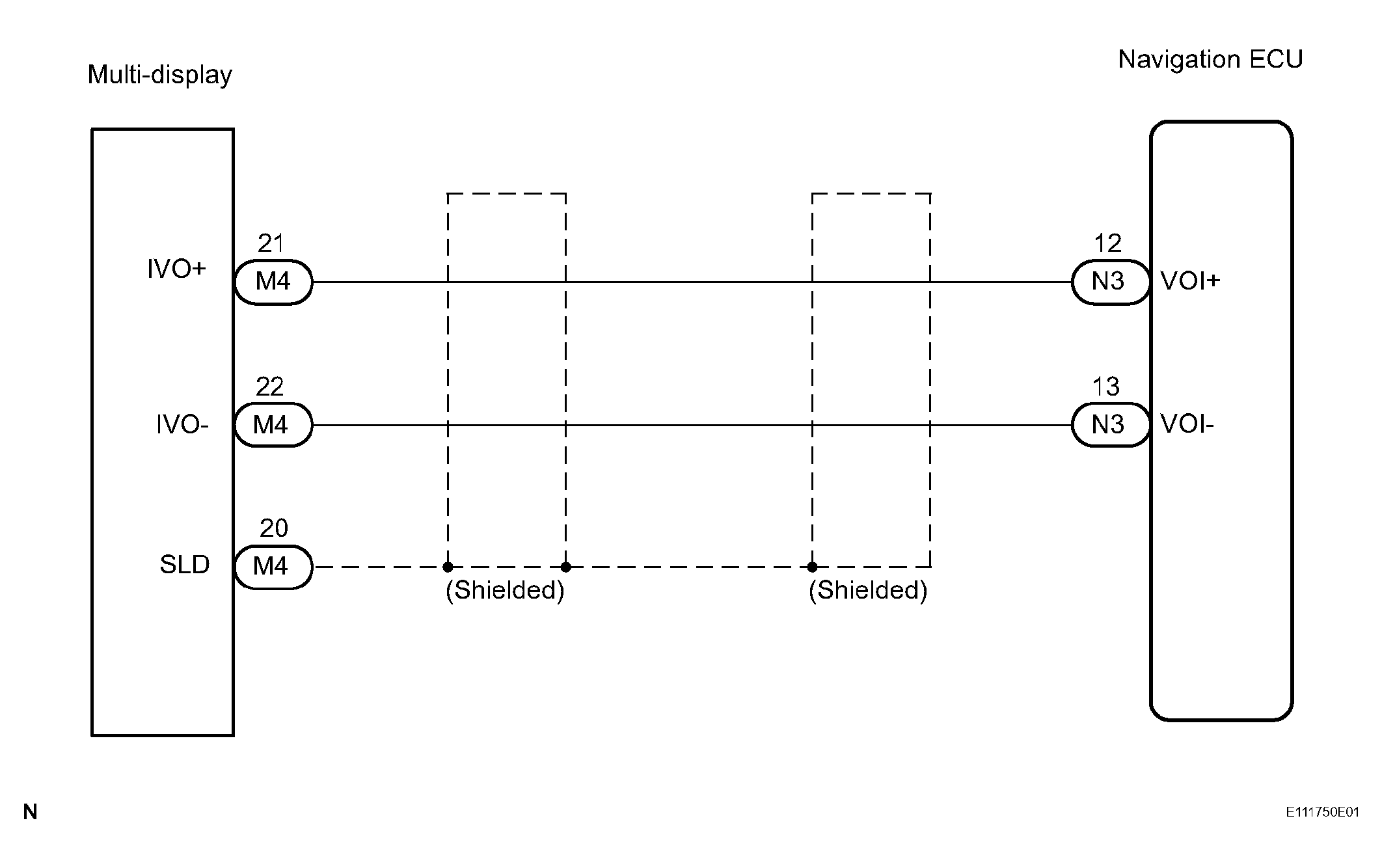

Fig 1: Cellular Phone Voice Circuit Between Multi-Display And Navigation ECU - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - MULTI-DISPLAY)

Disconnect the navigation ECU connector N3 and multi-display connector M4.

Measure the resistance according to the value(s) in the table below.

Resistance

ECU CONNECTOR TERMINAL RESISTANCE SPECIFICATION

Tester connection	Condition	Specified condition
IVO+ - VOI+	Always	Below 1 Ω
IVO- - VOI-	Always	Below 1 Ω
IVO+ - Body ground	Always	10 kΩ or higher
IVO- - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

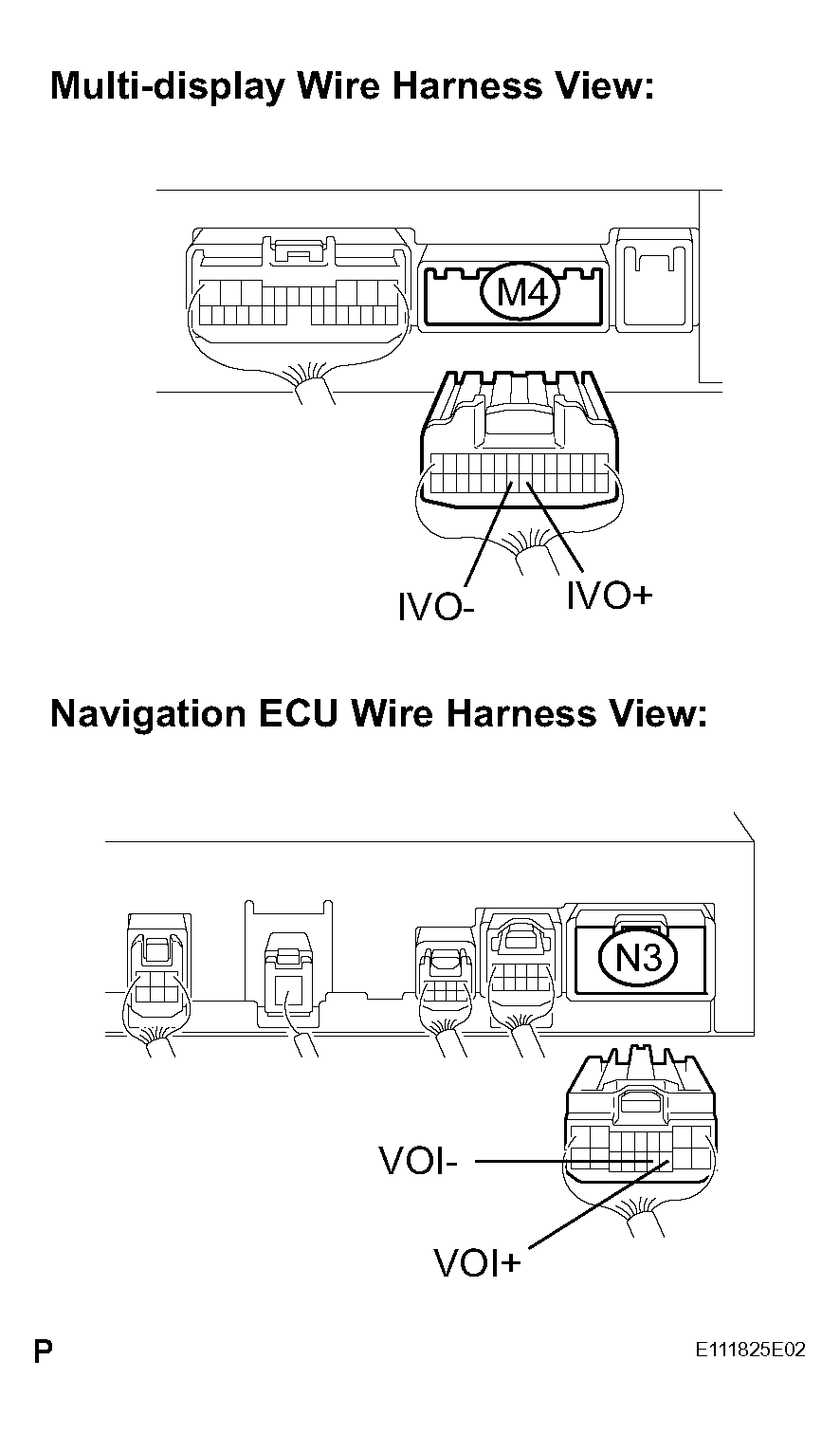

Fig 2: Identifying ECU Connector N3 And Multi-Display Connector M4

OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
