Steering Pad Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

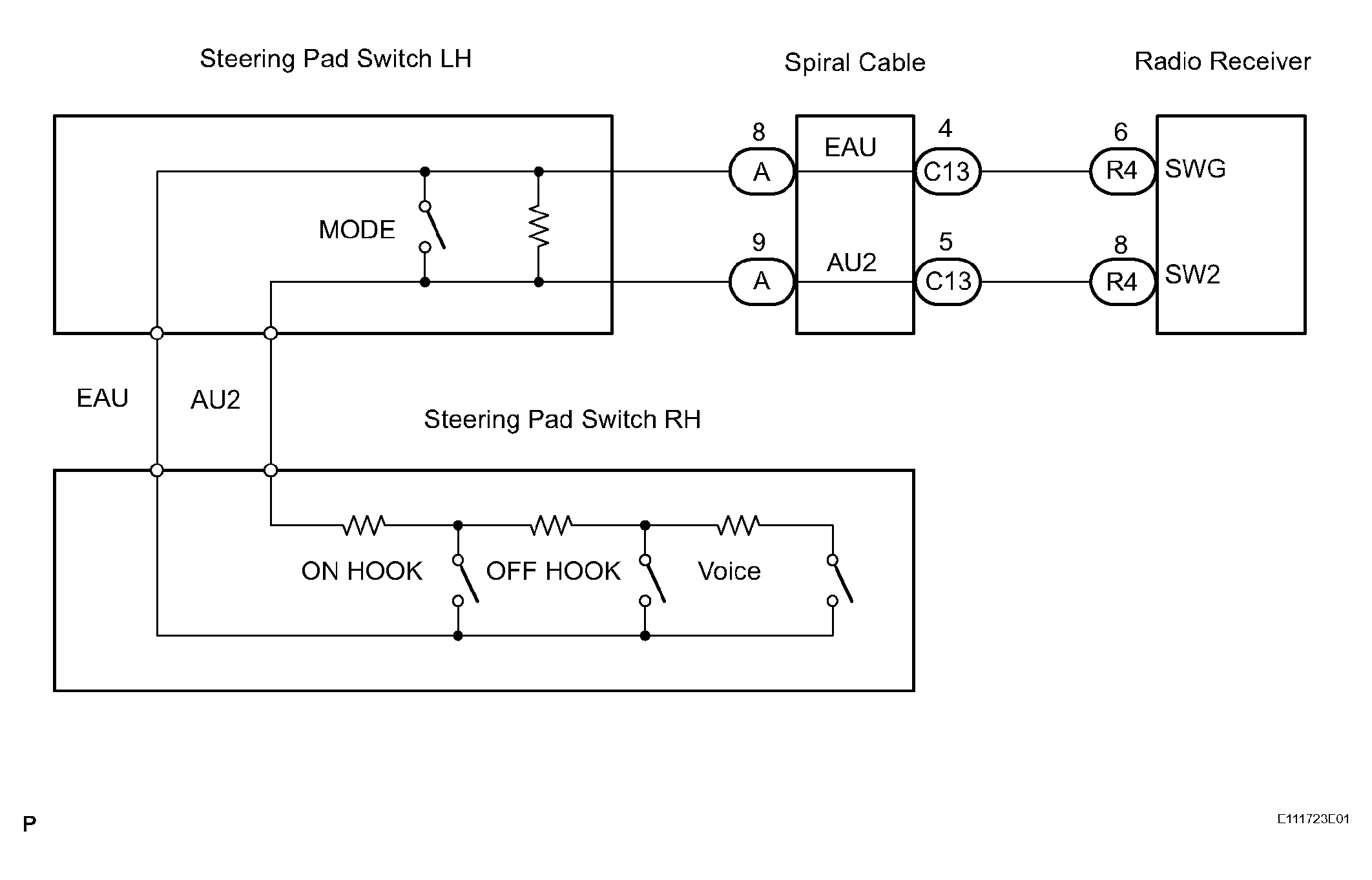

Fig 1: Steering Pad Switch Circuit - Wiring Diagram
G04115838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: The vehicle is equipped with an SRS (Supplemental Restraint System) such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the Supplemental Restraint System (See AIRBAG SYSTEM ).
  1. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connector R4.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATION

      Tester connection Condition Specified condition
      SW2 - SWG No switch is pushed Approx. 100 kΩ
      SW2 - SWG VOICE switch: push Approx. 3.2 kΩ
      SW2 - SWG ON HOOK switch: push Approx. 0.3 kΩ
      SW2 - SWG OFF HOOK switch: push Approx. 1.0 kΩ

    NG: Go to step 2

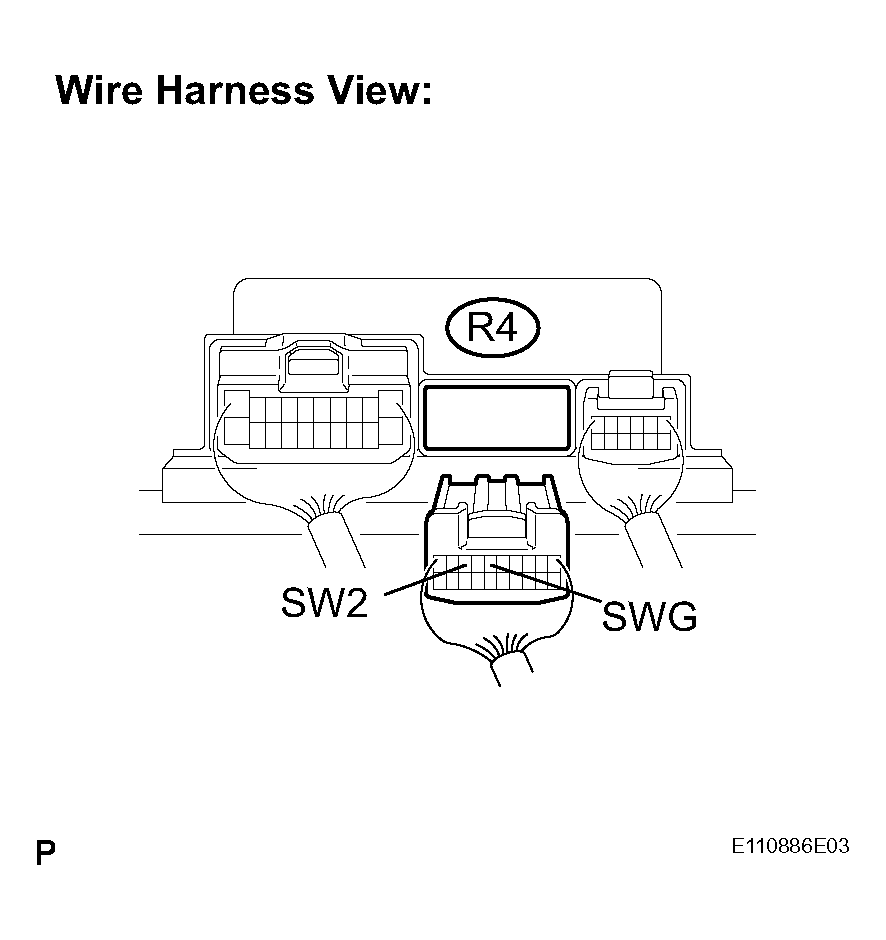

    Fig 2: Identifying Radio Receiver Connector R4
    G04115839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL

  2. INSPECT STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch connector A.

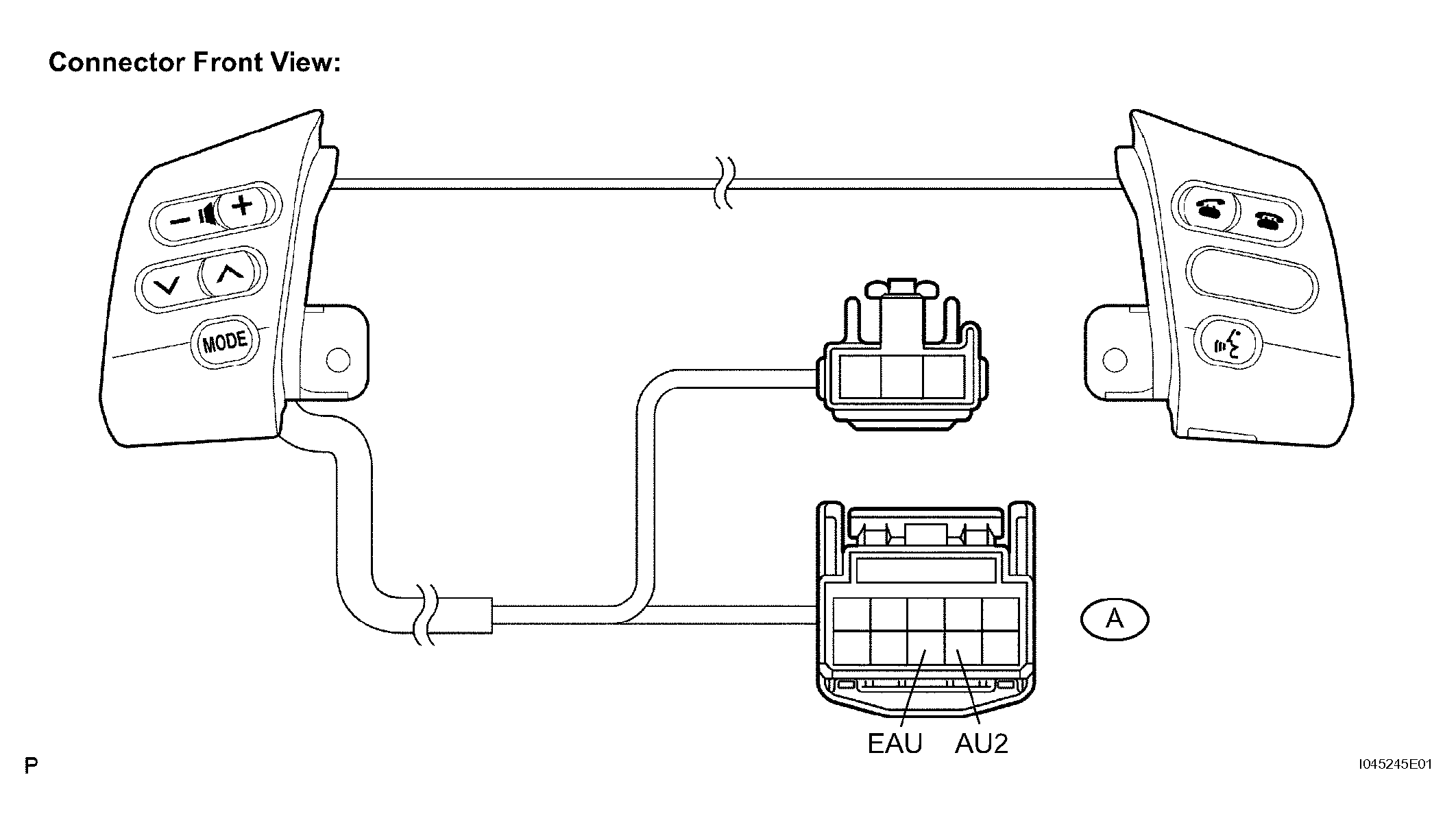

      Fig 3: Inspecting Steering Pad Switch Assembly
      G04115840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATION

      Tester connection Condition Specified condition
      AU2 - EAU No switch is pushed Approx. 100 kΩ
      AU2 - EAU VOICE switch: push Approx. 3.2 kΩ
      AU2 - EAU ON HOOK switch: push Approx. 0.3 kΩ
      AU2 - EAU OFF HOOK switch: push Approx. 1.0 kΩ

    NG: REPLACE STEERING PAD SWITCH ASSEMBLY

    OK: GO TO NEXT STEP.

  3. INSPECT SPIRAL CABLE
    1. Disconnect the steering pad switch and spiral cable connectors.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATION

      Tester connection Condition Specified condition
      EAU - EAU Always Below 1 Ω
      AU2 - AU2 Always Below 1 Ω

    NG: REPLACE SPIRAL CABLE

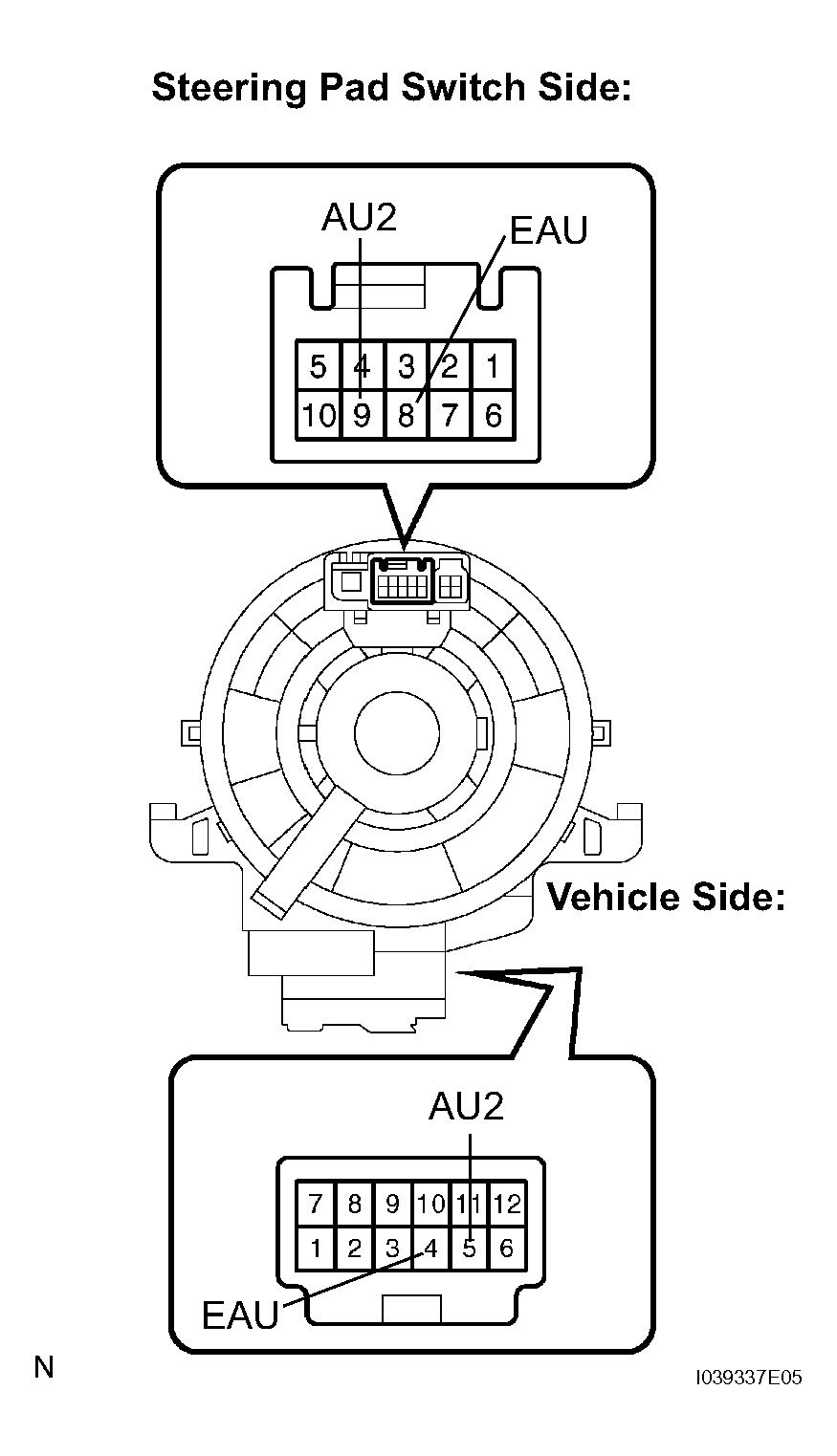

    Fig 4: Identifying Steering Pad Switch Connector
    G04115841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE - RADIO RECEIVER)
