Oil Cooler Assembly: Components

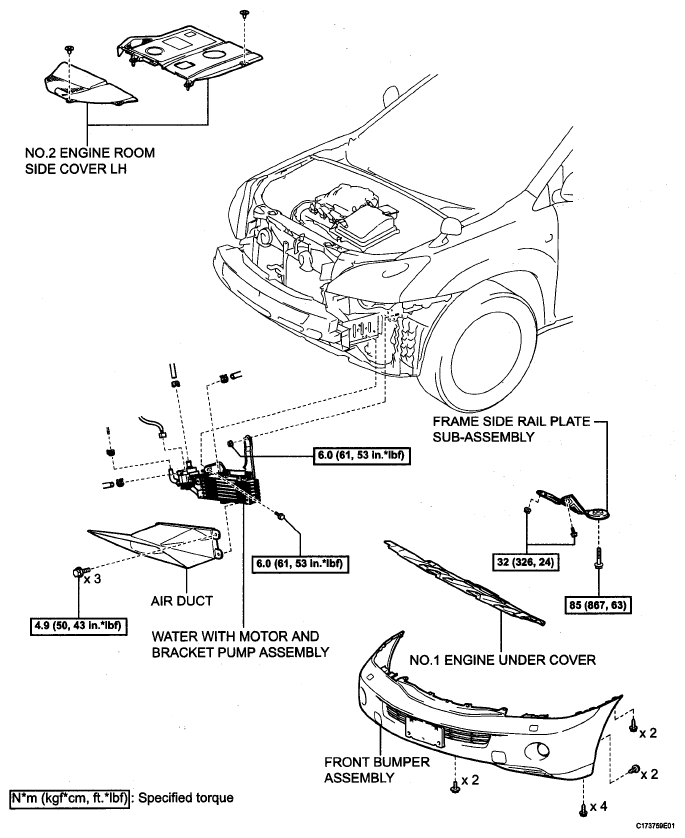

Fig 1: Identifying Oil Cooler Replacement Components With Torque Specification
G05861258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
