Removal

CRUISE CONTROL: DISTANCE CONTROL ECU:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working. Service Precautions

2. REMOVE FRONT DOOR SCUFF LH PLATE Removal

3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Removal

4. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY Removal

5. REMOVE DISTANCE CONTROL ECU ASSEMBLY WITH SKID CONTROL BUZZER ASSEMBLY

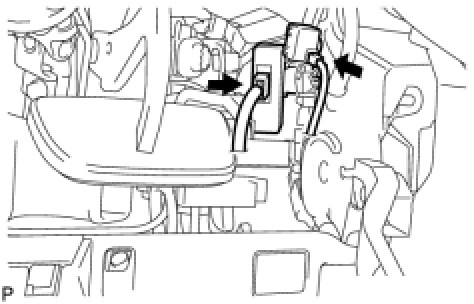

(a) Disconnect the 2 connectors.

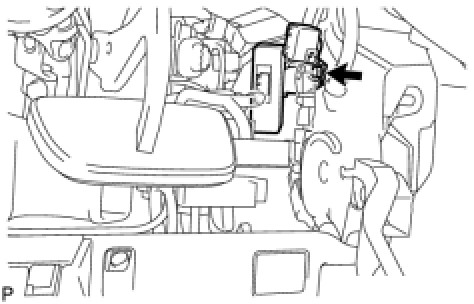

(b) Remove the bolt and distance control ECU assembly with skid control buzzer assembly.
6. REMOVE SKID CONTROL BUZZER ASSEMBLY

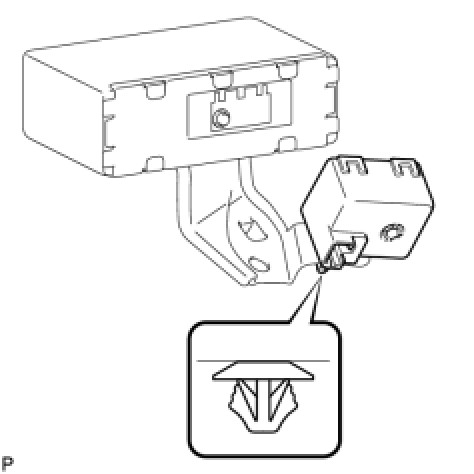

(a) Disengage the clamp and remove the skid control buzzer assembly from the distance control ECU assembly.
