Hybrid System: Notes

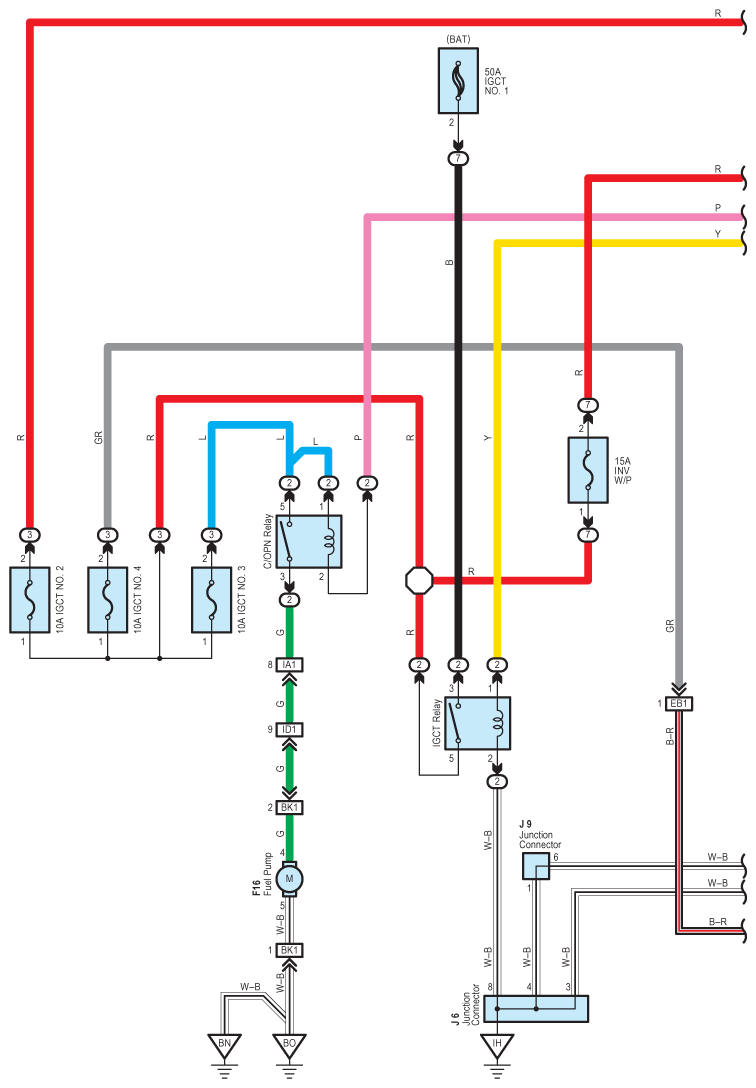

Fig 1: Hybrid System - Circuit Diagram (1 Of 25)

G07609776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

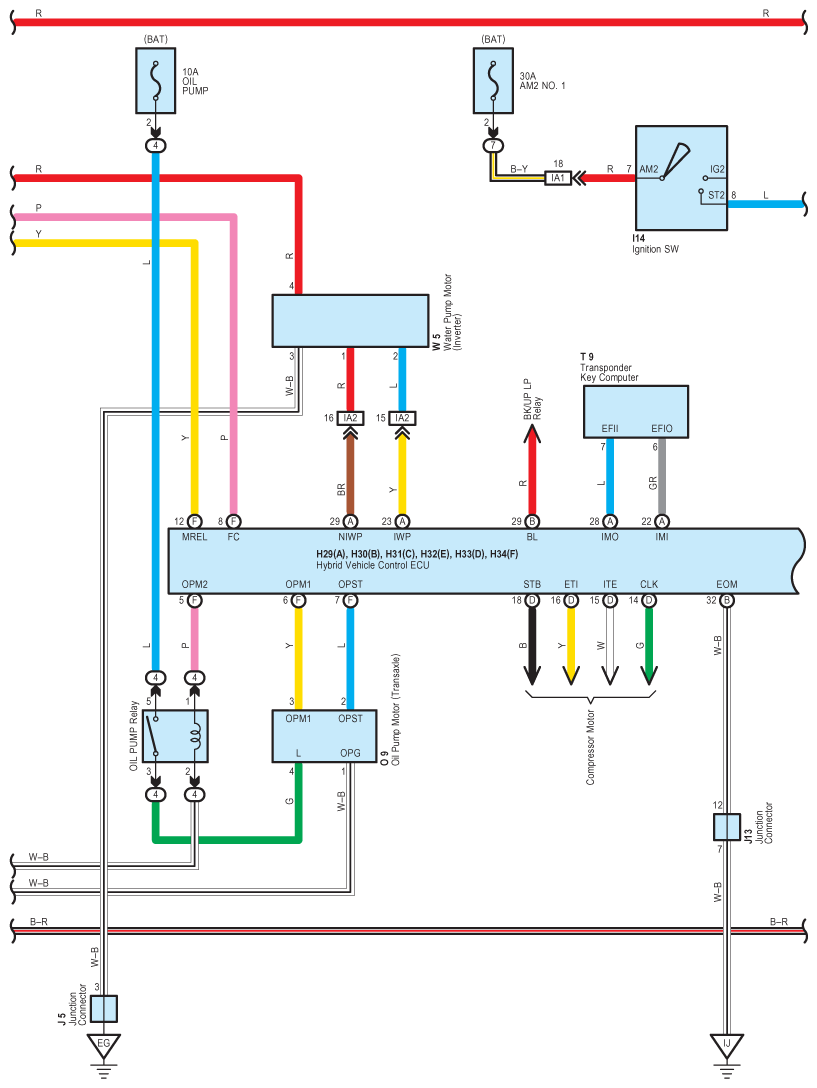

Fig 2: Hybrid System - Circuit Diagram (2 Of 25)

G07609777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

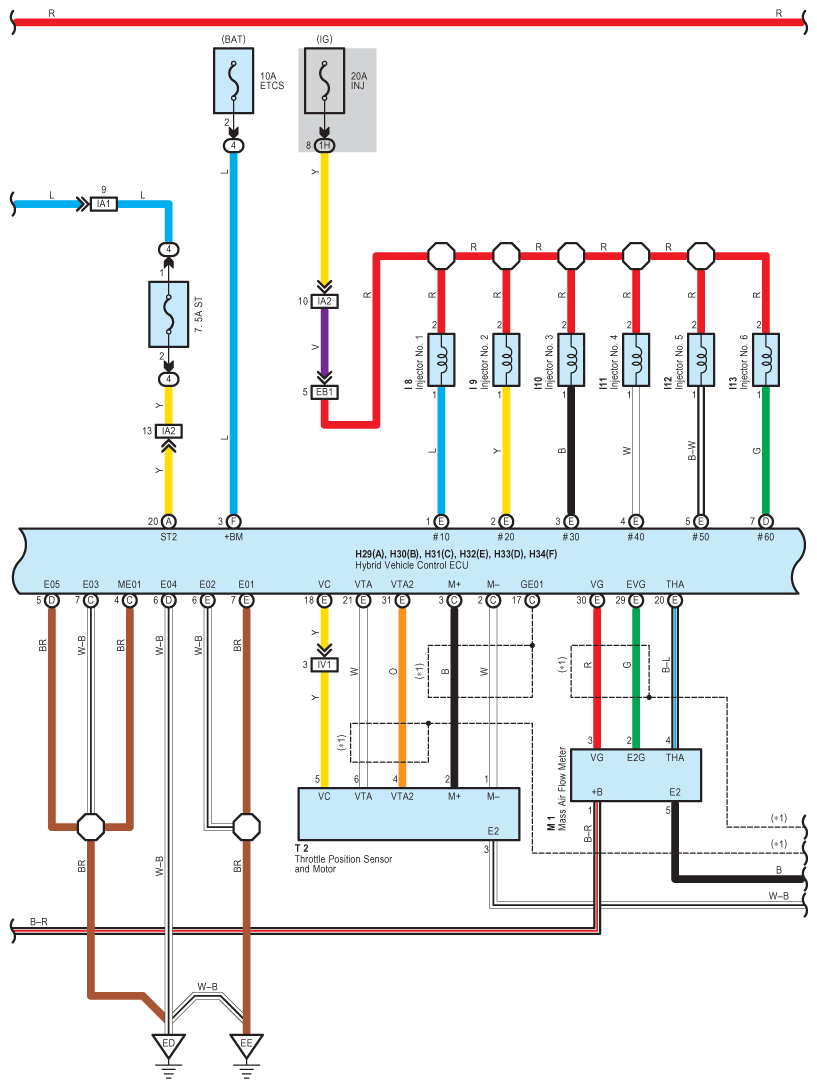

Fig 3: Hybrid System - Circuit Diagram (3 Of 25)

G07609778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

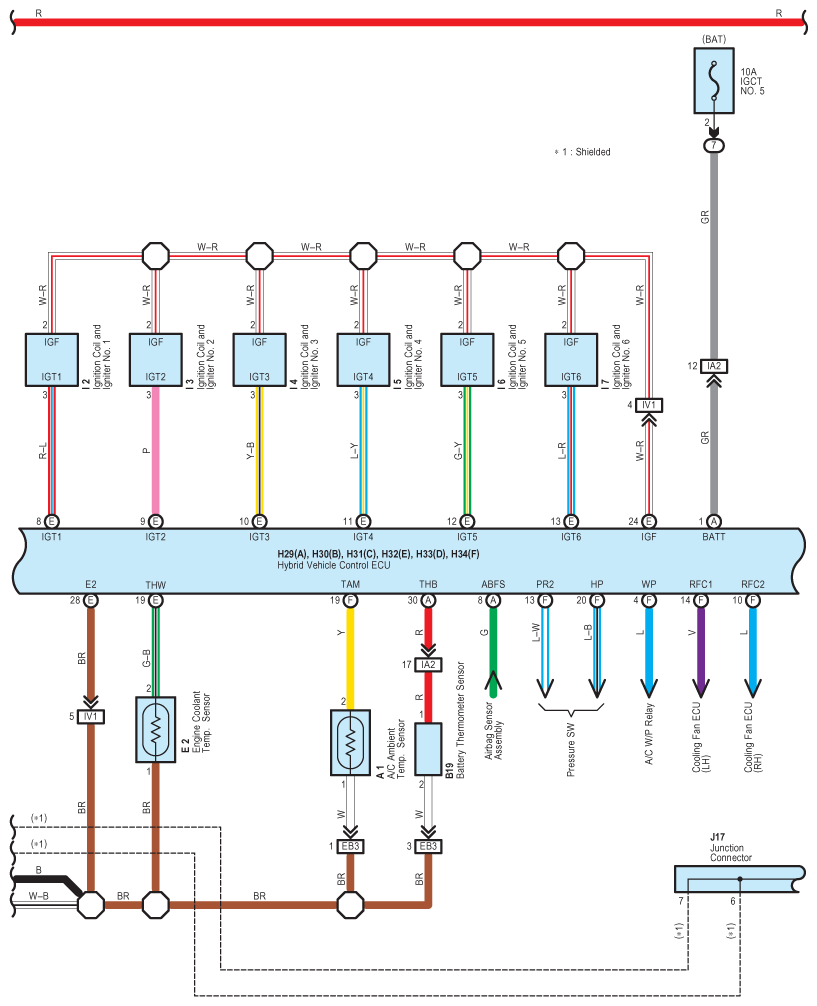

Fig 4: Hybrid System - Circuit Diagram (4 Of 25)

G07609779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

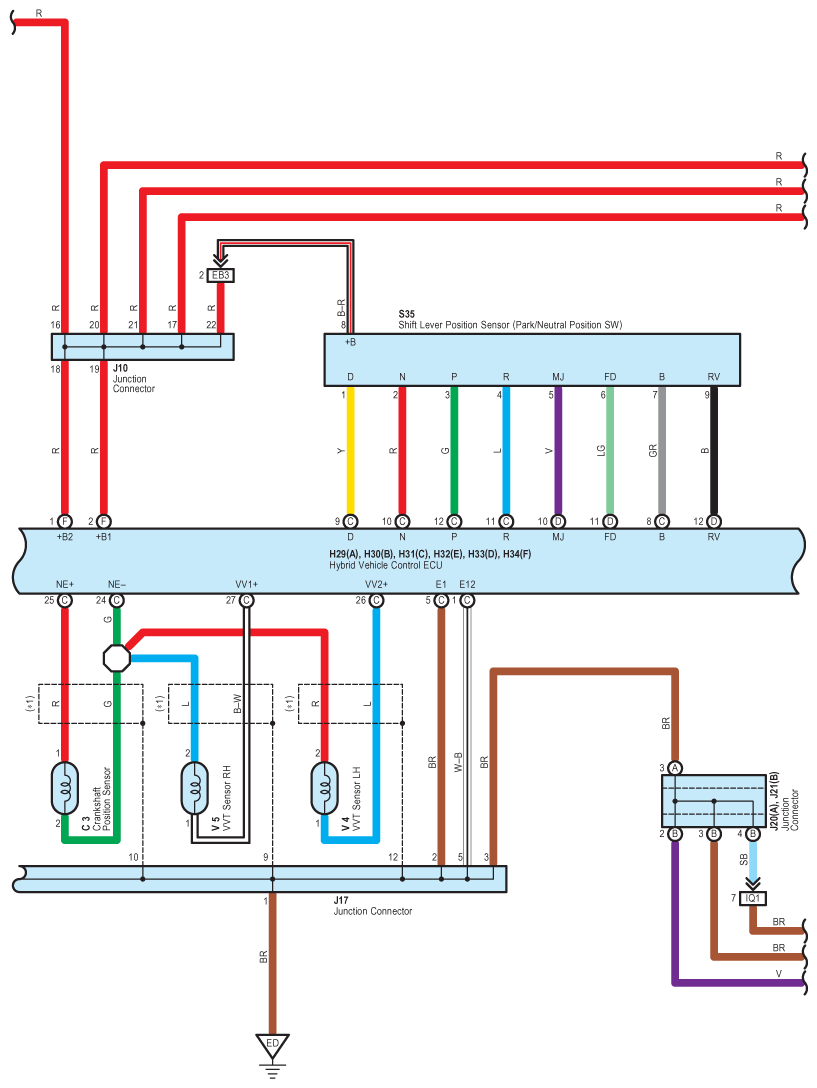

Fig 5: Hybrid System - Circuit Diagram (5 Of 25)

G07609780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

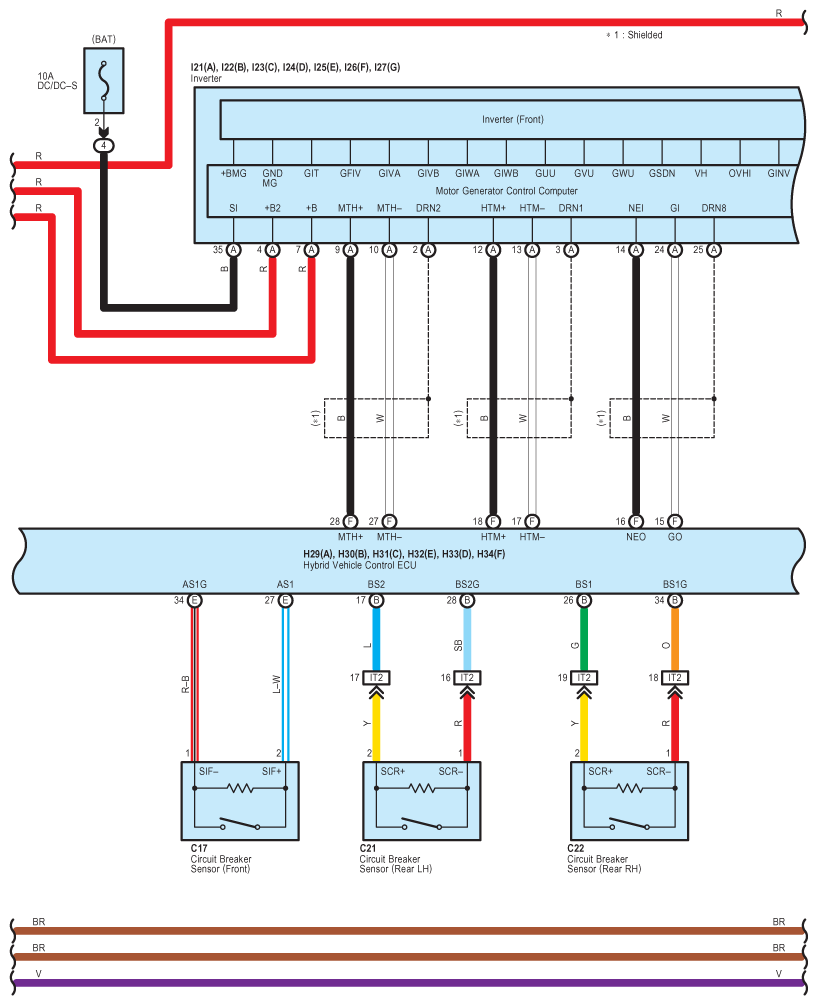

Fig 6: Hybrid System - Circuit Diagram (6 Of 25)

G07609781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

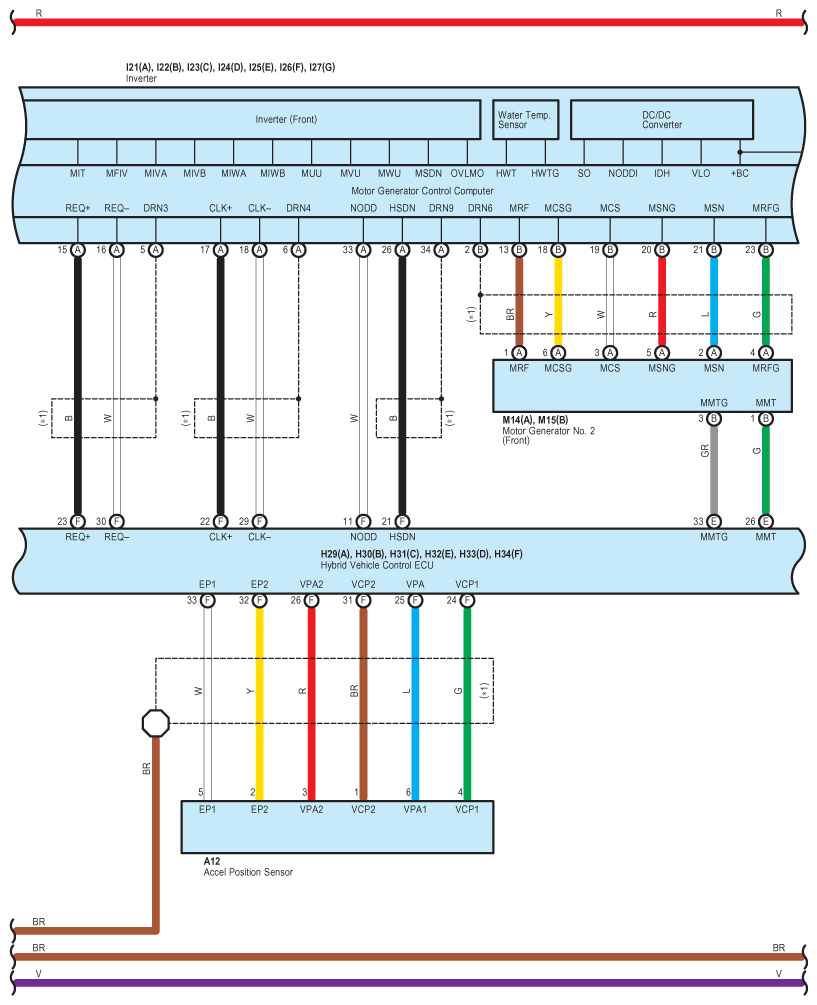

Fig 7: Hybrid System - Circuit Diagram (7 Of 25)

G07609782

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

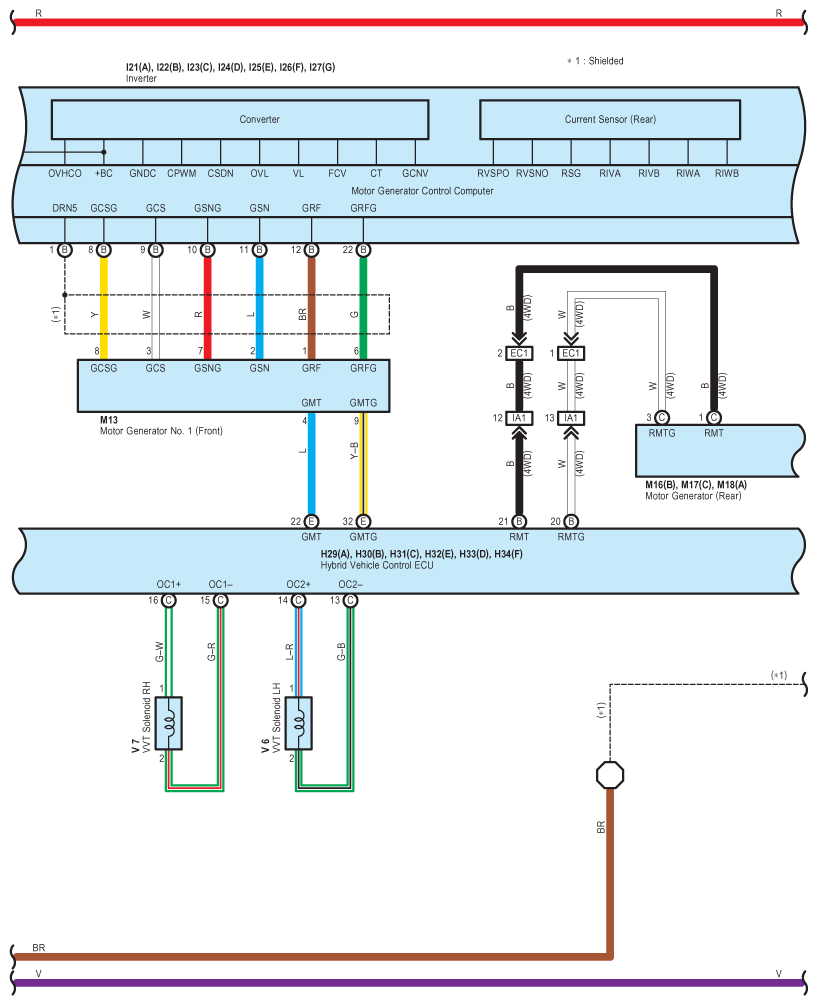

Fig 8: Hybrid System - Circuit Diagram (8 Of 25)

G07609783

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

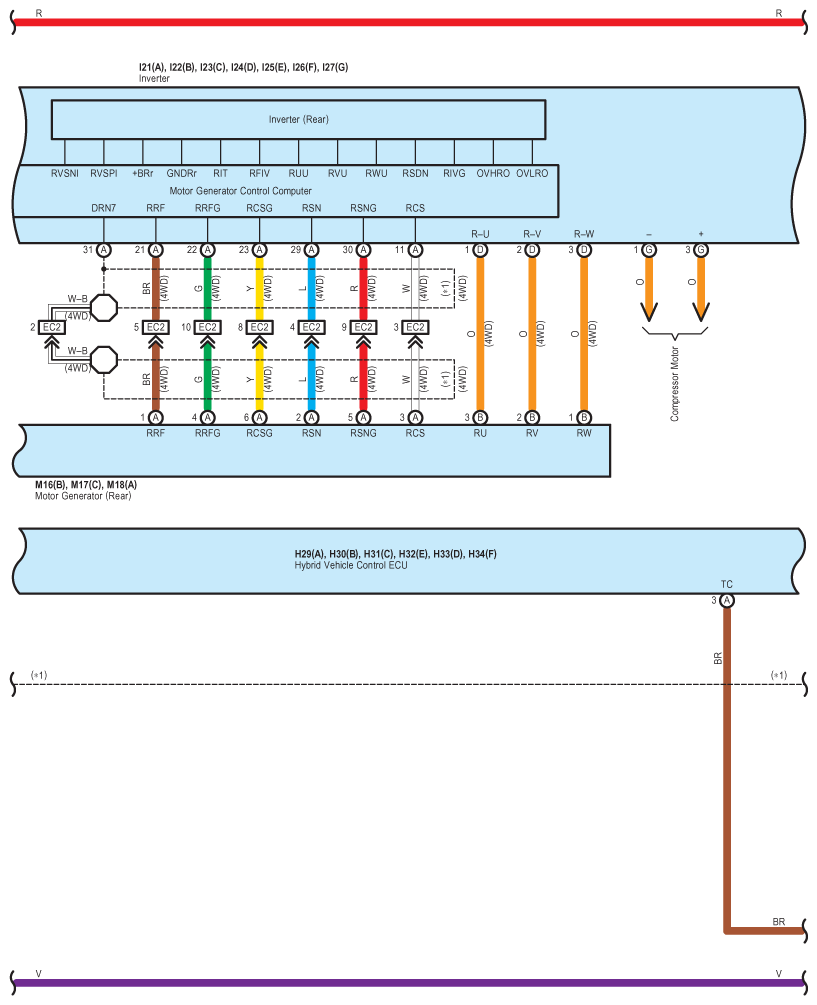

Fig 9: Hybrid System - Circuit Diagram (9 Of 25)

G07609784

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

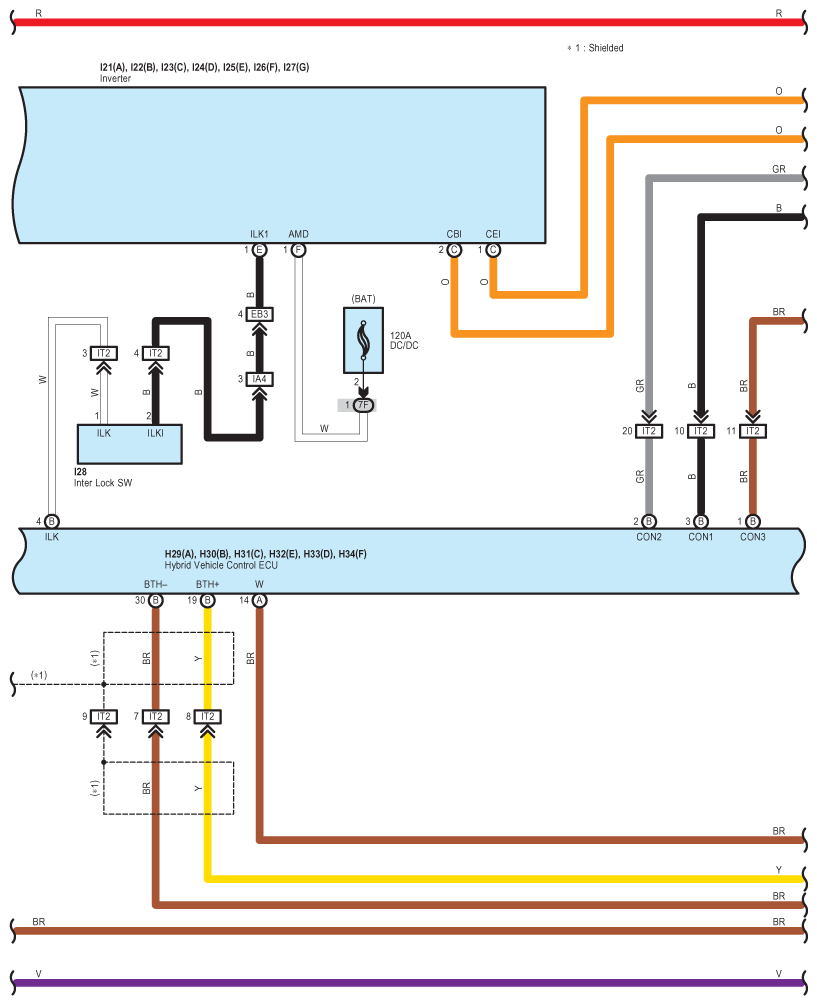

Fig 10: Hybrid System - Circuit Diagram (10 Of 25)

G07609785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

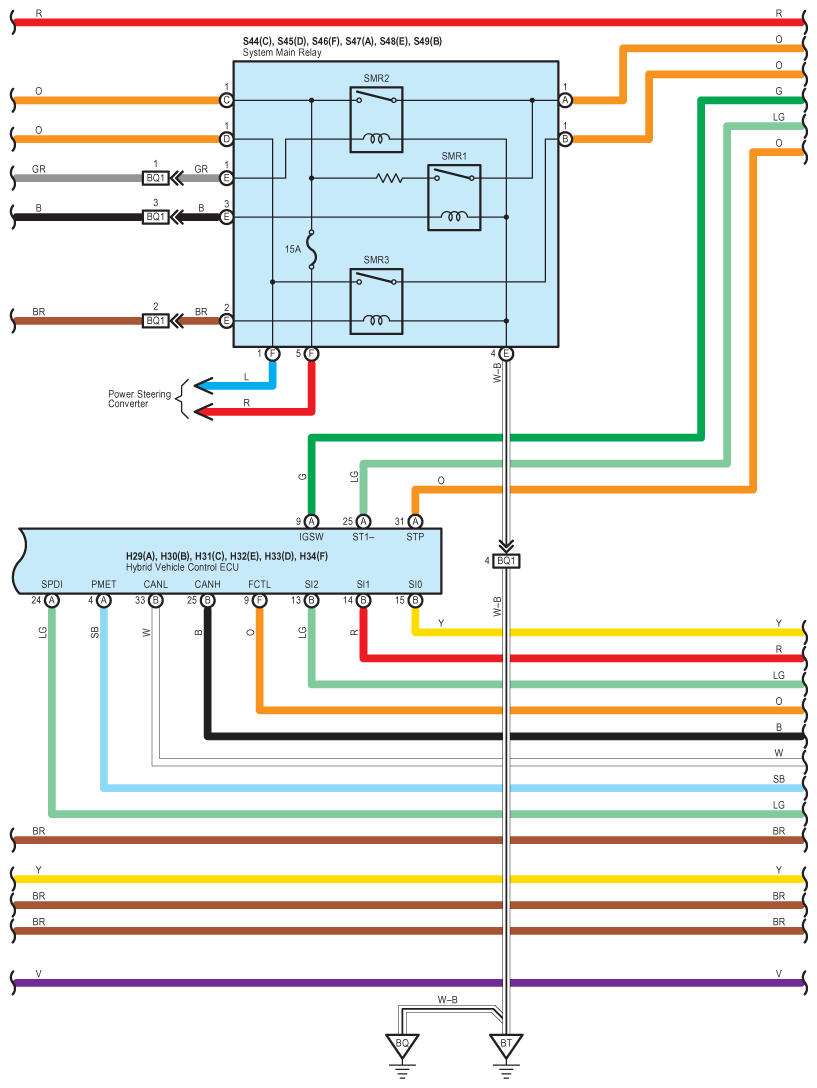

Fig 11: Hybrid System - Circuit Diagram (11 Of 25)

G07609786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

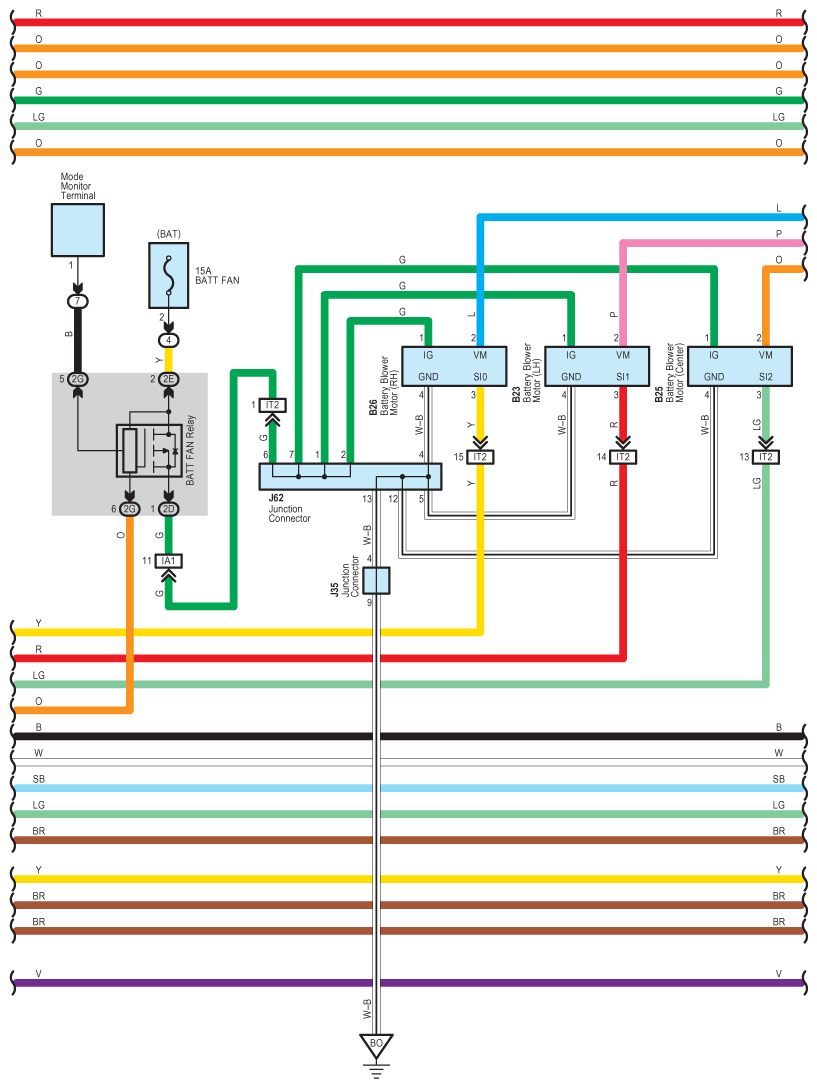

Fig 12: Hybrid System - Circuit Diagram (12 Of 25)

G07609787

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

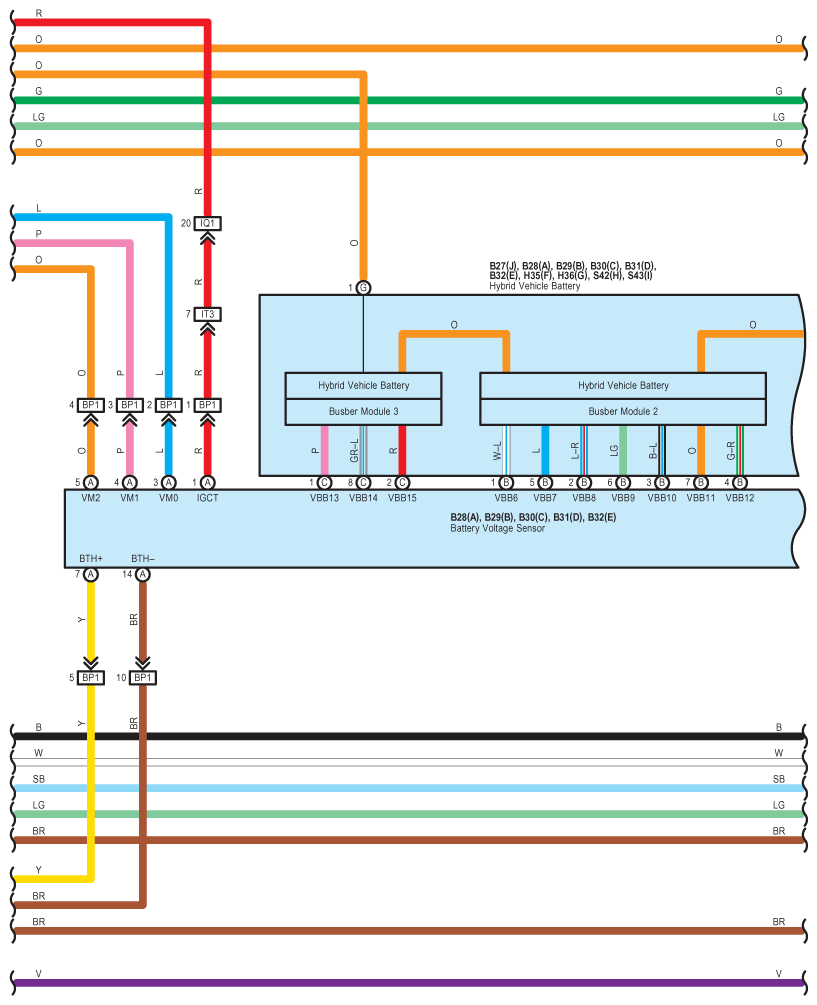

Fig 13: Hybrid System - Circuit Diagram (13 Of 25)

G07609788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

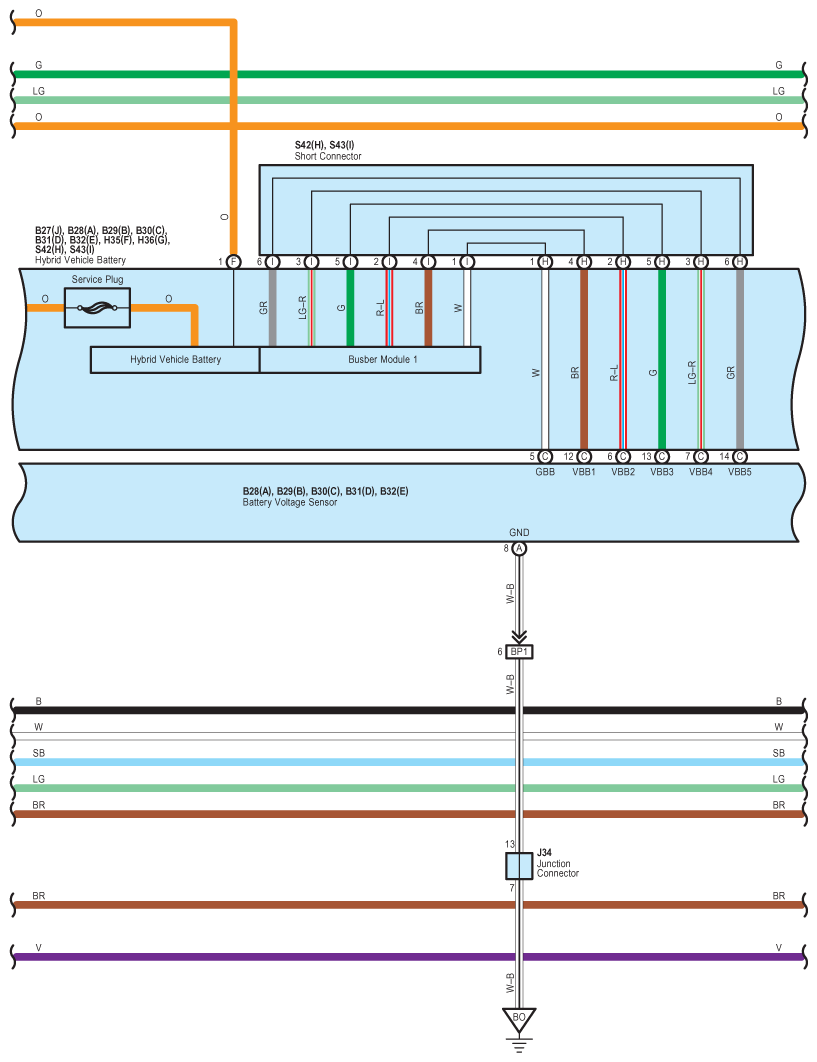

Fig 14: Hybrid System - Circuit Diagram (14 Of 25)

G07609789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

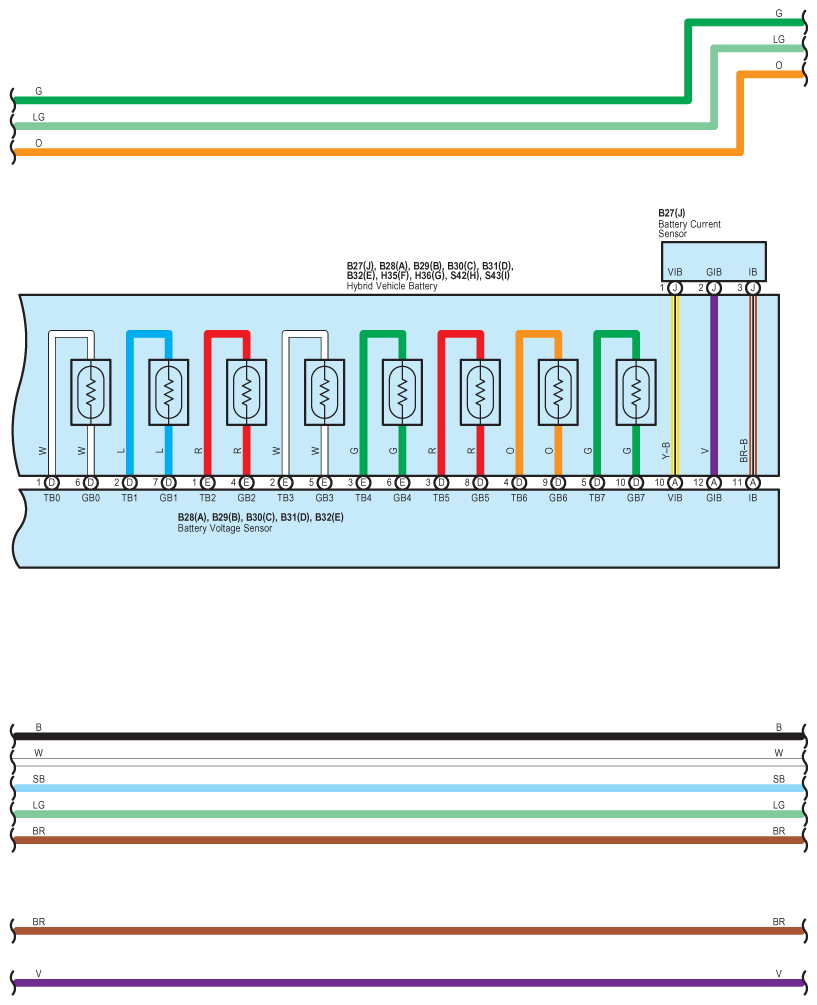

Fig 15: Hybrid System - Circuit Diagram (15 Of 25)

G07609790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

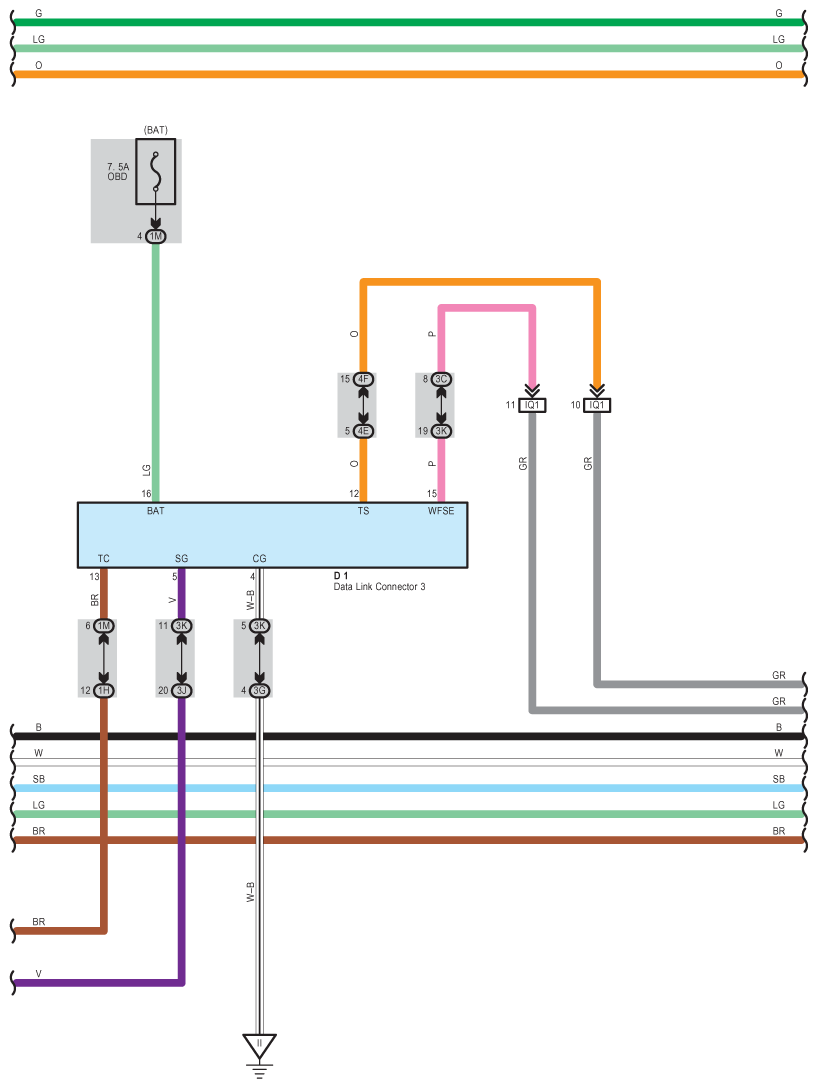

Fig 16: Hybrid System - Circuit Diagram (16 Of 25)

G07609791

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

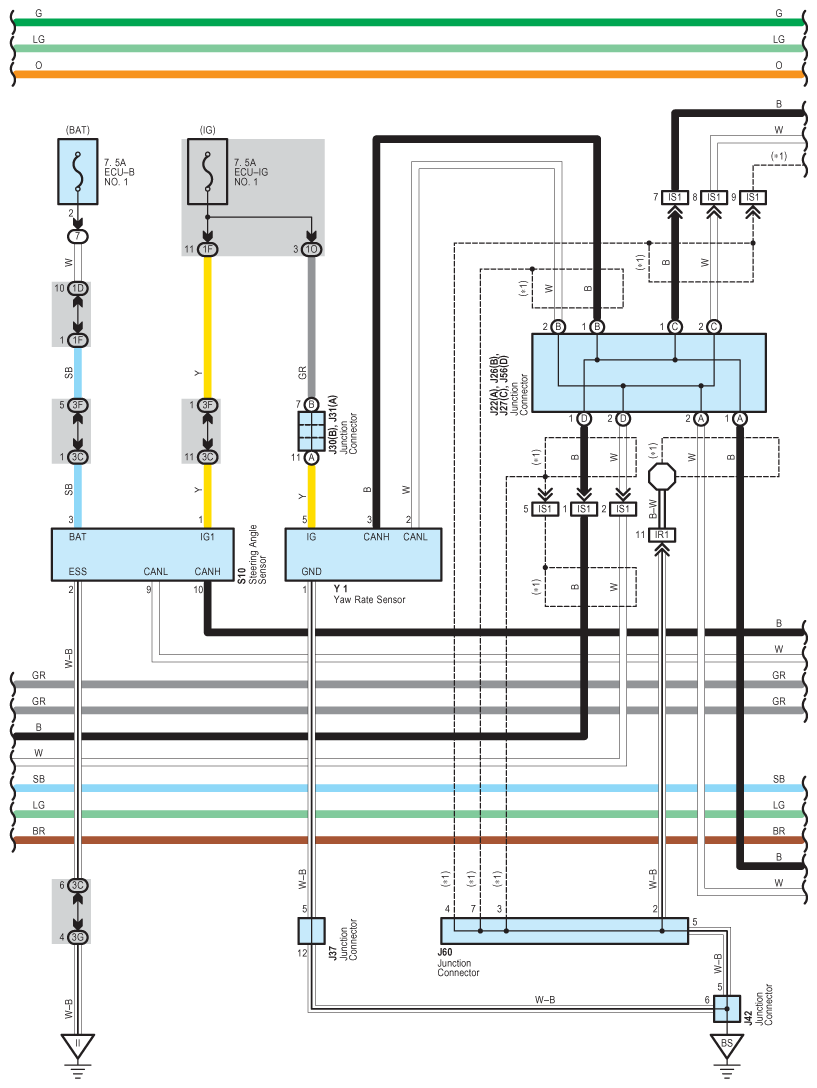

Fig 17: Hybrid System - Circuit Diagram (17 Of 25)

G07609792

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

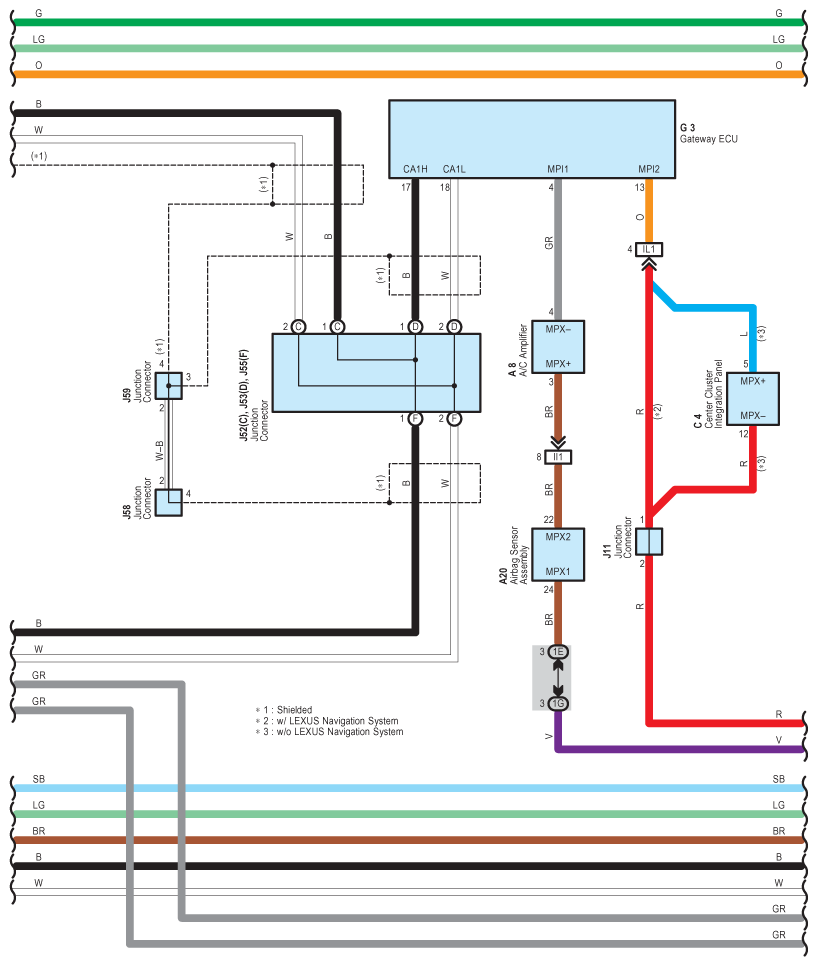

Fig 18: Hybrid System - Circuit Diagram (18 Of 25)

G07609793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

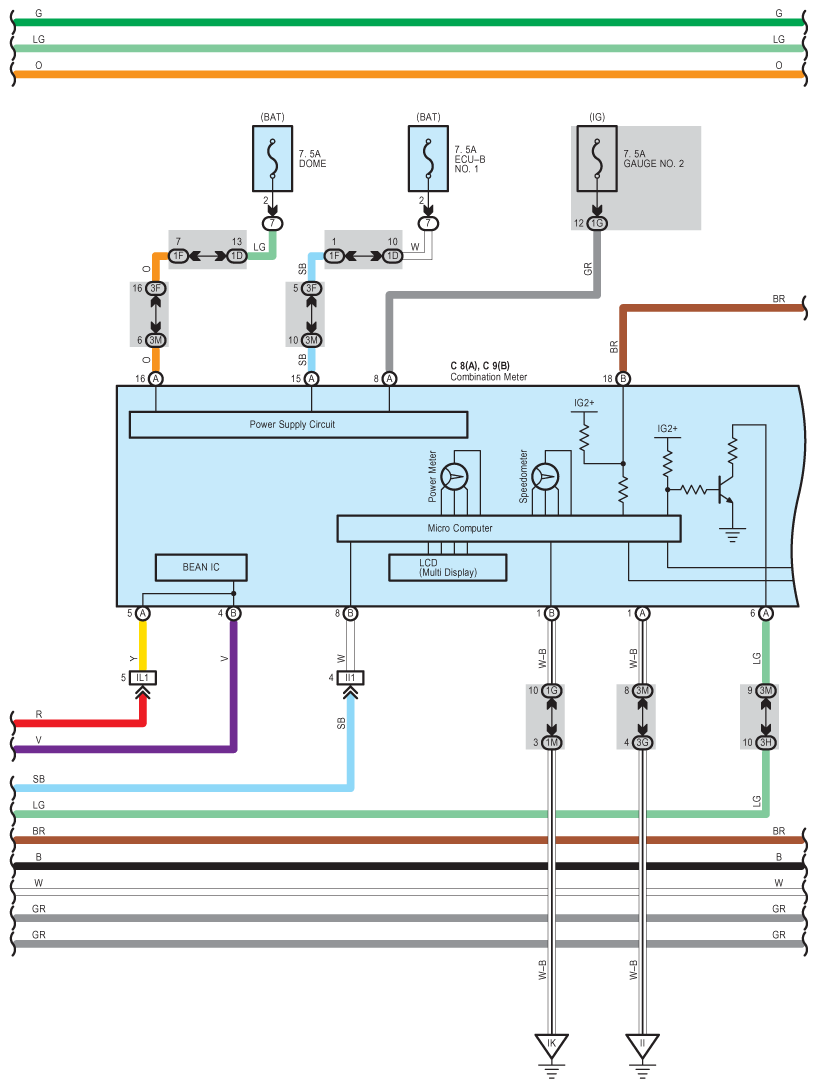

Fig 19: Hybrid System - Circuit Diagram (19 Of 25)

G07609794

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

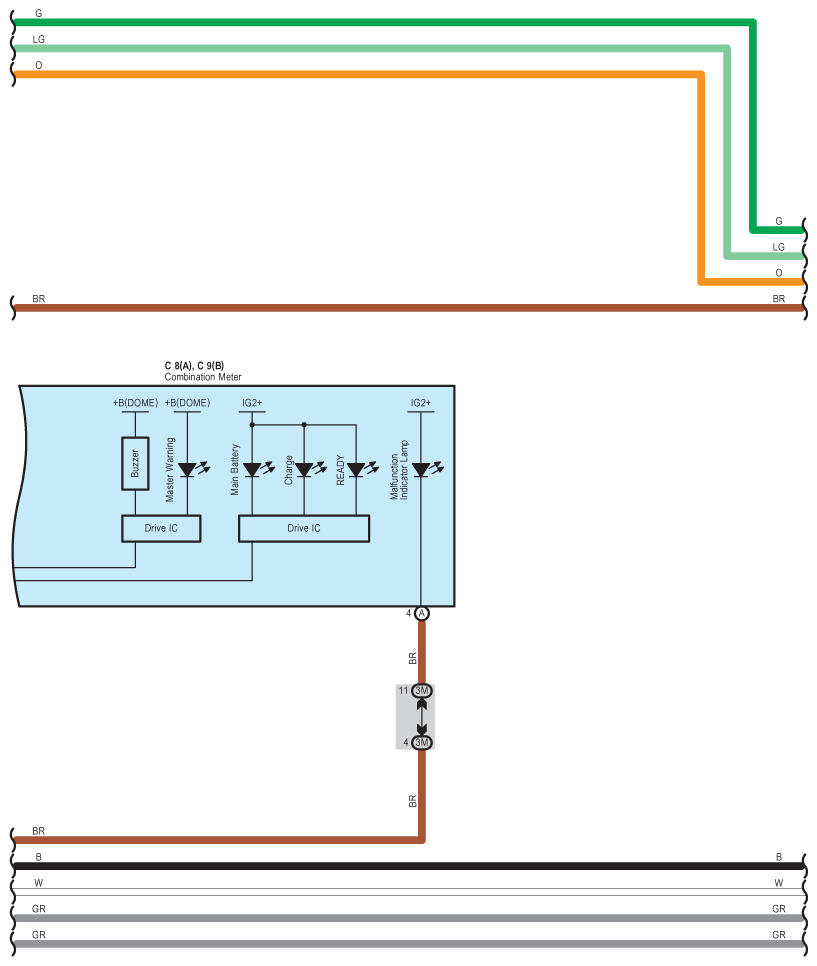

Fig 20: Hybrid System - Circuit Diagram (20 Of 25)

G07609795

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

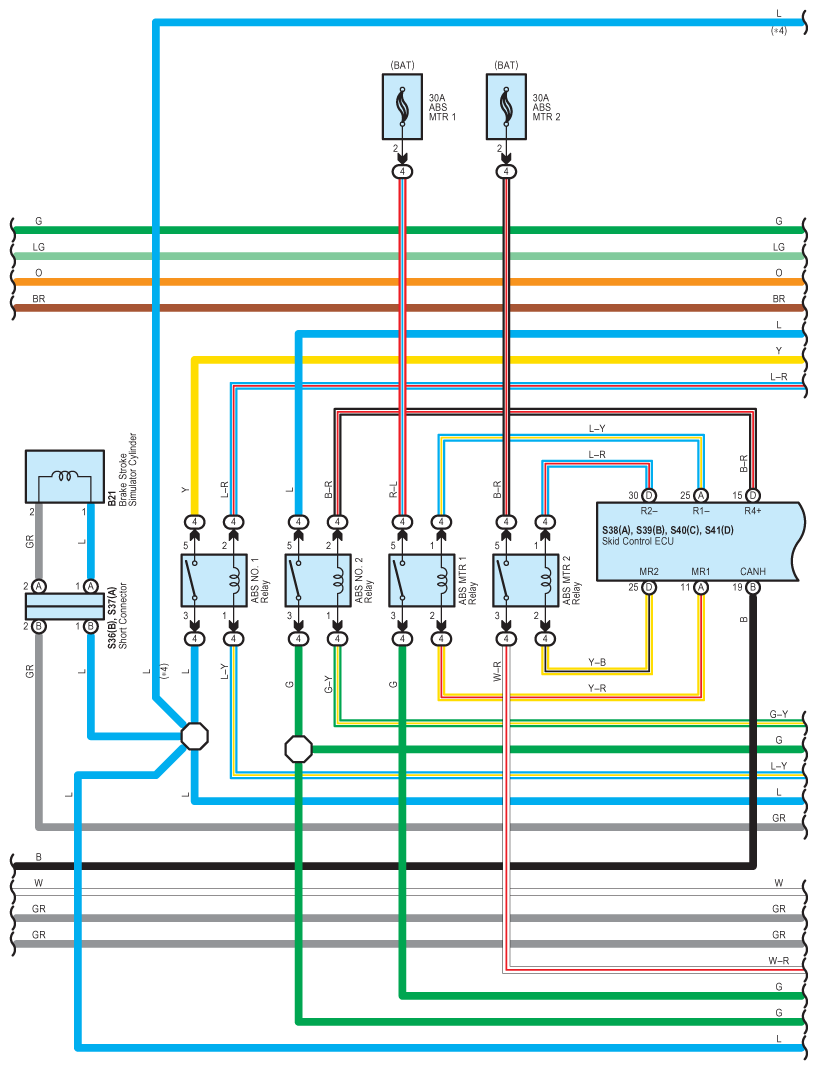

Fig 21: Hybrid System - Circuit Diagram (21 Of 25)

G07609796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

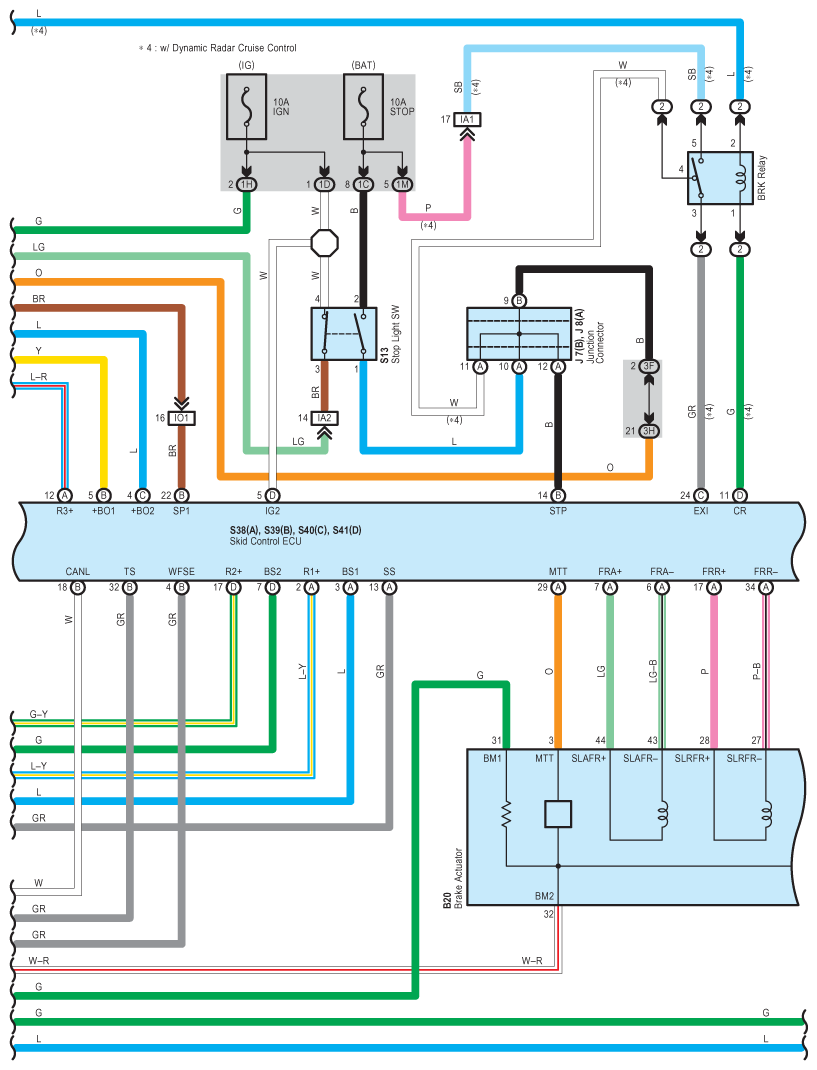

Fig 22: Hybrid System - Circuit Diagram (22 Of 25)

G07609797

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

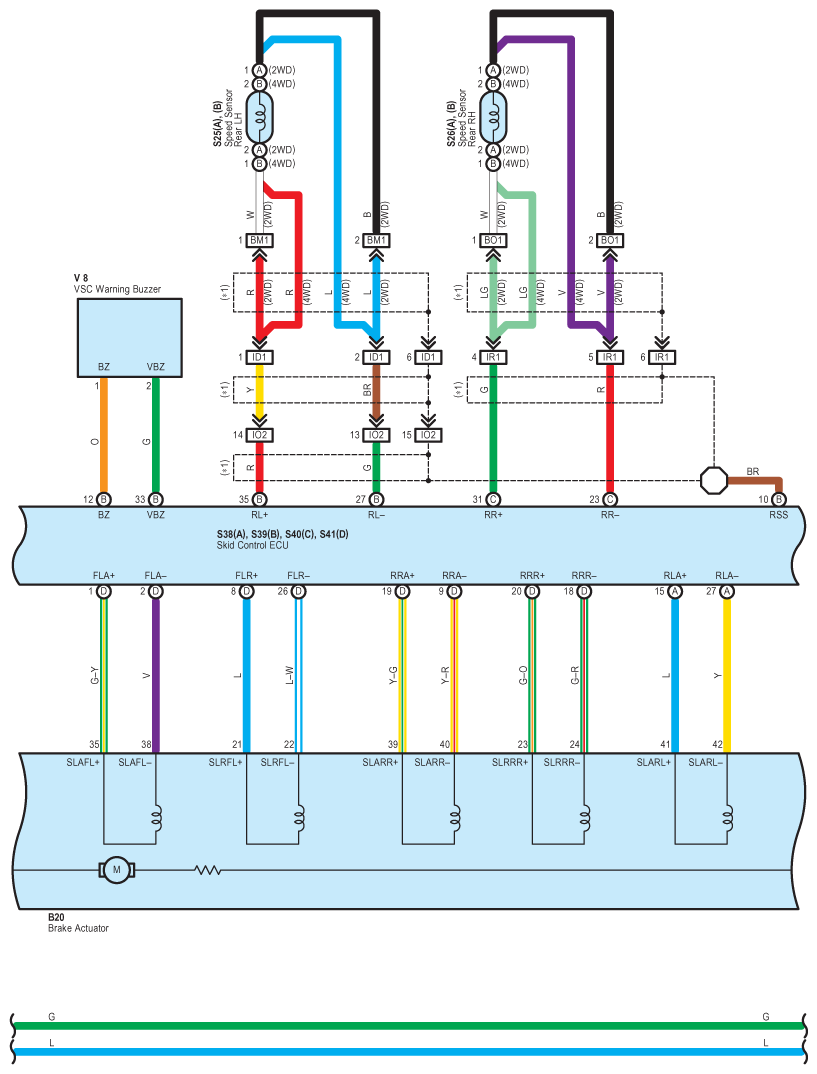

Fig 23: Hybrid System - Circuit Diagram (23 Of 25)

G07609798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

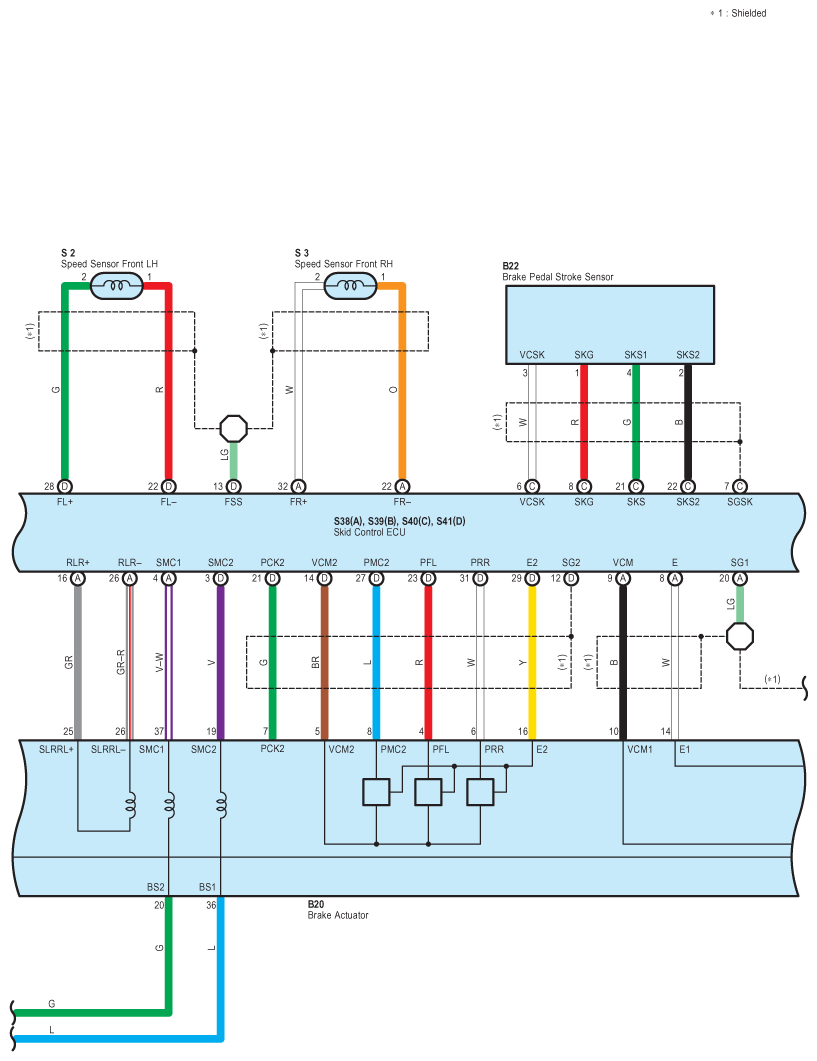

Fig 24: Hybrid System - Circuit Diagram (24 Of 25)

G07609799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

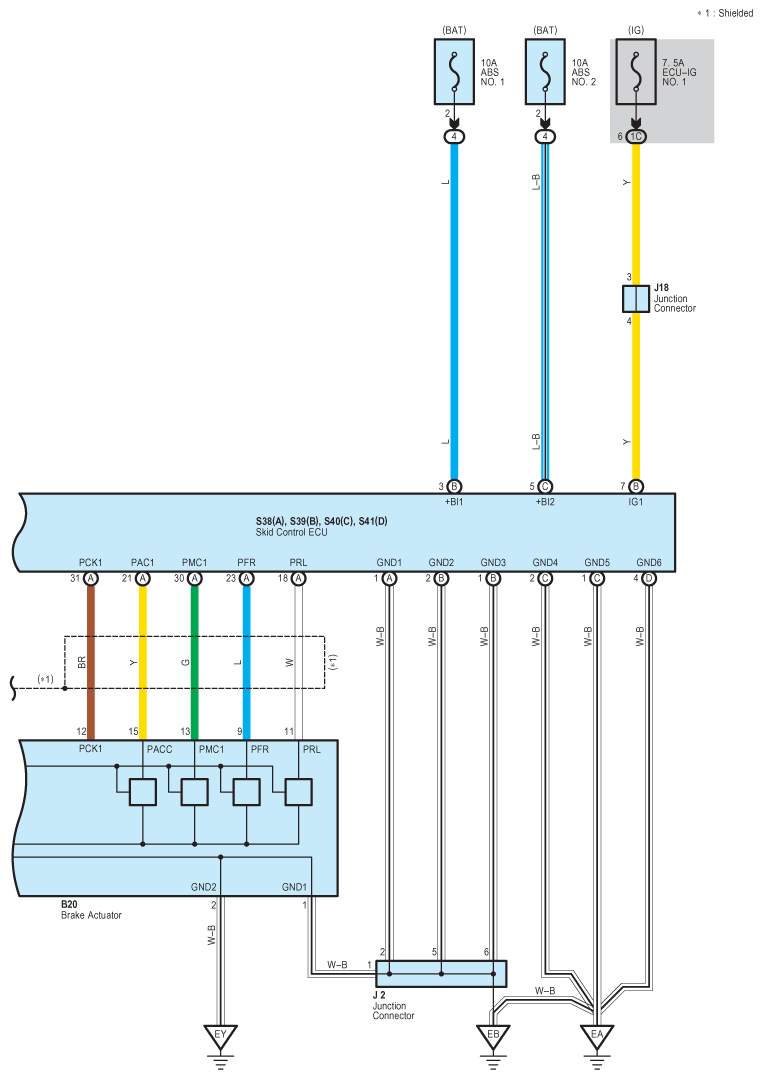

Fig 25: Hybrid System - Circuit Diagram (25 Of 25)

G07609800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
