Installation

NAVIGATION ECU:

INSTALLATION
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

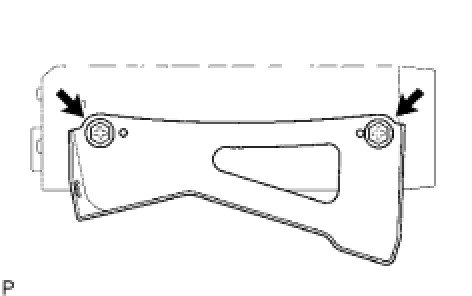

1. INSTALL NO. 2 DISC PLAYER BRACKET
(a) Install the bracket with the 2 screws.

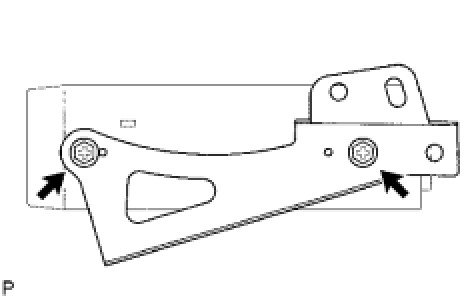

2. INSTALL DISC PLAYER BRACKET
(a) Install the bracket with the 2 screws.

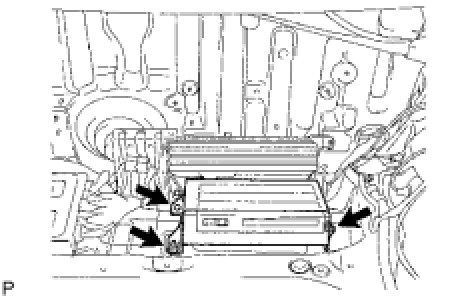

3. INSTALL NAVIGATION ECU
(a) Connect the 3 connector.
(b) Install the ECU with the bolt and 2 nuts.
4. INSTALL LUGGAGE COMPARTMENT TRAY BRACKET FRONT
(a) Install the 2 bracket with the 2 bolts and 2 nuts.
5. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation

6. INSTALL TONNEAU COVER ASSEMBLY Installation

7. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Installation

8. INSTALL TOOL BOX COVER Installation

9. INSTALL SPARE WHEEL COVER ASSEMBLY
10. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH Installation

11. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation

12. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
13. INSTALL REAR FLOOR FINISH PLATE Installation

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
