Engine Mechanical
>>
Mechanical
>>
Engine Mechanical
>>
Engine Unit
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Unit: Components

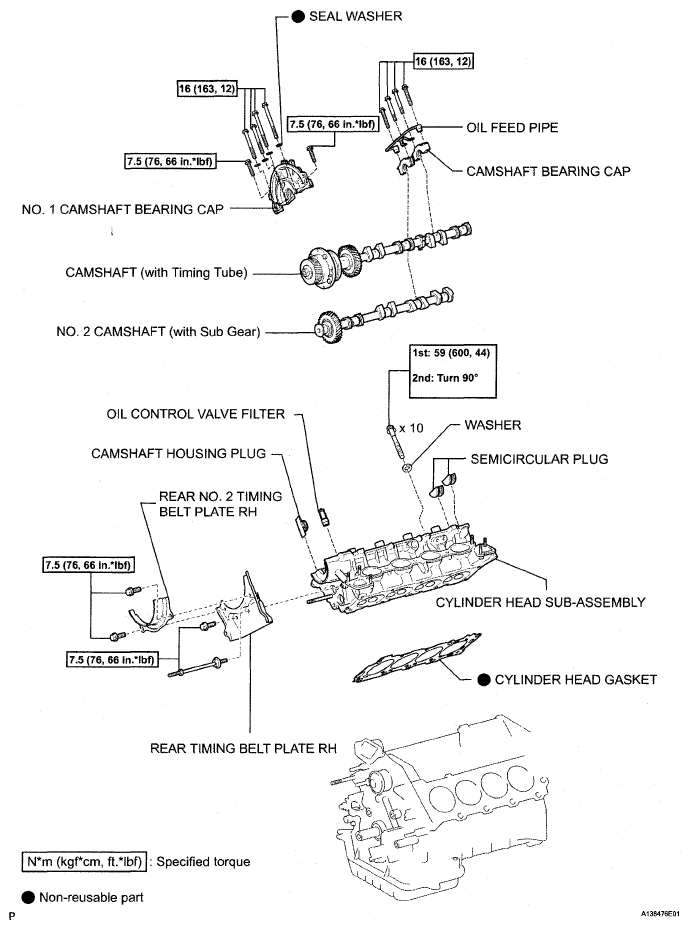

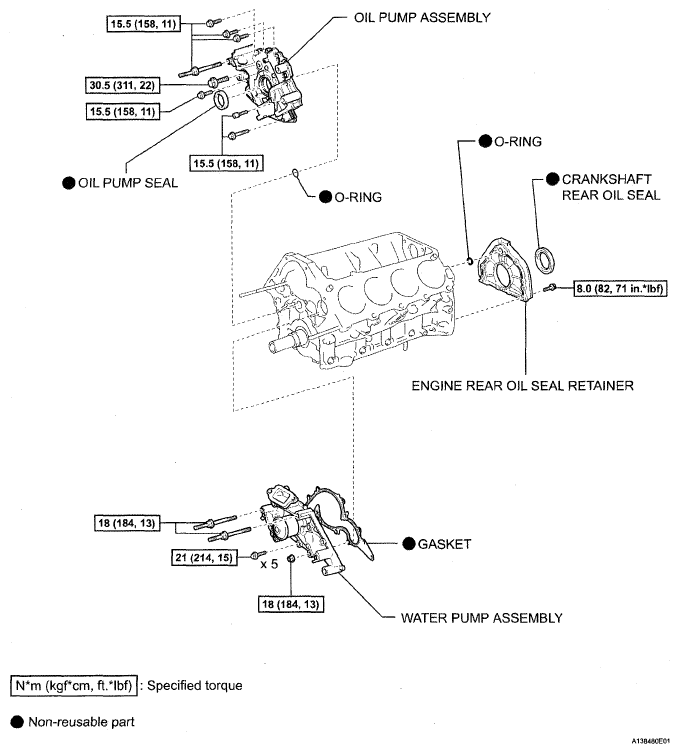

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

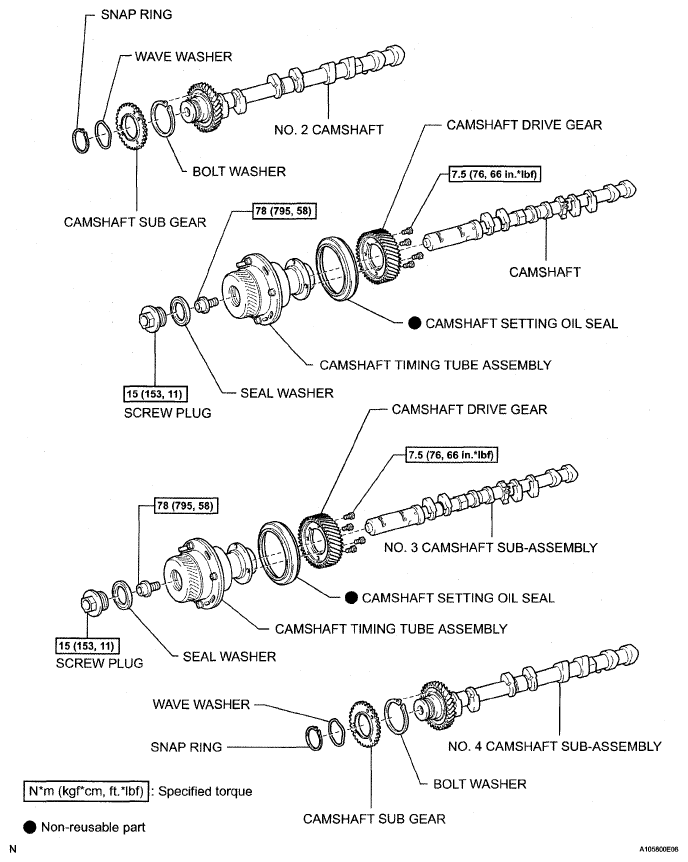

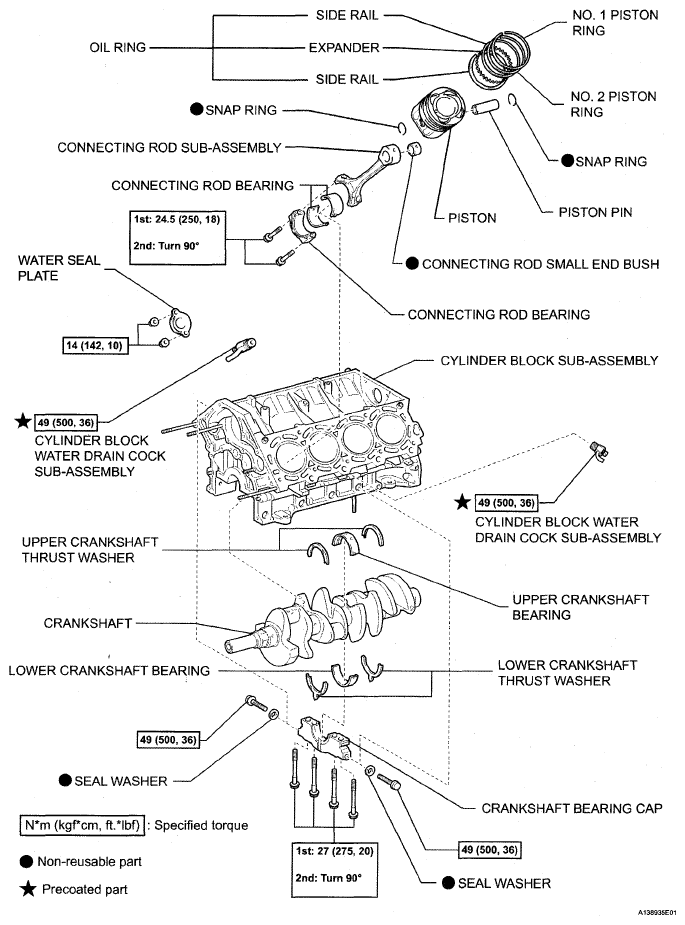

Fig 2: Identifying Engine Unit Replacement Components With Torque Specifications (2 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

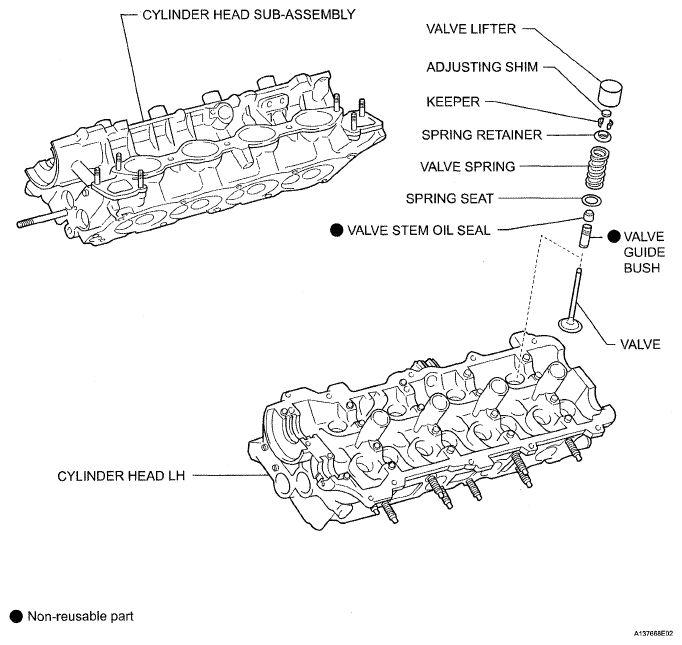

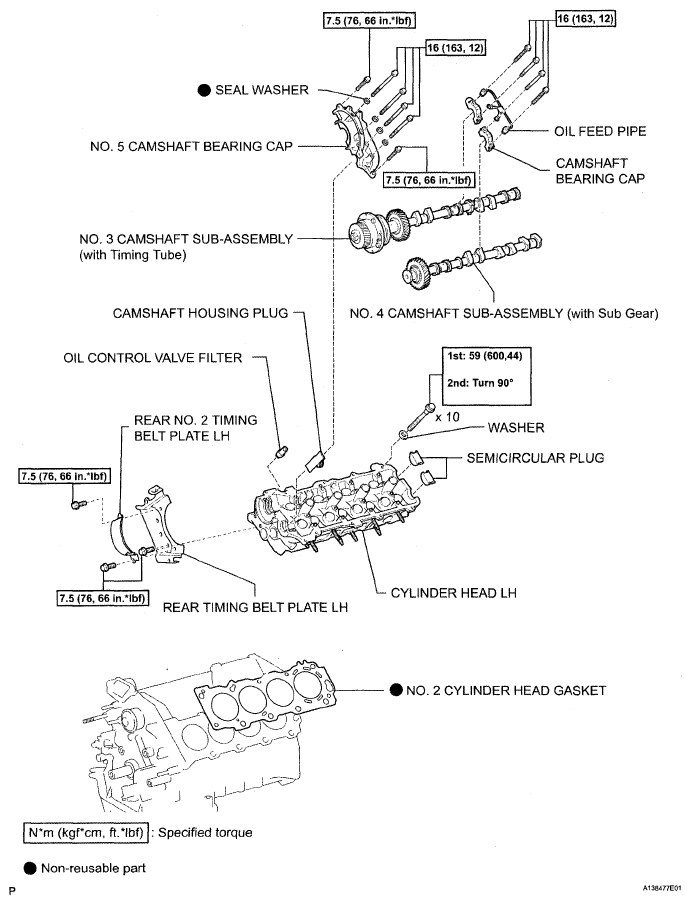

Fig 3: Identifying Engine Unit Replacement Components With Torque Specifications (3 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

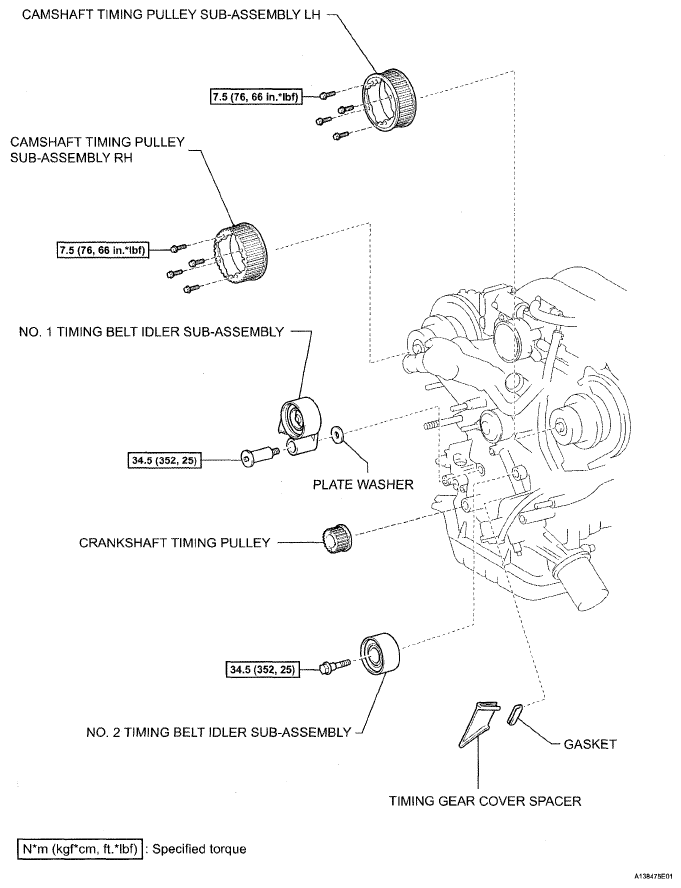

Fig 4: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

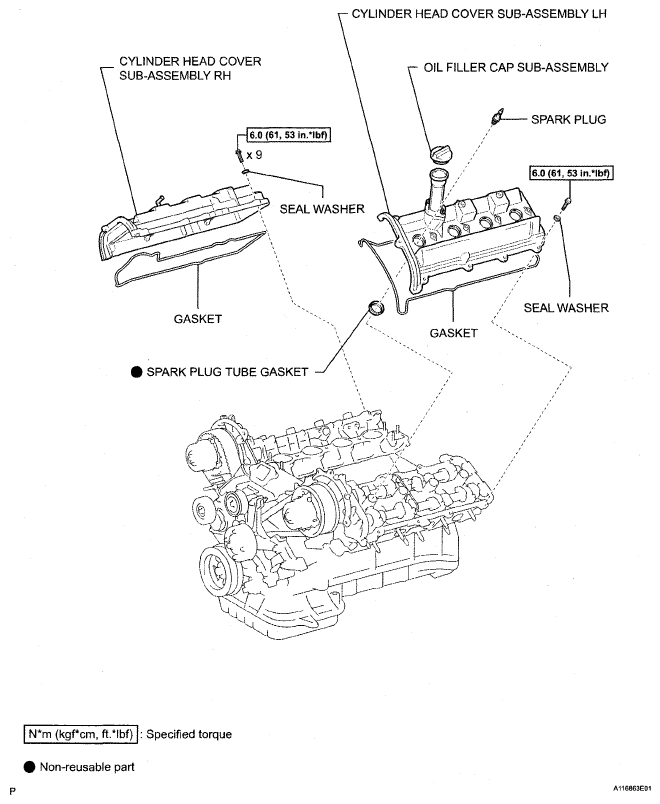

Fig 5: Identifying Engine Unit Replacement Components With Torque Specifications (5 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

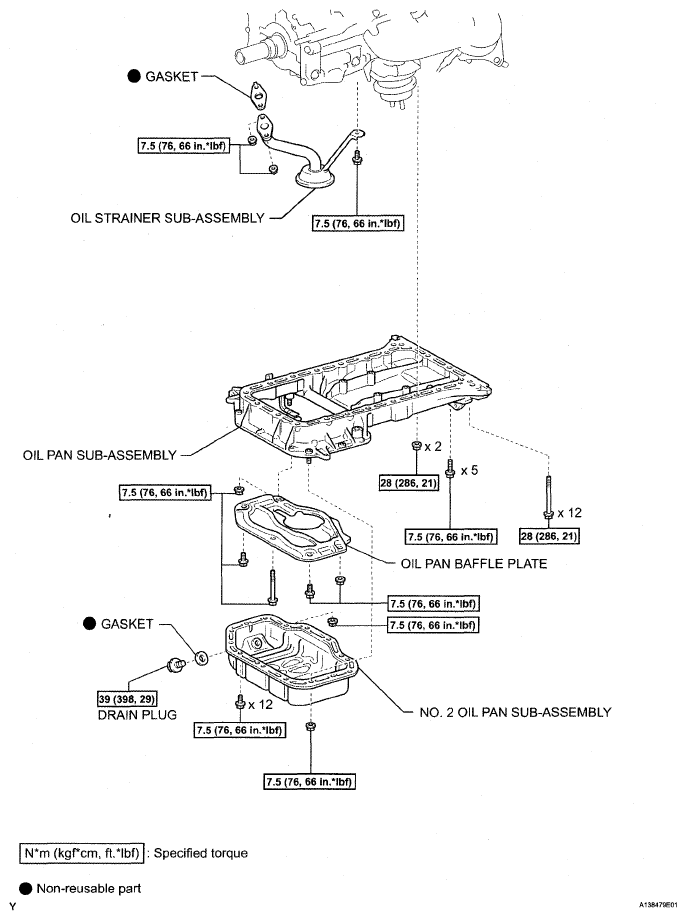

Fig 6: Identifying Engine Unit Replacement Components With Torque Specifications (6 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

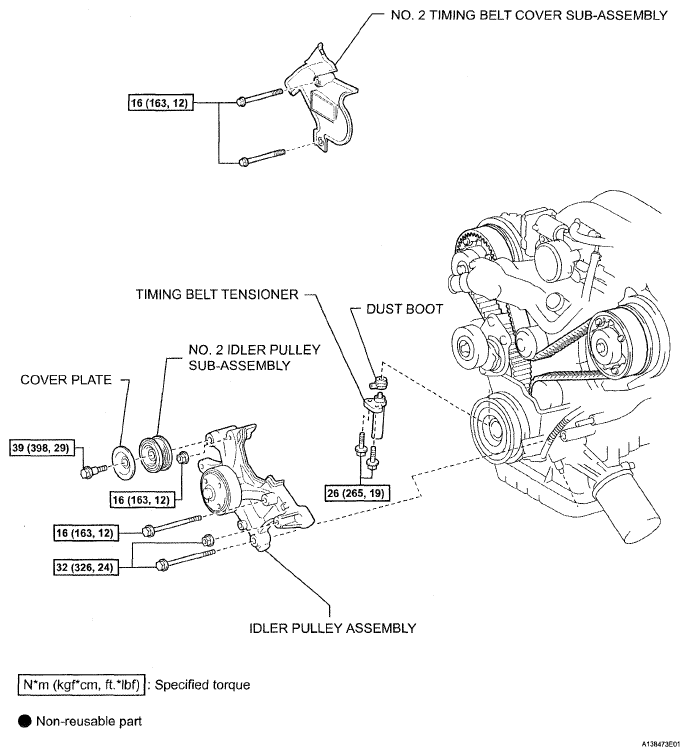

Fig 7: Identifying Engine Unit Replacement Components With Torque Specifications (7 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

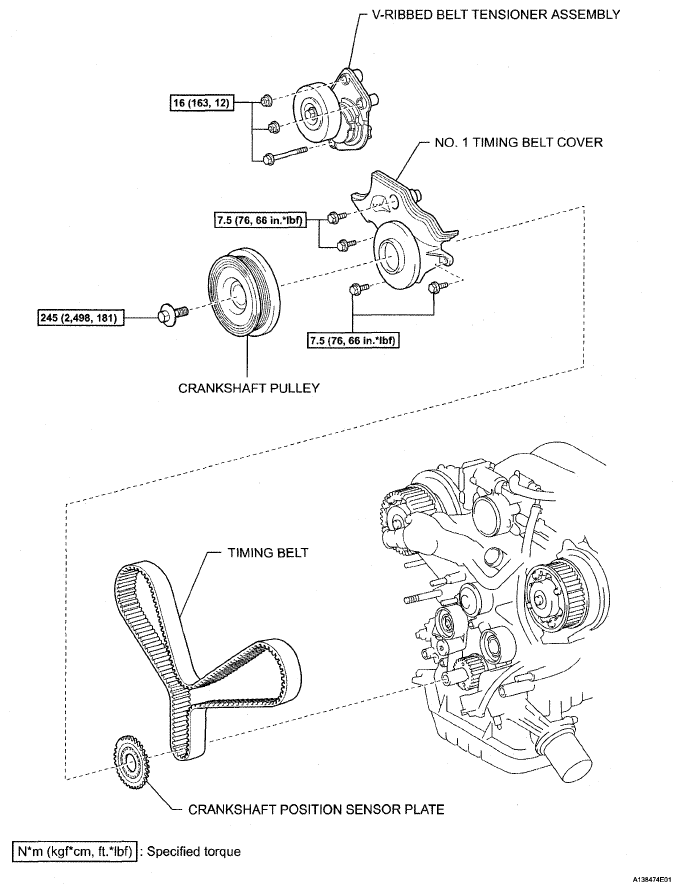

Fig 8: Identifying Engine Unit Replacement Components (8 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Identifying Engine Unit Replacement Components With Torque Specifications (9 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Identifying Engine Unit Replacement Components With Torque Specifications (10 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Identifying Engine Unit Replacement Components With Torque Specifications (11 Of 11)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
