AMP Sound Signal Circuit between Radio Receiver Assembly and Stereo Component Tuner: Wiring Diagram

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

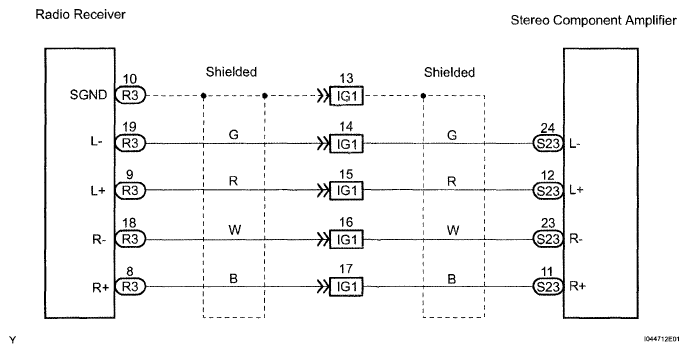

Fig 1: Amp Sound Signal Circuit Between Radio Receiver Assembly And Stereo Component Tuner - Wiring Diagram
G05293079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
