Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK WIRE HARNESS (NAVIGATION ECU - STEREO COMPONENT AMPLIFIER ASSEMBLY)
    1. Disconnect the M4 ECU connector.
    2. Disconnect the S23 amplifier connector.

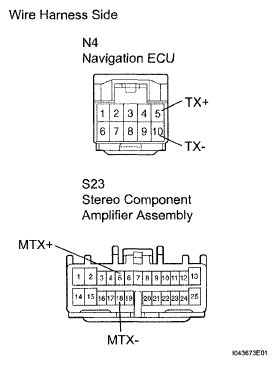

      Fig 1: Identifying S23 Amplifier Connector Terminals
      G05293318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      N4-5 (TX+) - S23-5 (MTX+) Below 1 Ω
      N4-10 (TX-) - S23-18 (MTX-) Below 1 Ω
      N4-5 (TX+) - Body ground 10 kΩ or higher
      N4-10 (TX-) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART
