Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK NAVIGATION ECU (MUT2 VOLTAGE)
    1. Measure the voltage of the ECU connector.
      Fig 1: Identifying Navigation ECU Connector Terminals
      G05293350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      N3-15 (MUT2) - N3-17 (GND1) Voice guidance ON Below 1 V

    NG: REPLACE NAVIGATION ECU

    OK: Go to next step

  2. CHECK WIRE HARNESS (NAVIGATION ECU - STEREO COMPONENT AMPLIFIER AND BODY GROUND)
    1. Disconnect the N3 ECU connector.
    2. Disconnect the N6 amplifier connector.

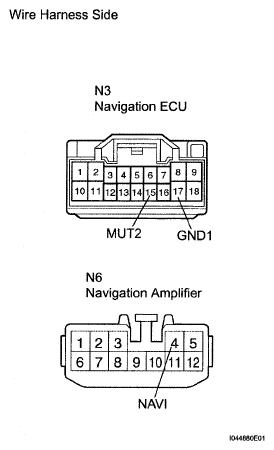

      Fig 2: Identifying N6 Amplifier Connector Terminals
      G05293351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      N3-15 (MUT2) - N6-4 (NAVI) Below 1 Ω
      N3-17 (GND1) - Body ground Below 1 Ω
      N3-15 (MUT2) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step

  3. CHECK NAVIGATION AMPLIFIER (NAVO VOLTAGE)
    1. Measure the voltage of the amplifier connector.
      Fig 3: Identifying Navigation Amplifier Connector Terminals
      G05293352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      N6-11 (NAVO) - N6-8 (GND) Voice guidance ON Below 1 V

    NG: REPLACE NAVIGATION AMPLIFIER

    OK: Go to next step

  4. CHECK WIRE HARNESS (NAVIGATION AMPLIFIER - STEREO COMPONENT AMPLIFIER AND BODY GROUND)
    1. Disconnect the N6 and S23 amplifier connectors.

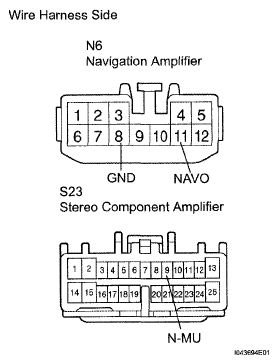

      Fig 4: Identifying N6 And S23 Amplifier Connectors Terminals
      G05293353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      N6-11 (NAVO) - S23-9 (N-MU) Below 1 Ω
      N6-8 (GND) - Body ground Below 1 Ω
      N6-11 (NAVO) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
