ABS Warning Light Circuit: Wiring Diagram

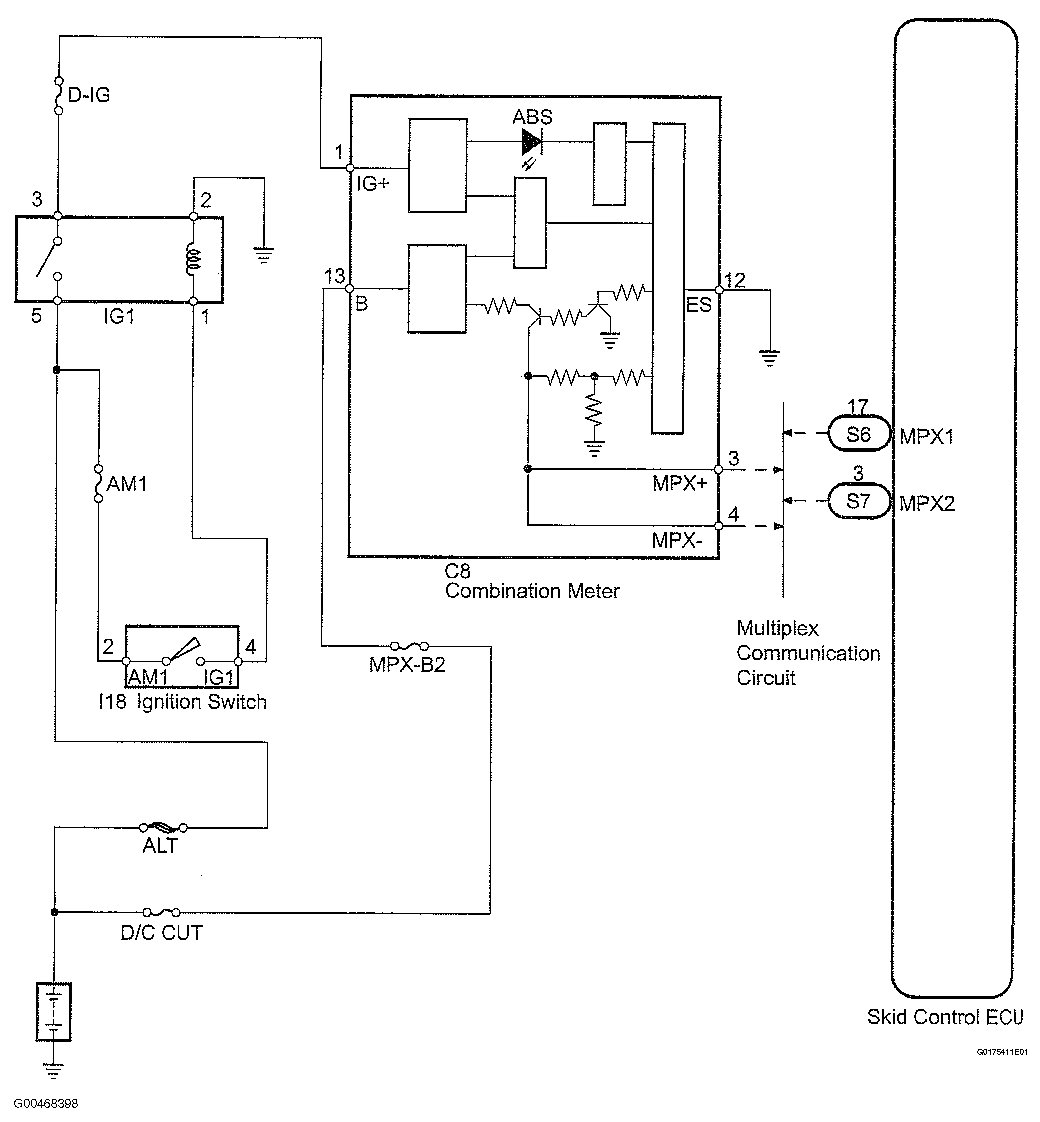

Fig 1: ABS Warning Light Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECTION PROCEDURE

1. PERFORM ACTIVE TEST BY TECHSTREAM (ABS WARNING LIGHT)
   1. Using the Techstream Active Test, generate a control command and then check that the ABS warning light operates.

      ABS/VSC/TRAC

      DIAGNOSTIC NOTE CHART



      Tester Display	Test Part	Control Range	Diagnostic Note
      ABS Warning Light	Turns ABS warning light ON/OFF	Observe combination meter	-

      OK: ABS warning light is turned on or off in accordance with intelligent tester.

   OK: REPLACE SKID CONTROL ECU

   NG: Go to Next Step

2. CHECK MULTIPLEX COMMUNICATION SYSTEM (SKID CONTROL ECU - COMBINATION METER)
   1. Check for open and short circuits in the multiplex communication system between the skid control ECU and combination meter.

   NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK: Go to Next Step

3. CHECK COMBINATION METER (ABS WARNING LIGHT)
   1. Check the combination meter (see PROBLEM SYMPTOMS TABLE ).

   NG: REPAIR OR REPLACE COMBINATION METER

   OK: REPLACE SKID CONTROL ECU
