Air Conditioning Control Assembly: Reassembly

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEATER CONTROL KNOB
1. Install the control knobs as shown in the illustration.
  NOTE: If a heater control knob falls off after installation, it may have been installed backwards.

  Fig 1: Identifying Heater Control Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MULTI-DISPLAY JUNCTION BLOCK (w/ Navigation System)
1. Install the multi-display junction block with the 2 screws.

  Fig 2: Installing Multi-Display Junction Block With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEATER CONTROL BASE SUB-ASSEMBLY
1. Place the heater control base on the control switch.
2. Push the base's 2 claws to attach the base to the switch, as shown in the illustration.
  HINT:

  Pushing the base's 2 claws will attach all 7 of its claws.

  Fig 3: Placing Heater Control Base On Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 screws.

  Fig 4: Installing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
1. Connect the 2 cooler wires to the A/C amplifier.
  NOTE: Connect each wire so that the black line side of each wire is as shown in the illustration.
2. Push on the locking parts of the connectors to secure the cooler wires.

  Fig 5: Connecting Cooler Wires To A/C Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the A/C amplifier with the 2 screws, cover plate and water protective sheet.

  Fig 6: Identifying A/C Amplifier With Screws, Cover Plate And Water Protective Sheet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be sure to fit the base to the groove on the cover plate.
  - Insert the water-protective sheet into the heater control housing as shown in the illustration.
INSTALL HEATER CONTROL HOUSING
1. Connect the 2 cooler wires to the heater control housing.
2. Push on the locking parts of the connectors to secure the cooler wires.

  Fig 7: Identifying Locking Parts Of Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

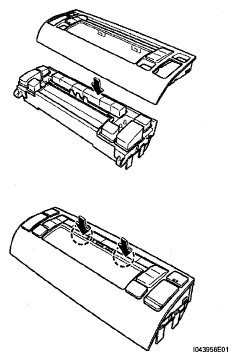

3. Attach the 4 claws and install the heater control housing with the 6 screws.

  Fig 8: Identifying Heater Control Housing With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
