Center Airbag Sensor Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

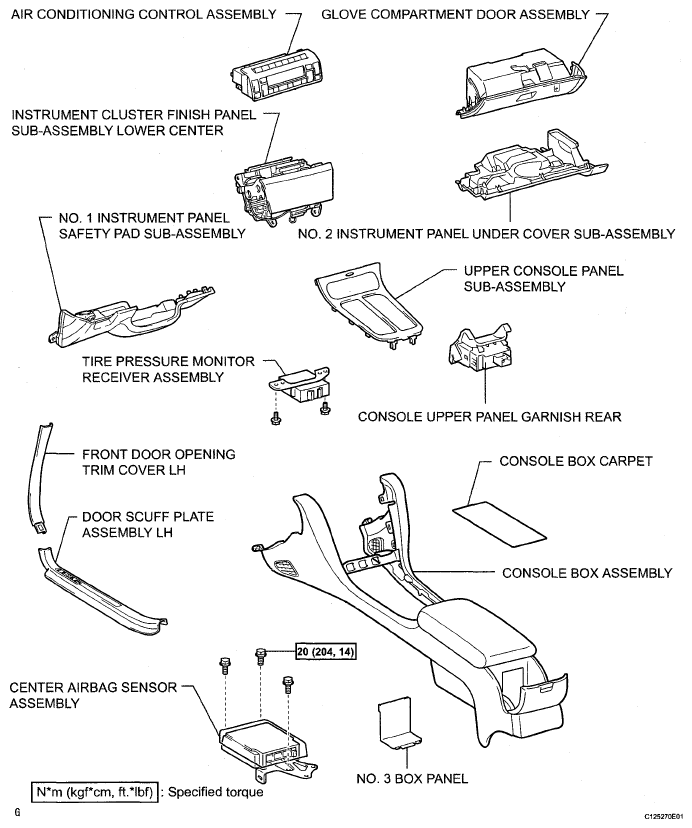

Fig 1: Center Airbag Sensor Assembly Replacement Components With Torque Specifications
G05292366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
