Headlight Assembly: Reassembly

HINT:

• Use the same procedures for the RH and LH side.
• The procedures listed below are for the LH side.

1. INSTALL HEADLIGHT LEVELING MOTOR
   1. Install the base packing to the headlight leveling motor.
   2. Attach the motor's claw to install the headlight leveling motor to the reflector.
   3. Align the notches of the leveling motor and housing, and push the leveling motor into the housing. Turn the headlight leveling motor in the direction indicated by the arrow in the illustration.

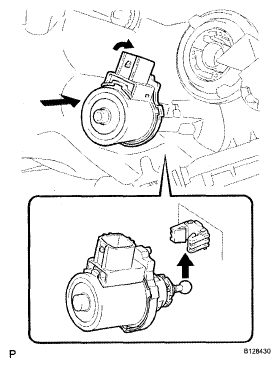

      Fig 1: Installing Headlight Leveling Motor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL CLEARANCE LIGHT BULB
   1. Insert the bulb into the light, and turn it in the direction indicated by the arrow to install it.
      Fig 2: Installing Clearance Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT TURN SIGNAL LIGHT BULB
   1. Insert the bulb into the light, and turn it in the direction indicated by the arrow to install it.
      Fig 3: Installing Front Turn Signal Light Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL NO. 2 HEADLIGHT BULB
   1. Insert the bulb into the light, and turn it in the direction indicated by the arrow to install it.
      Fig 4: Installing Headlight Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL DISCHARGE HEADLIGHT BULB
   1. Install the bulb and lock the set spring by moving it as indicated by the arrows in the illustration.
      Fig 5: Installing Discharge Headlight Bulb

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the bulb socket cover and turn it clockwise to complete the installation.
      Fig 6: Installing Bulb Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Install the headlight socket cover and turn it clockwise to complete the installation.
      Fig 7: Installing Headlight Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
