Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (BACK-UP LIGHT)
    1. Select the ACTIVE TEST, use the intelligent tester (with CAN VIM) to generate a control command, and then check that the back-up light illuminates.

      Luggage room junction block ECU

      ACTIVE TEST DETAIL - LUGGAGE ROOM JUNCTION BLOCK ECU

      Item Test Details Diagnostic Note
      BACK-UP Back-up light ON / OFF -

      OK: Back-up light illuminates.

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    NG: Go to Next step

  2. INSPECT BACK-UP LIGHT ASSEMBLY
    Fig 1: Identifying Back-Up Light Connector Terminals
    G05292640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the back-up light.
    2. Apply battery voltage to the back-up light connector and check that the back-up light illuminates.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 2
      Battery negative (-) → Terminal 1
      Back-up light illuminates

    NG: REPLACE BACK-UP LIGHT ASSEMBLY

    OK: Go to Next step

  3. CHECK WIRE HARNESS (ECU - BATTERY AND BODY GROUND)
    1. Disconnect the 6L junction block connector.
      Fig 2: Identifying 6L Junction Block Connector
      G05292641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      6L-1 (BCK1) - Body ground 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to Next step

  4. CHECK WIRE HARNESS (LIGHT - ECU AND BODY GROUND)
    1. Disconnect the B8*1 or B9*2 light connector.

      HINT:

      *1: LH

      *2: RH

    2. Disconnect the L22 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance:

      LH

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      B8-2 - L22-13 (BCK1) Below 1 Ω
      B8-1 - Body ground Below 1 Ω
      B8-2 - Body ground 10 kΩ or higher

      RH

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      B9-2 - L22-13 (BCK1) Below 1 Ω
      B9-1 - Body ground Below 1 Ω
      B9-2 - Body ground 10 kΩ or higher

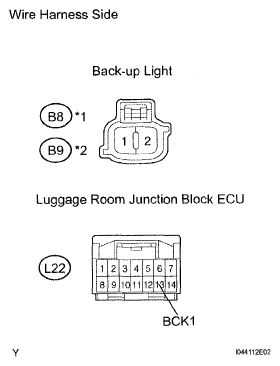

      Fig 3: Identifying Back-Up Light And Luggage Room Junction Block ECU Connector Terminals
      G05292642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
