Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (STOP LIGHT)
    1. Select the ACTIVE TEST, use the intelligent tester (with CAN VIM) to generate a control command, and then check that the stop light illuminates.

      Luggage room junction block ECU

      ACTIVE TEST DETAIL - LUGGAGE ROOM JUNCTION BLOCK ECU

      Item Test Details Diagnostic Note
      STOP LIGHT Stop light ON / OFF -

      OK: stop light illuminates.

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    NG: Go to Next step

  2. INSPECT REAR COMBINATION LIGHT ASSEMBLY (STOP LIGHT)
    Fig 1: Identifying Rear Combination Light Connector Terminals
    G05292636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the rear combination light.
    2. Apply battery voltage to the rear combination light connector and check that the stop light illuminates.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) → Terminal 3
      Battery positive (-) → Terminal 4
      Stop light illuminates

    NG: REPLACE REAR COMBINATION LIGHT ASSEMBLY

    OK: Go to Next step

  3. CHECK WIRE HARNESS (ECU - BATTERY AND BODY GROUND)
    1. Disconnect the 6L junction block connector.
      Fig 2: Identifying 6L Junction Block Connector Terminal
      G05292637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage of the wire harness side connectors.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Specified Condition
      6L-1 (STOP1) - Body ground 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to Next step

  4. CHECK WIRE HARNESS (LIGHT - ECU AND BODY GROUND)
    1. Disconnect the R6*1 or R7*2 light connector.

      HINT:

      *1: LH

      *2: RH

    2. Disconnect the L23 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance:

      LH

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      R6-3 - L23-8 (STP1) Below 1 Ω
      R6-4 - Body ground Below 1 Ω
      R6-3 - Body ground 10 kΩ or higher

      RH

      RESISTANCE SPECIFICATION

      Tester Connection Specified Condition
      R7-3 - L23-7 (STP1) Below 1 Ω
      R7-4 - Body ground Below 1 Ω
      R7-3 - Body ground 10 kΩ or higher

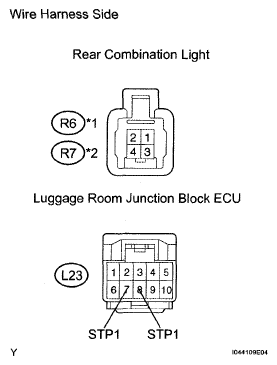

      Fig 3: Identifying Rear Combination Light And Luggage Room Junction Block ECU Connector Terminals
      G05292638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
