Engine Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

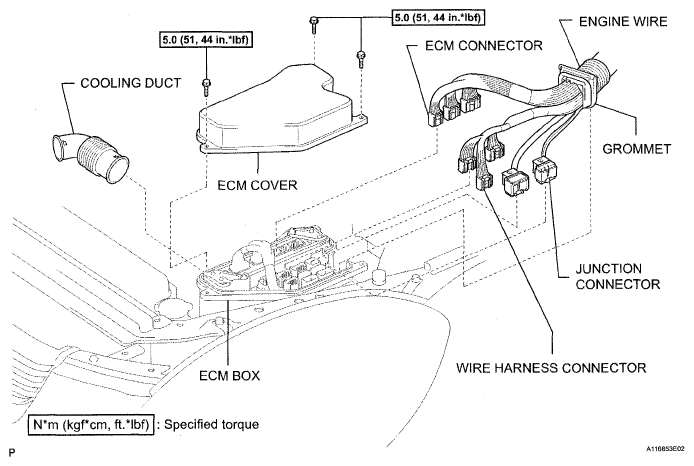

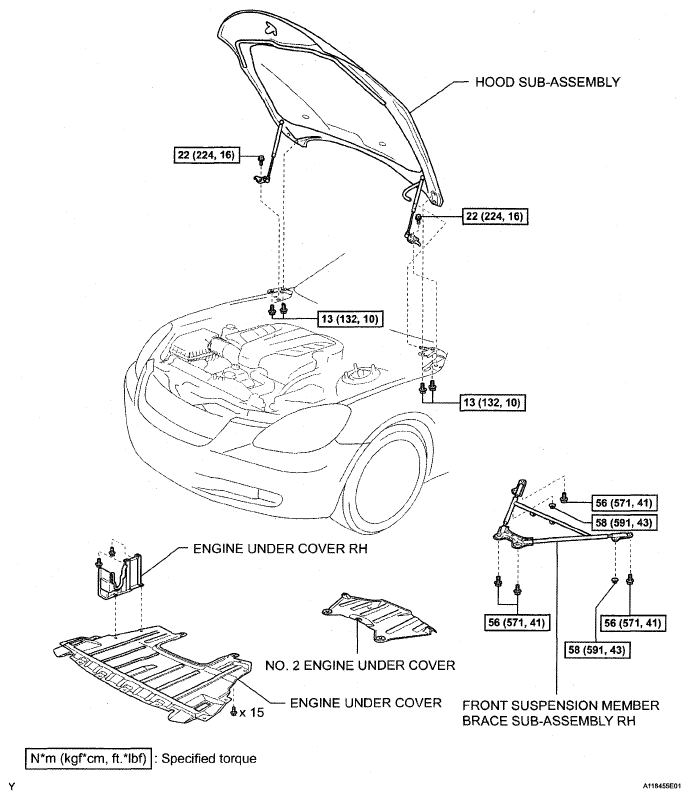

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

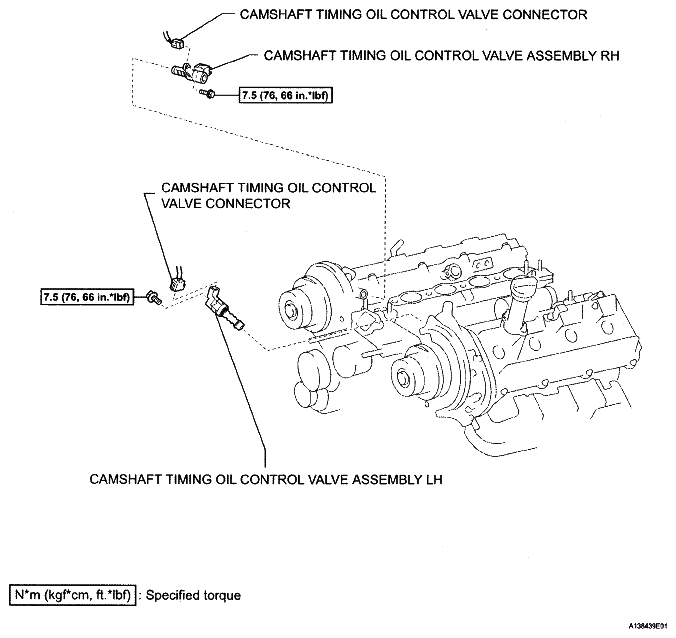

Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

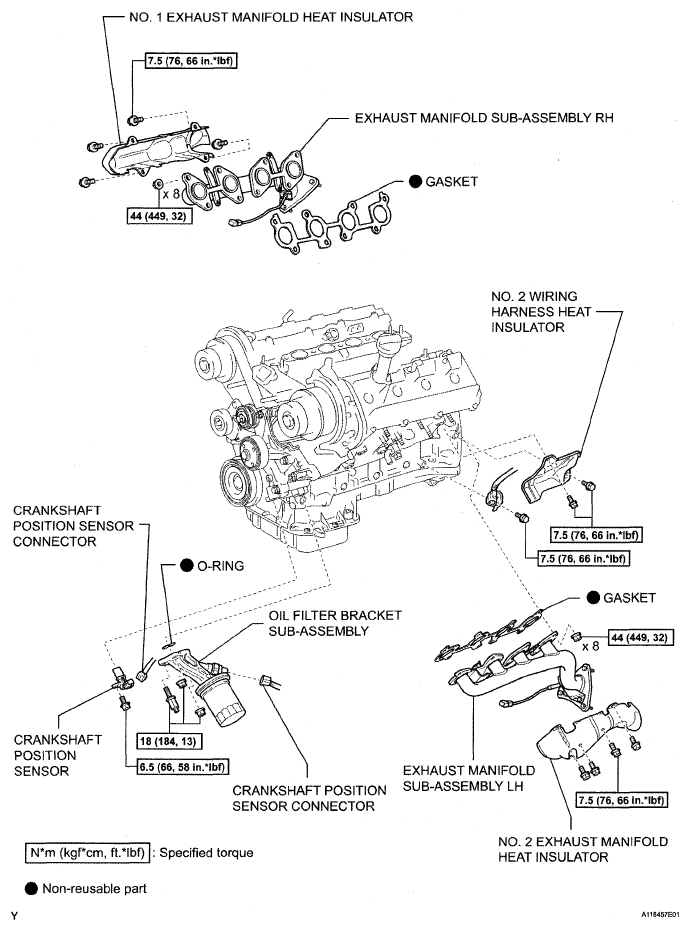

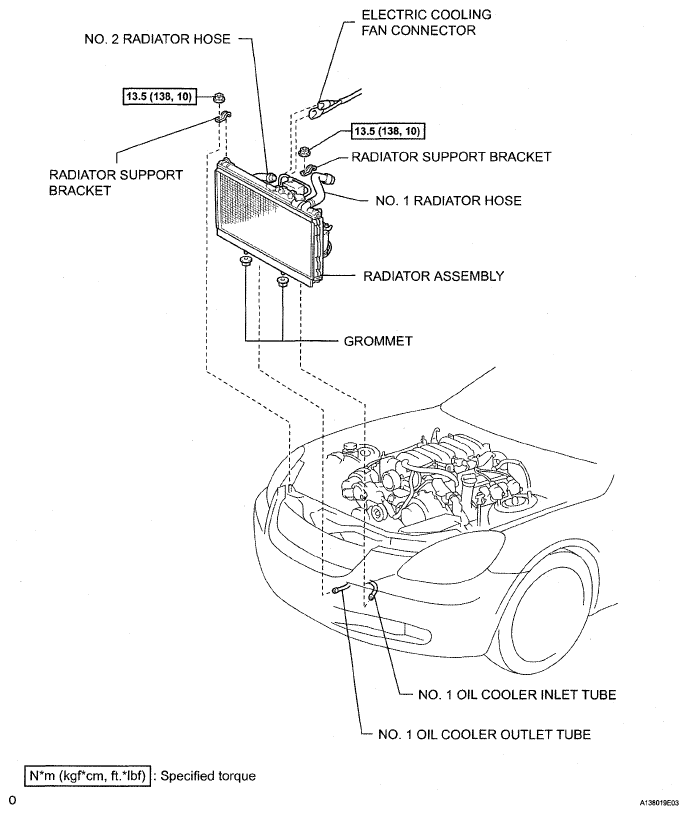

Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

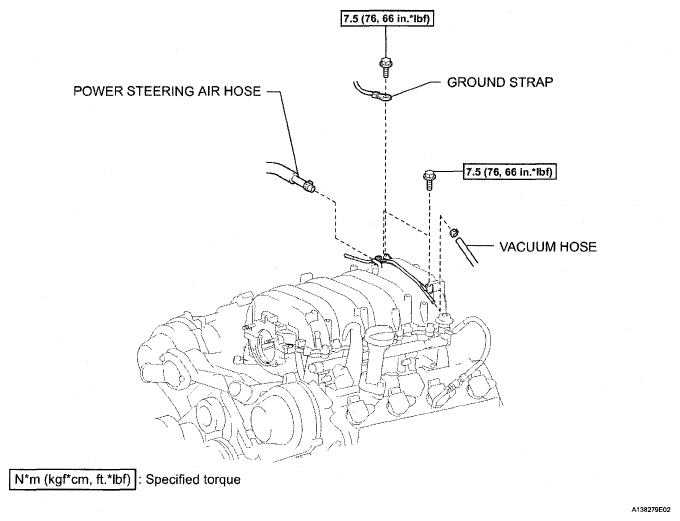

Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

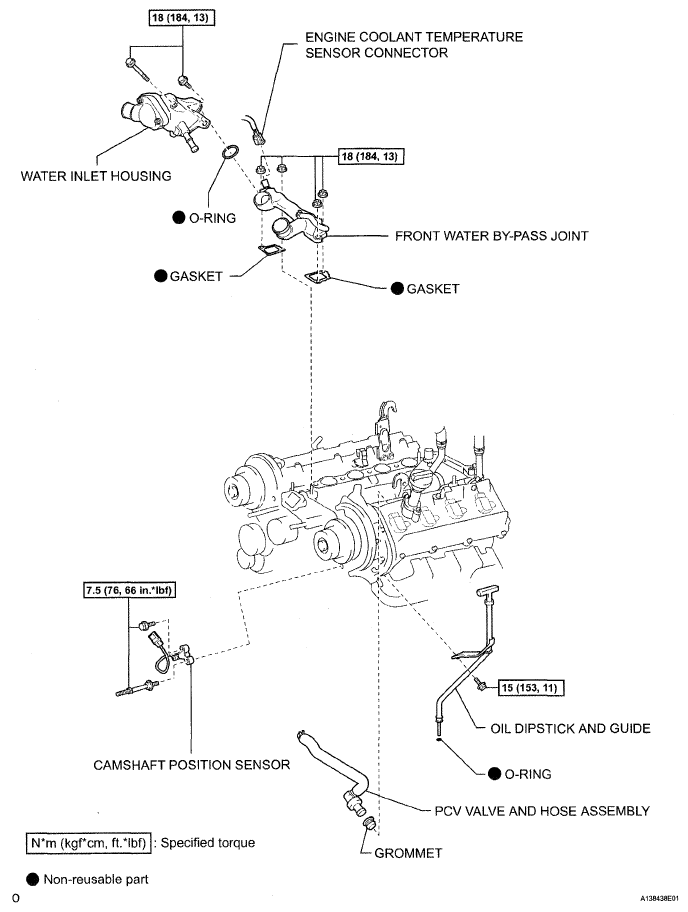

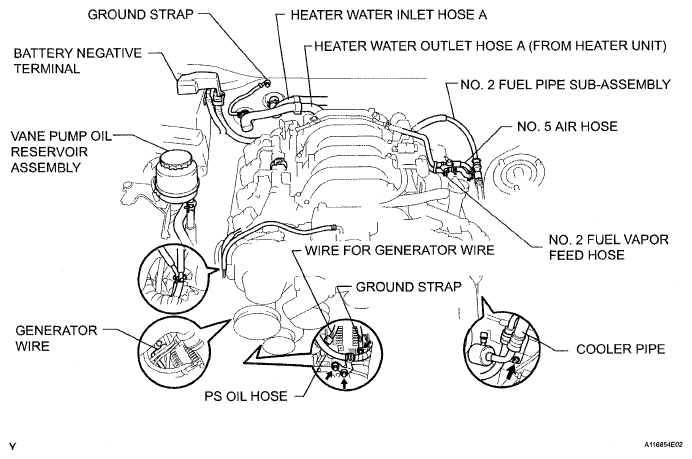

Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

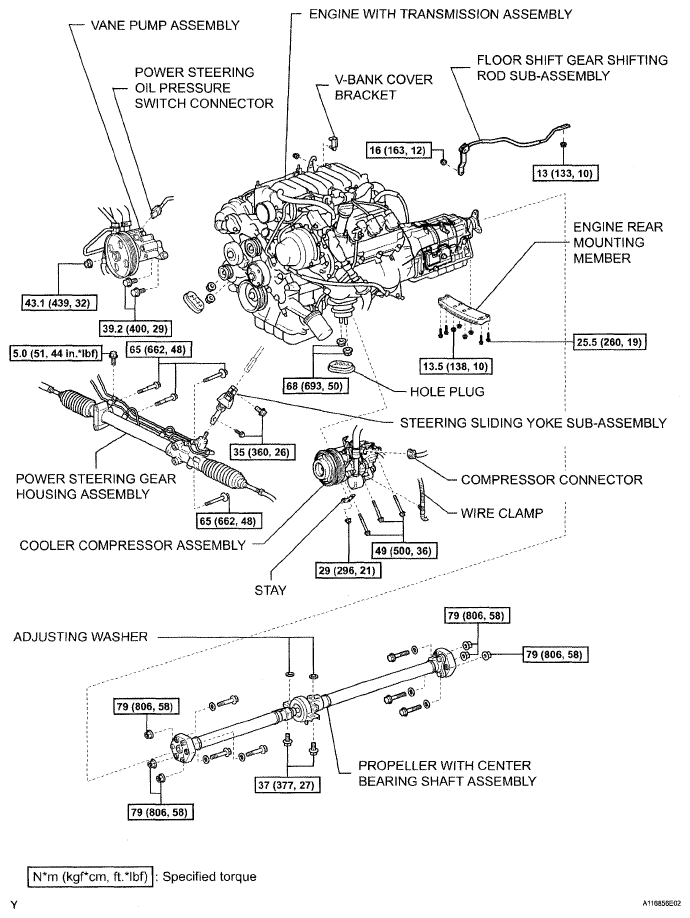

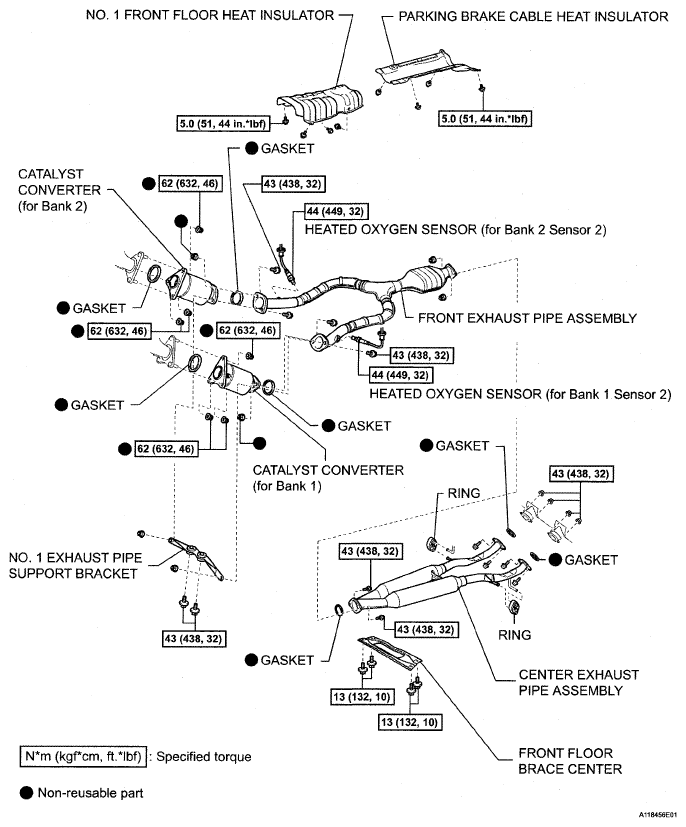

Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

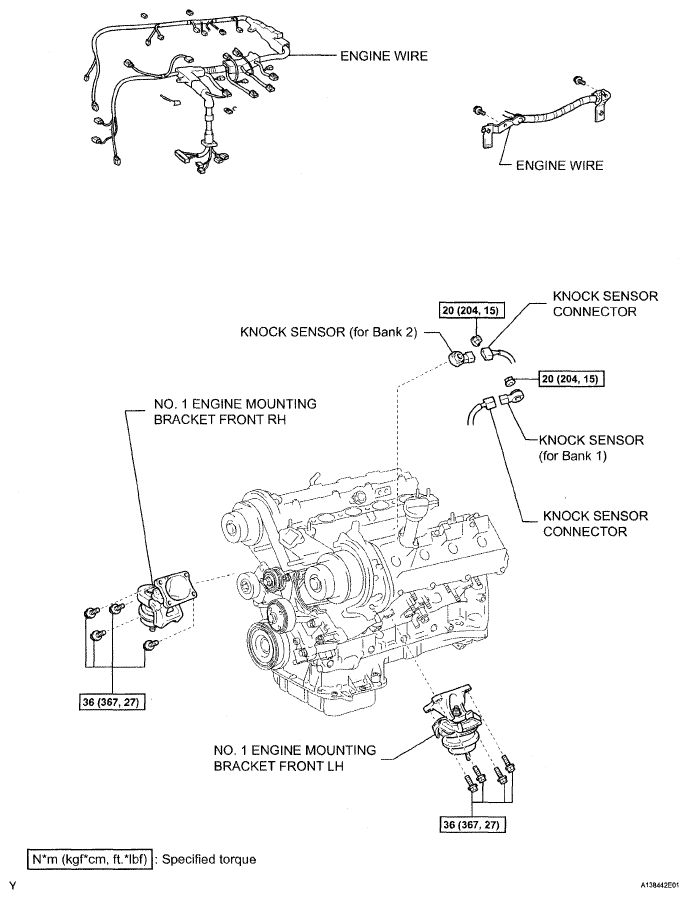

Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

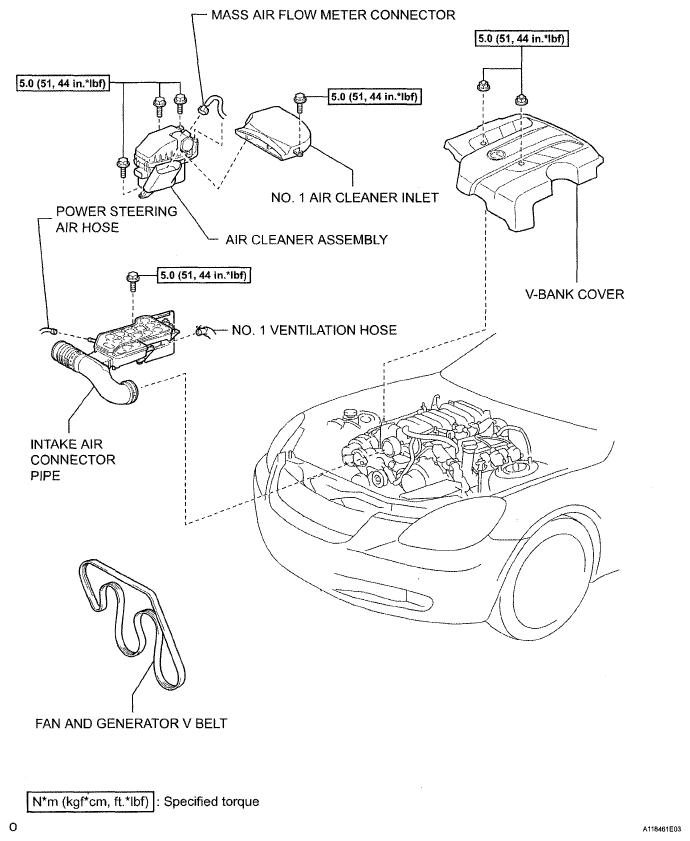

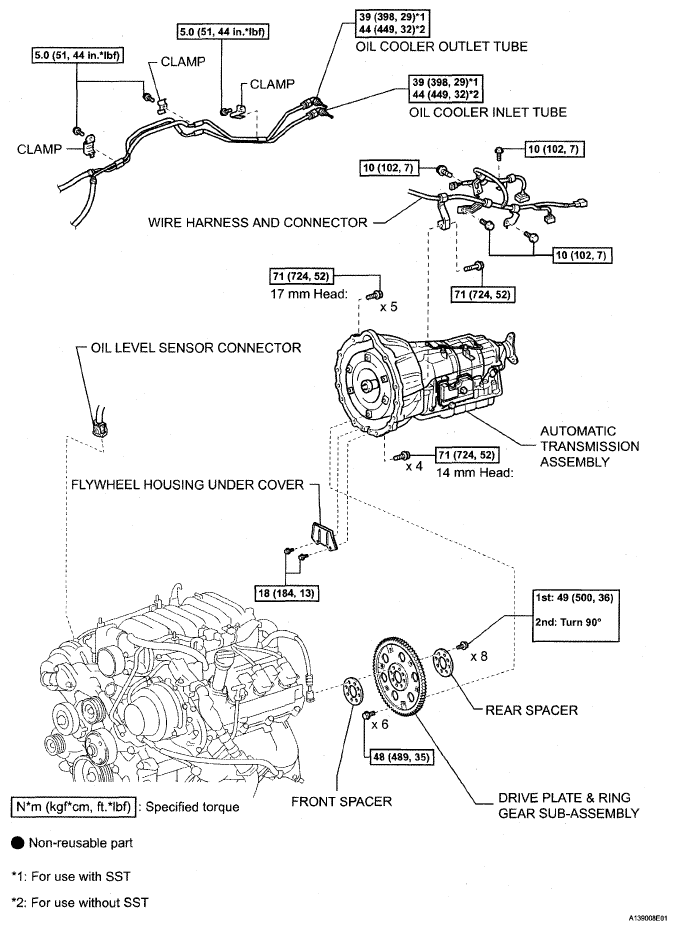

Fig 8: Engine Assembly Replacement Components With Torque Specifications (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

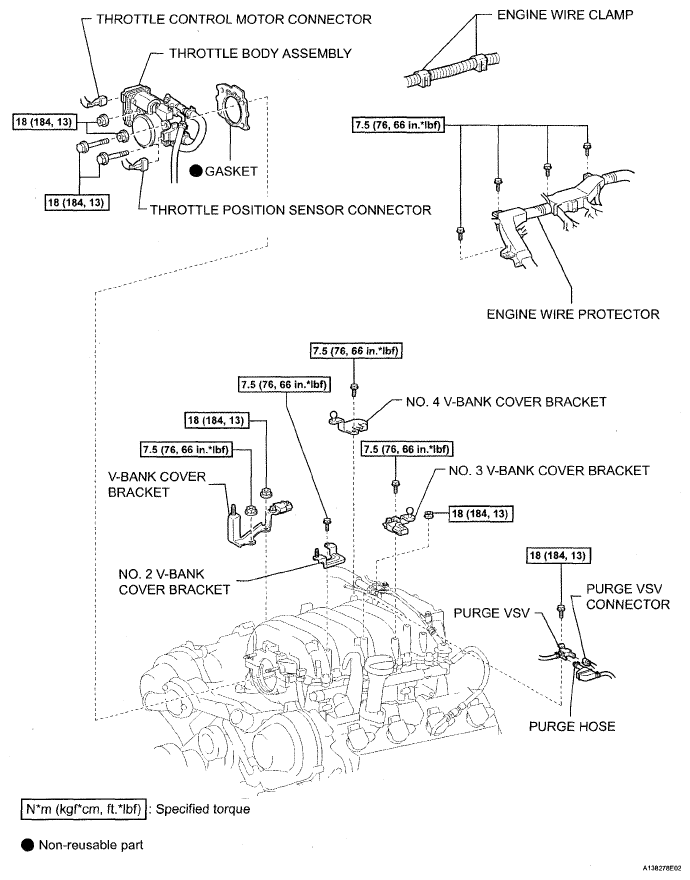

Fig 9: Engine Assembly Replacement Components With Torque Specifications (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Assembly Replacement Components With Torque Specifications (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Assembly Replacement Components With Torque Specifications (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

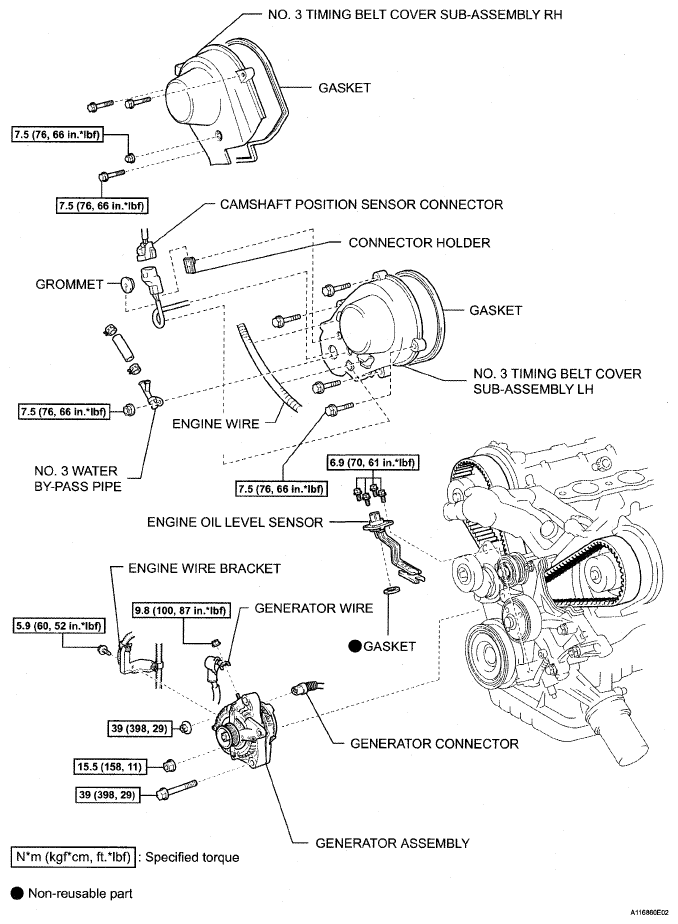

Fig 12: Engine Assembly Replacement Components With Torque Specifications (12 Of 17)

Fig 13: Engine Assembly Replacement Components With Torque Specifications (13 Of 17)

Fig 14: Engine Assembly Replacement Components With Torque Specifications (14 Of 17)

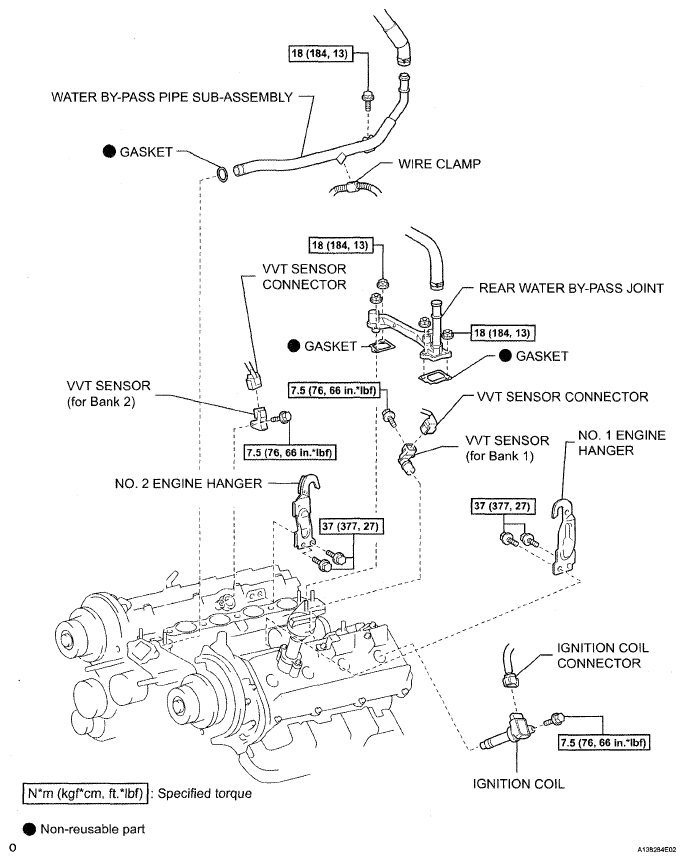

Fig 15: Engine Assembly Replacement Components With Torque Specifications (15 Of 17)

Fig 16: Engine Assembly Replacement Components With Torque Specifications (16 Of 17)

Fig 17: Engine Assembly Replacement Components With Torque Specifications (17 Of 17)
