Installation

NAVIGATION: NAVIGATION ECU:

INSTALLATION

1. INSTALL NAVIGATION ECU

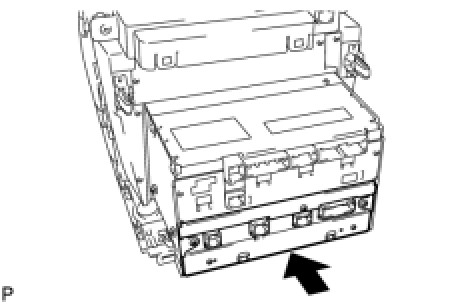

(a) Install the navigation ECU as shown in the illustration.

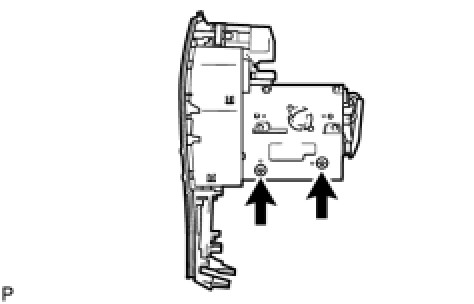

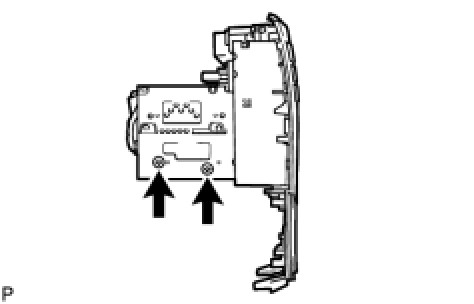

(b) Install the 2 screws.

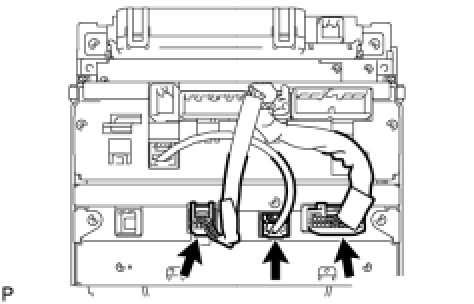

(d) Connect each connector.
2. INSTALL MULTI-DISPLAY ASSEMBLY

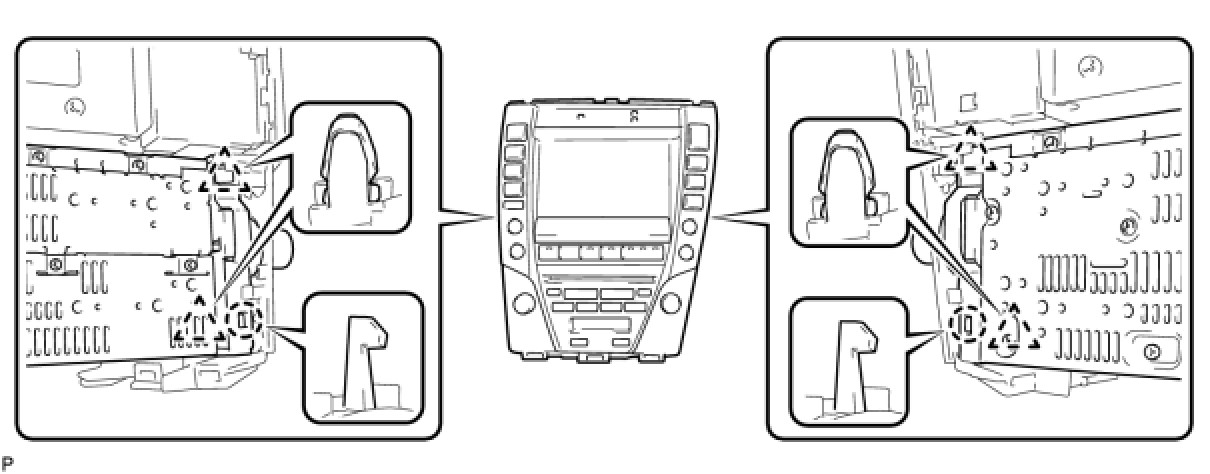

(a) Engage the 2 claws and 4 clips and install the multi-display assembly.

3. INSTALL NO. 2 RADIO BRACKET Installation
4. INSTALL NO. 1 RADIO BRACKET Installation
5. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY Installation
6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
7. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation
8. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE Installation
9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
11. INSERT MAP DISC
(a) Turn the engine switch on (ACC).
(b) Insert the map disc.

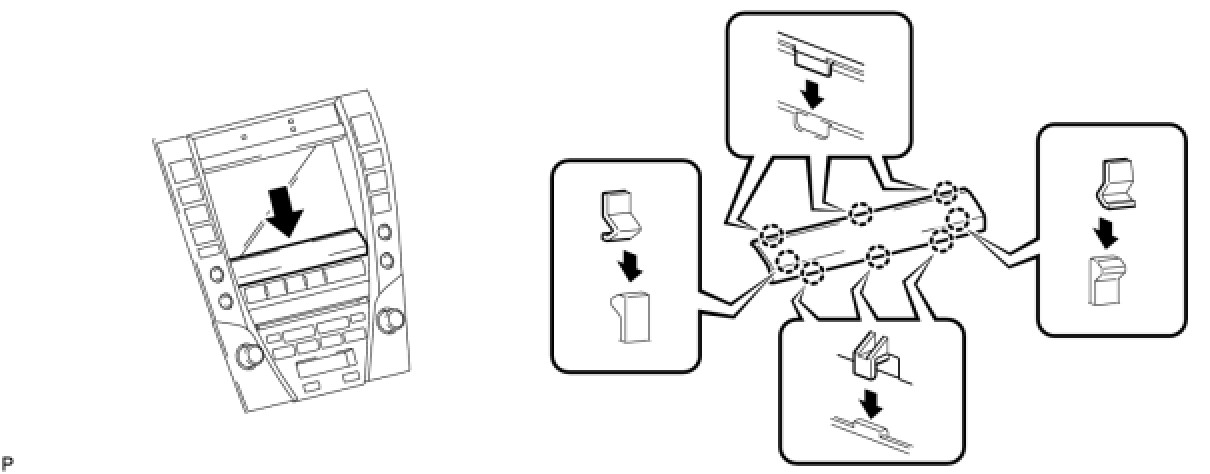

(c) Engage the 8 claws and install the cover as shown in the illustration.

(d) Turn the engine switch off.
12. ADJUST CLOCK
