Disassembly

AIR CONDITIONING PANEL: DISASSEMBLY

DISASSEMBLY

1. REMOVE HEATER CONTROL ORNAMENT LH





(a) Remove the 5 screws and heater control ornament LH.
2. REMOVE HEATER CONTROL ORNAMENT RH





(a) Remove the 5 screws and heater control ornament RH.
3. REMOVE HEATER CONTROL HOUSING SUB-ASSEMBLY





(a) Remove the 4 screws and disengage the 4 claws. Remove the heater control housing sub-assembly.
4. REMOVE CENTER CLUSTER MODULE CONTROL ASSEMBLY
NOTE:
When disassembling the center cluster module control assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.

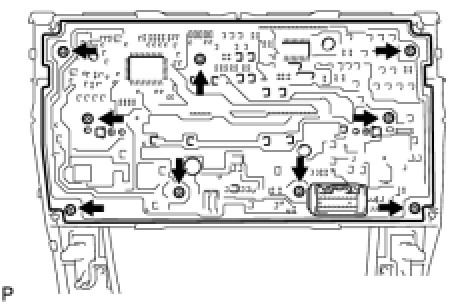

(a) Remove the 9 screws and center cluster module control assembly.
NOTE:
Do not drop the switches or buttons.

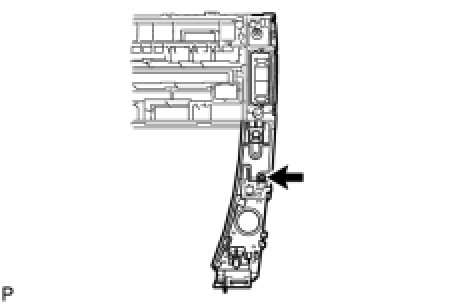

5. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY LH





(a) Remove the screw and air conditioning panel sub-assembly LH.

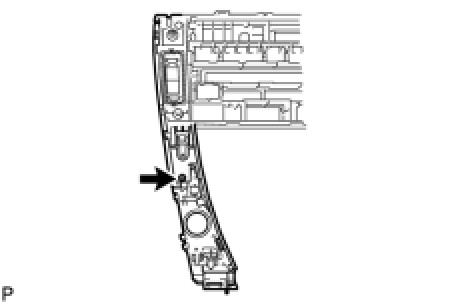

6. REMOVE AIR CONDITIONING PANEL SUB-ASSEMBLY RH





(a) Remove the screw and air conditioning panel sub-assembly RH.
