Installation

ENGINE IMMOBILIZER: ID CODE BOX:

INSTALLATION

1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)

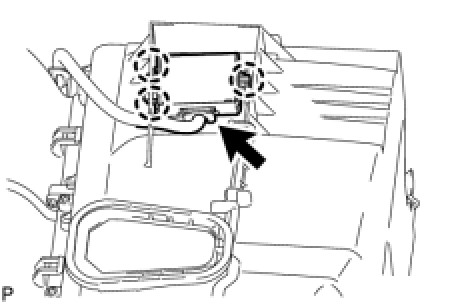

(a) Connect the connector.
(b) Engage the 3 claws and install the ID code box (immobilizer code ECU).
NOTE:
Be careful when installing the ID code box (immobilizer code ECU). If the ID code box (immobilizer code ECU) is dropped, replace it with a new one.

2. INSTALL AIR CONDITIONER UNIT ASSEMBLY
HINT: Refer to the procedure for Install Air Conditioner Unit Assembly Installation.

3. REGISTER ECU COMMUNICATION ID
NOTE:
When replacing the ID code box (immobilizer code ECU), perform initialization Engine Immobilizer System.

4. REGISTER KEY
NOTE:
When replacing the ID code box (immobilizer code ECU), perform initialization Engine Immobilizer System.
