Power Tilt and Power Telescopic Steering Column System








STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

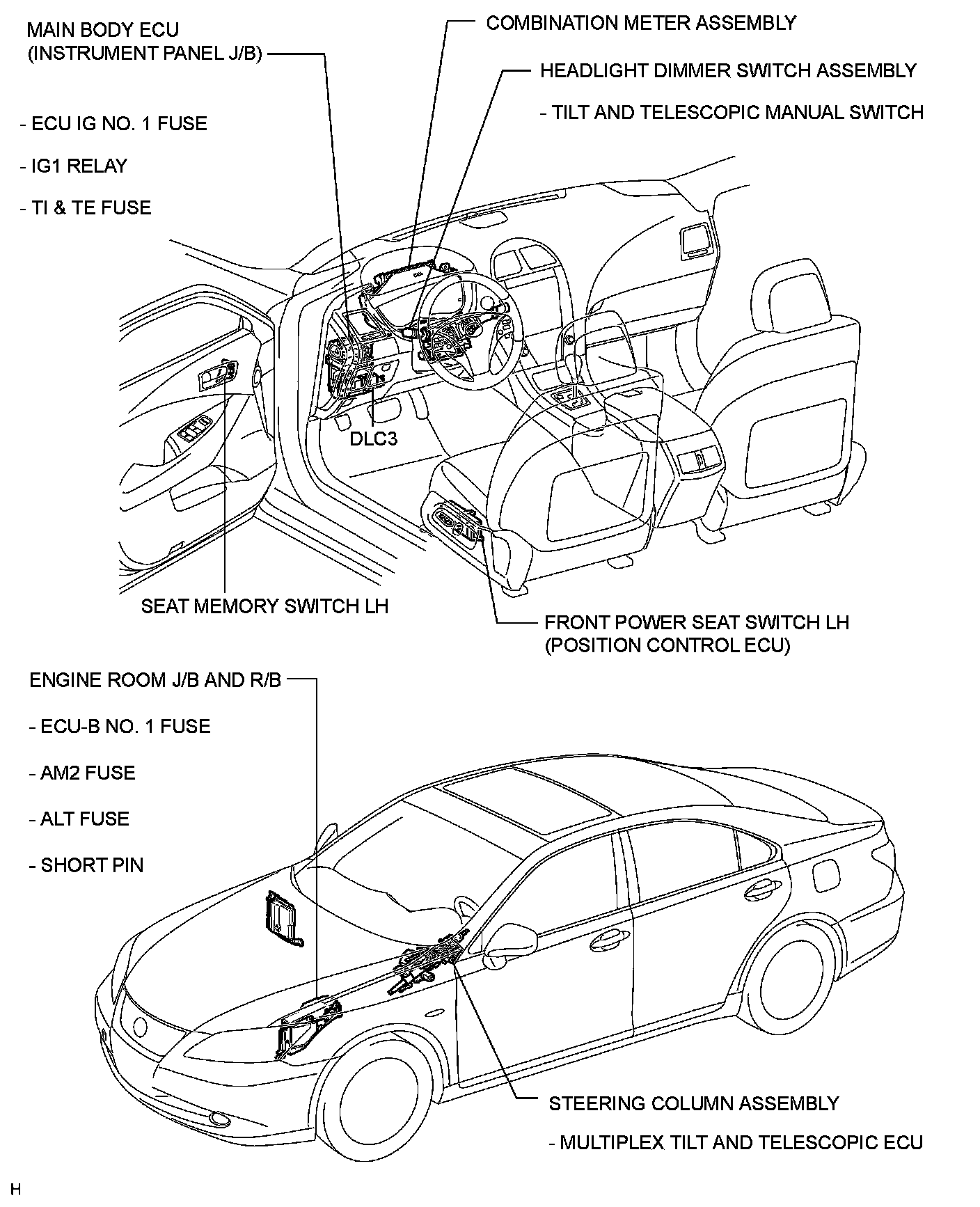

PARTS LOCATION






Instrument Panel:
