Installation

STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU:

INSTALLATION

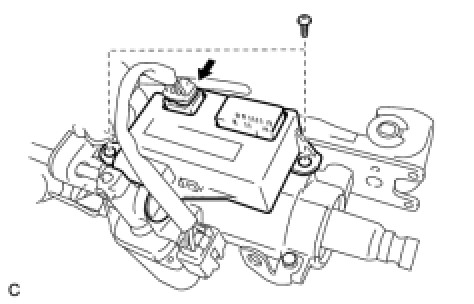

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU





(a) Install the multiplex tilt and telescopic ECU with the 2 screws.
Torque: 1.5 Nm (15 kgf-cm, 13 in-lbf)
(b) Connect the connector to the multiplex tilt and telescopic ECU.
NOTICE:
- The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape.
- When installing them, connect the connectors of the same color.

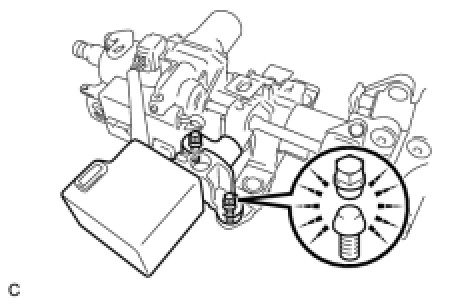

2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY





(a) Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
(b) Tighten the 2 tapered-head bolts until the bolt heads break off.
3. INSTALL STEERING COLUMN ASSEMBLY
HINT: Refer to the instructions for INSTALLATION of the STEERING COLUMN ASSEMBLY Installation.
