Rear Power Window Switch RH Circuit: Wiring Diagram

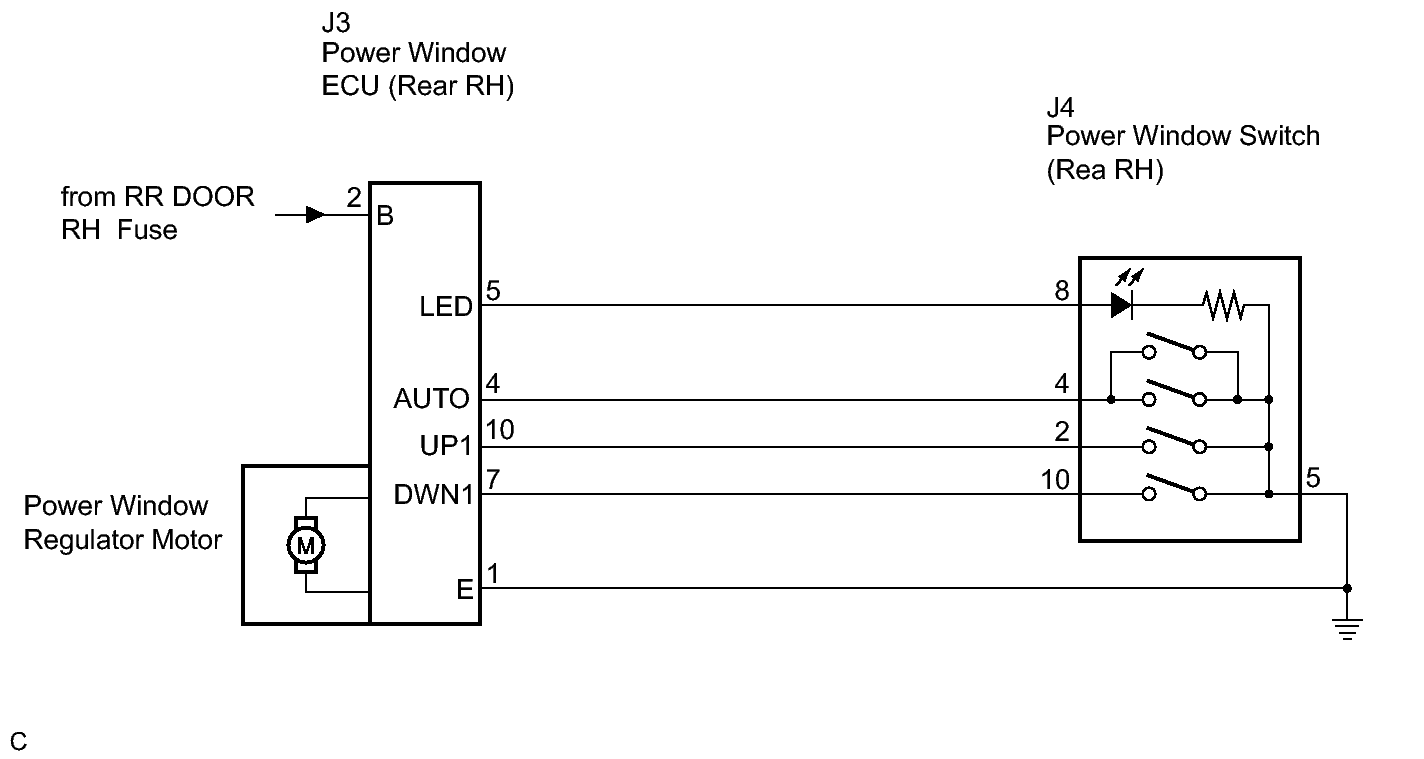

Fig 1: Rear Power Window Switch RH Circuit - Wiring Diagram
GTY137056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
