Windshield Glass: Installation: Installation

  1. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Using a brush or sponge, coat the application area of the No. 2 stoppers with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install 2 new No. 2 stoppers onto the windshield glass, as shown in the illustration.

      HINT:

      Only 2-piece type No. 2 stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

      Standard dimension

      Area Dimension
      A 40 mm (1.574 in.)
      B 20.9 mm (0.822 in.)
      C 10.2 mm (0.401 in.)
      D 23.5 mm (0.925 in.)
      E 12.8 mm (0.503 in.)
      F 10.9 mm (0.429 in.)
      G 19.3 mm (0.759 in.)
      H 47.3 mm (1.862 in.)
      I 17.0 mm (0.669 in.)
      J 42.6 mm (1.677 in.)
      K 12.3 mm (0.484 in.)

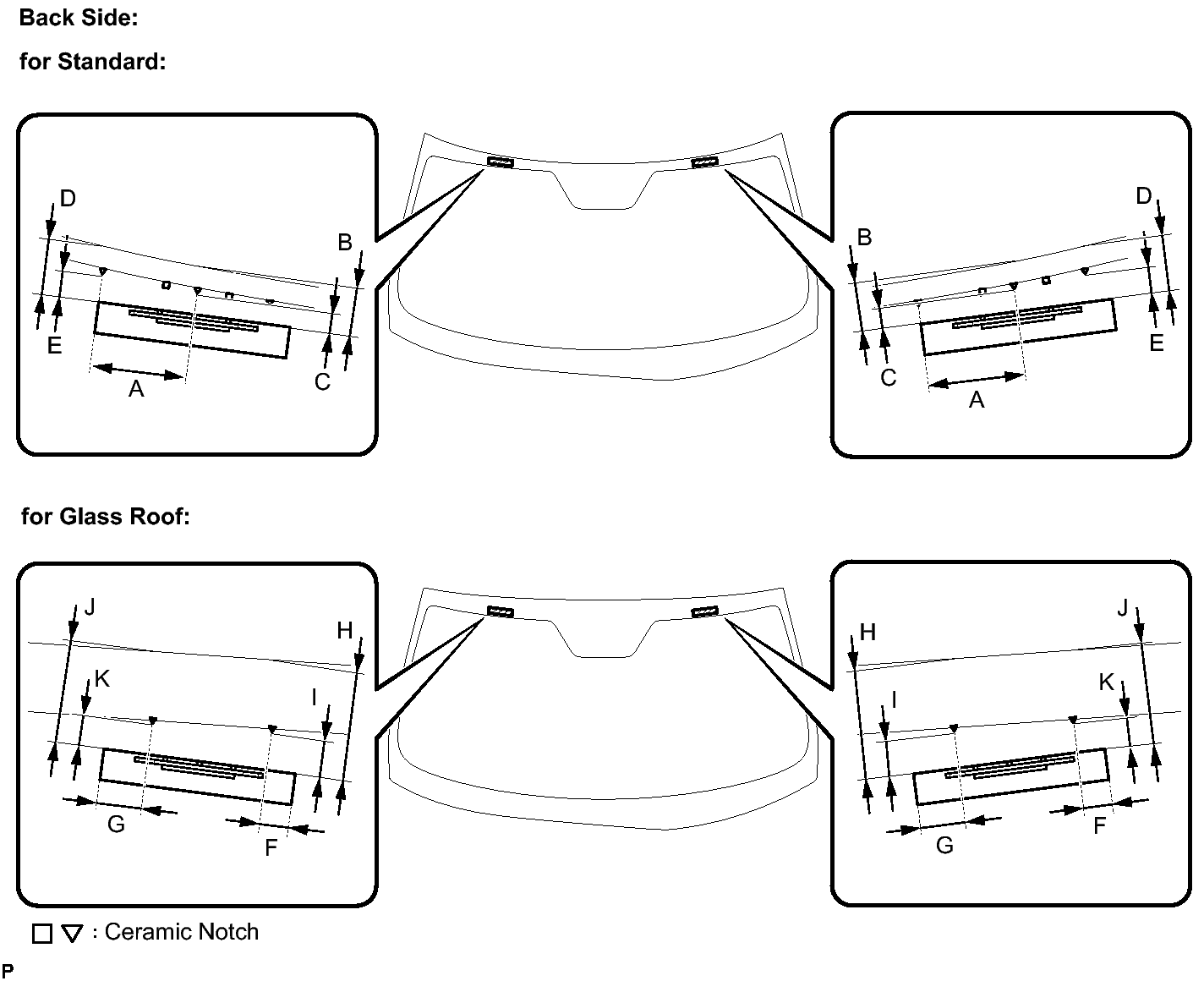

      Fig 1: Identifying 2-Piece Type No. 2 Stoppers Dimension
      GTY118316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL WINDSHIELD GLASS RETAINER
    1. Using a brush or sponge, coat the application area of the retainers with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install 2 new retainers onto the windshield glass, as shown in the illustration.

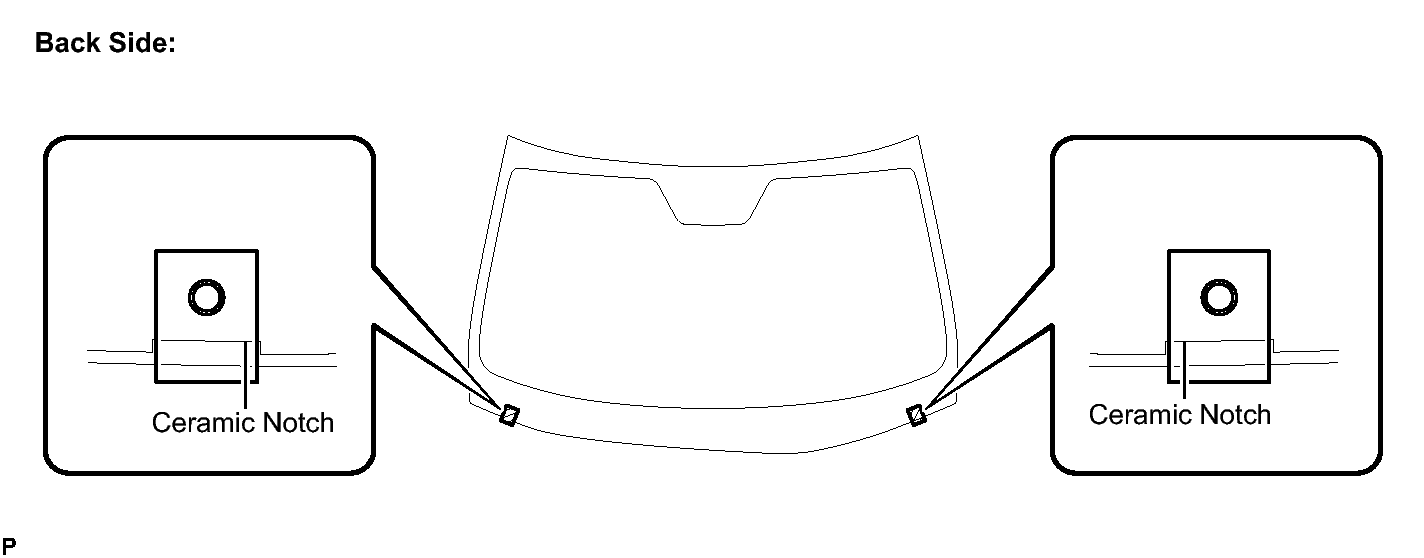

      Fig 2: Identifying Windshield Glass Retainers
      GTY129604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 WINDSHIELD GLASS STOPPER
    1. Install 2 new No. 1 stoppers to the vehicle body, as shown in the illustration.

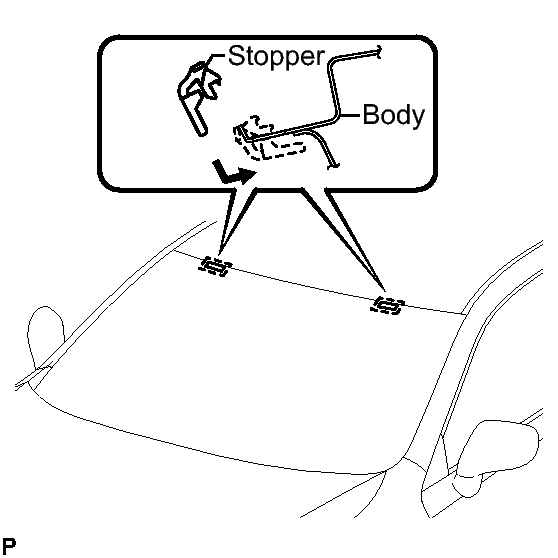

      Fig 3: Identifying 2-Piece Type No. 1 Stoppers
      GTY118050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Only 2-piece type No. 1 stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.

  4. INSTALL WINDSHIELD MOLDING OUTSIDE (for Standard)
    1. Using a brush or sponge, coat the application area of molding with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new molding onto the windshield glass, as shown in the illustration.

      Standard dimension

      Area Dimension
      A 6.4 mm (0.252 in.)

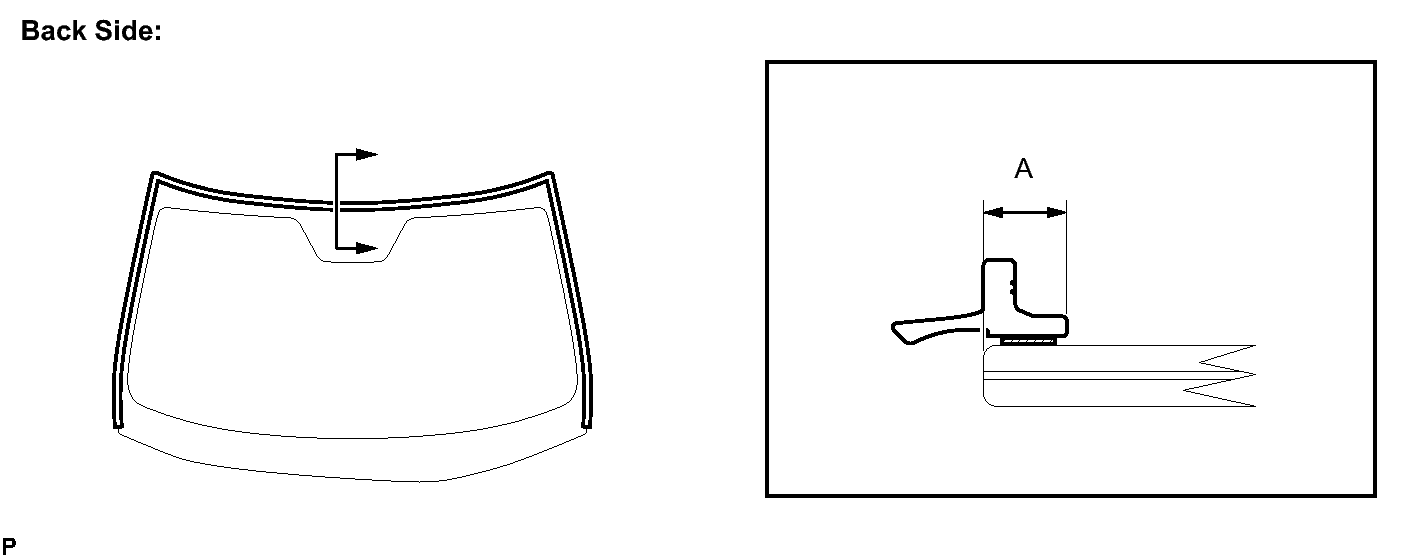

      Fig 4: Identifying Windshield Glass Molding
      GTY143658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL WINDSHIELD MOLDING OUTSIDE UPPER (for Glass Roof)
    1. Using a brush or sponge, coat the application area of molding with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new molding onto the windshield glass, as shown in the illustration.

      Standard dimension

      Area Dimension
      A 25.9 mm (1.019 in.)

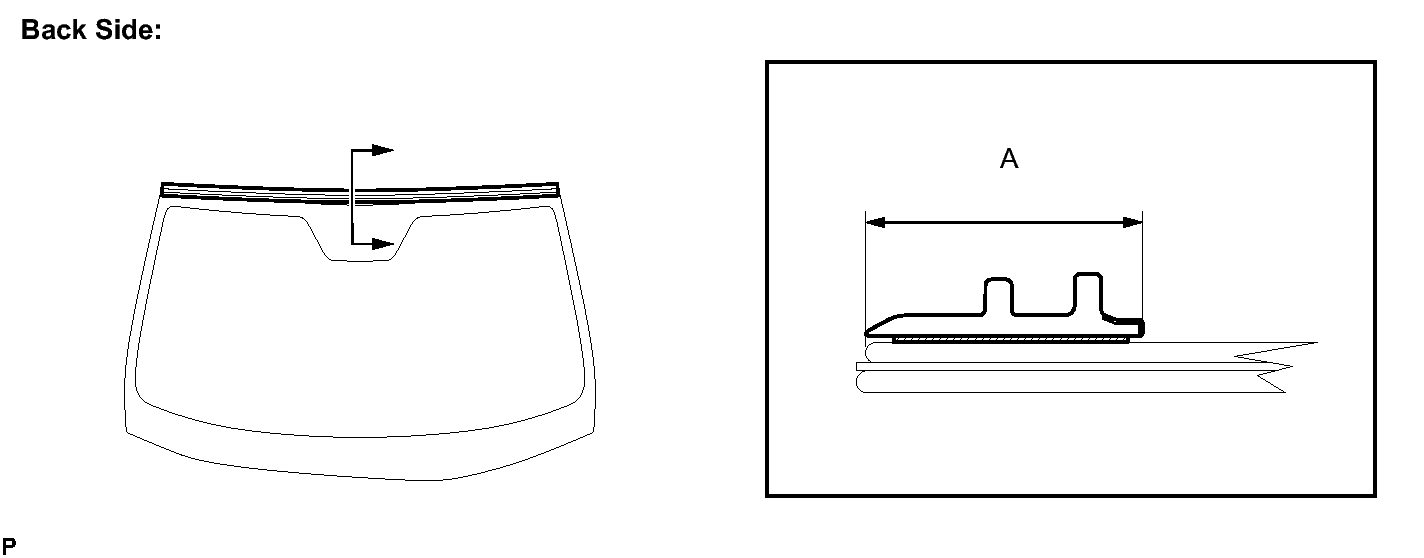

      Fig 5: Identifying Windshield Glass Molding
      GTY118318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL WINDSHIELD MOLDING OUTSIDE LH (for Glass Roof)
    1. Using a brush or sponge, coat the application area of molding with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new molding onto the windshield glass, as shown in the illustration.

      Standard dimension

      Area Dimension
      A 6.4 mm (0.252 in.)

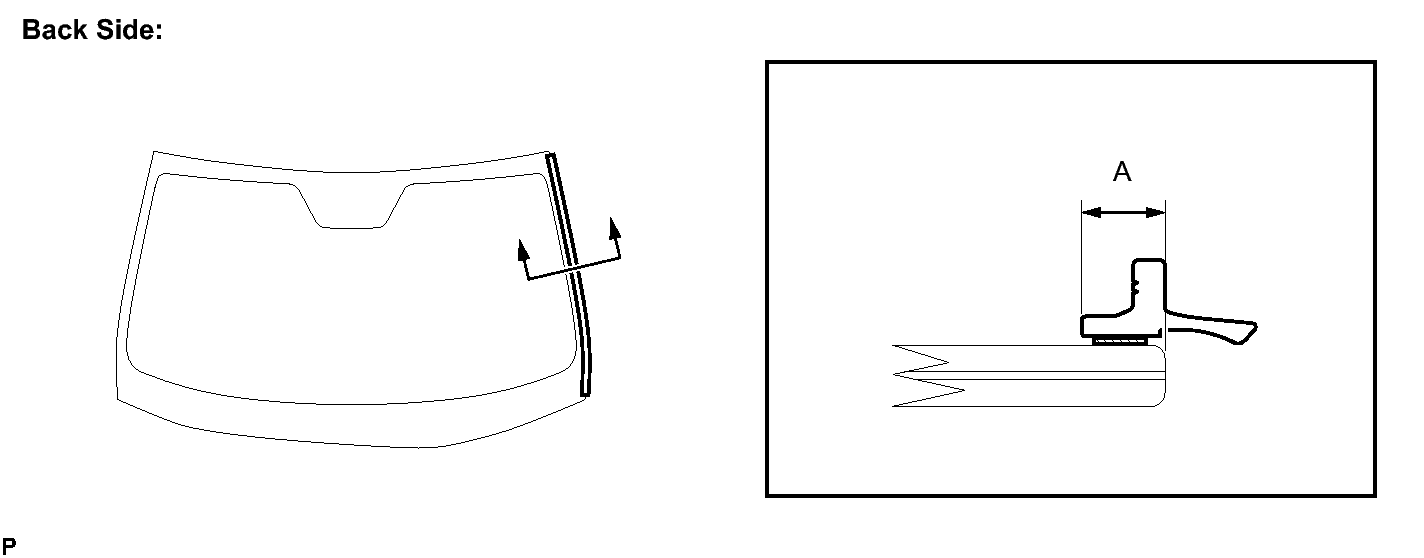

      Fig 6: Identifying Windshield Glass Molding
      GTY139606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL WINDSHIELD MOLDING OUTSIDE RH (for Glass Roof)

    HINT:

    Use the same procedures for the RH side and LH side.

  8. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Using a brush or sponge, coat the application area of adhesive dam with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

    2. Install a new adhesive dam onto the windshield glass, as shown in the illustration.

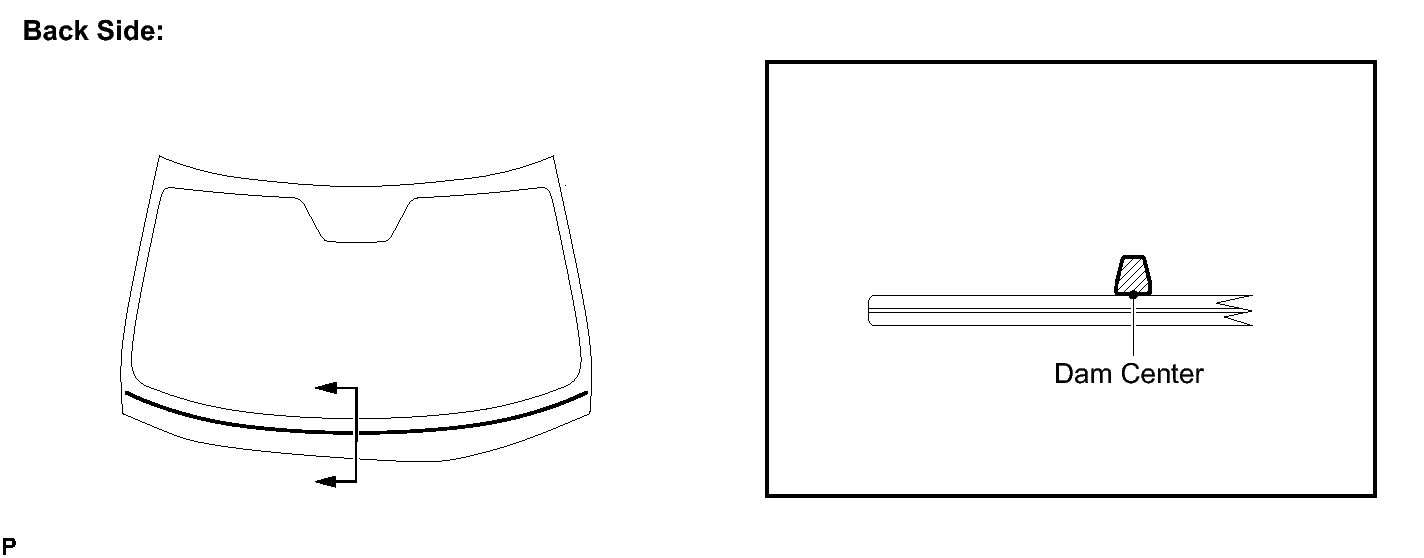

      Fig 7: Identifying Adhesive Dam Onto Windshield Glass
      GTY118317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL WINDSHIELD GLASS ASSEMBLY
    1. Position the windshield glass assembly.

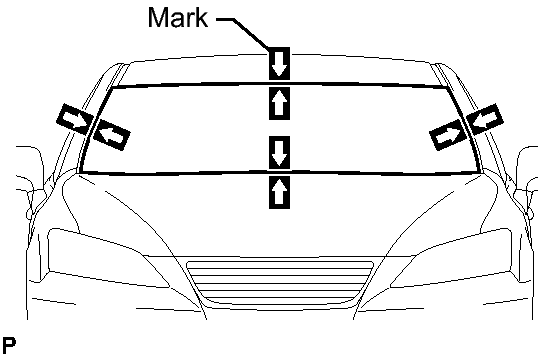

      Fig 8: Aligning Matchmarks On Windshield Glass And Vehicle Body
      GTY118313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, place the windshield glass assembly in the correct position.
      2. Check that the whole contact surface of the windshield glass rim is perfectly even.
      3. Align the matchmarks on the windshield glass and vehicle body.
        NOTE:

        Check that the windshield glass stoppers are attached to the vehicle body correctly.

      4. Remove the windshield glass assembly.
    2. Using a brush, coat the installation surface on the vehicle body with Primer M.
      NOTE:
      • Do not coat the adhesive with Primer M.
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer M for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

      Standard dimension

      Area Dimension
      A 20.0 mm (0.787 in.)
      B 43.7 mm (1.720 in.)
      C 70.2 mm (2.763 in.)

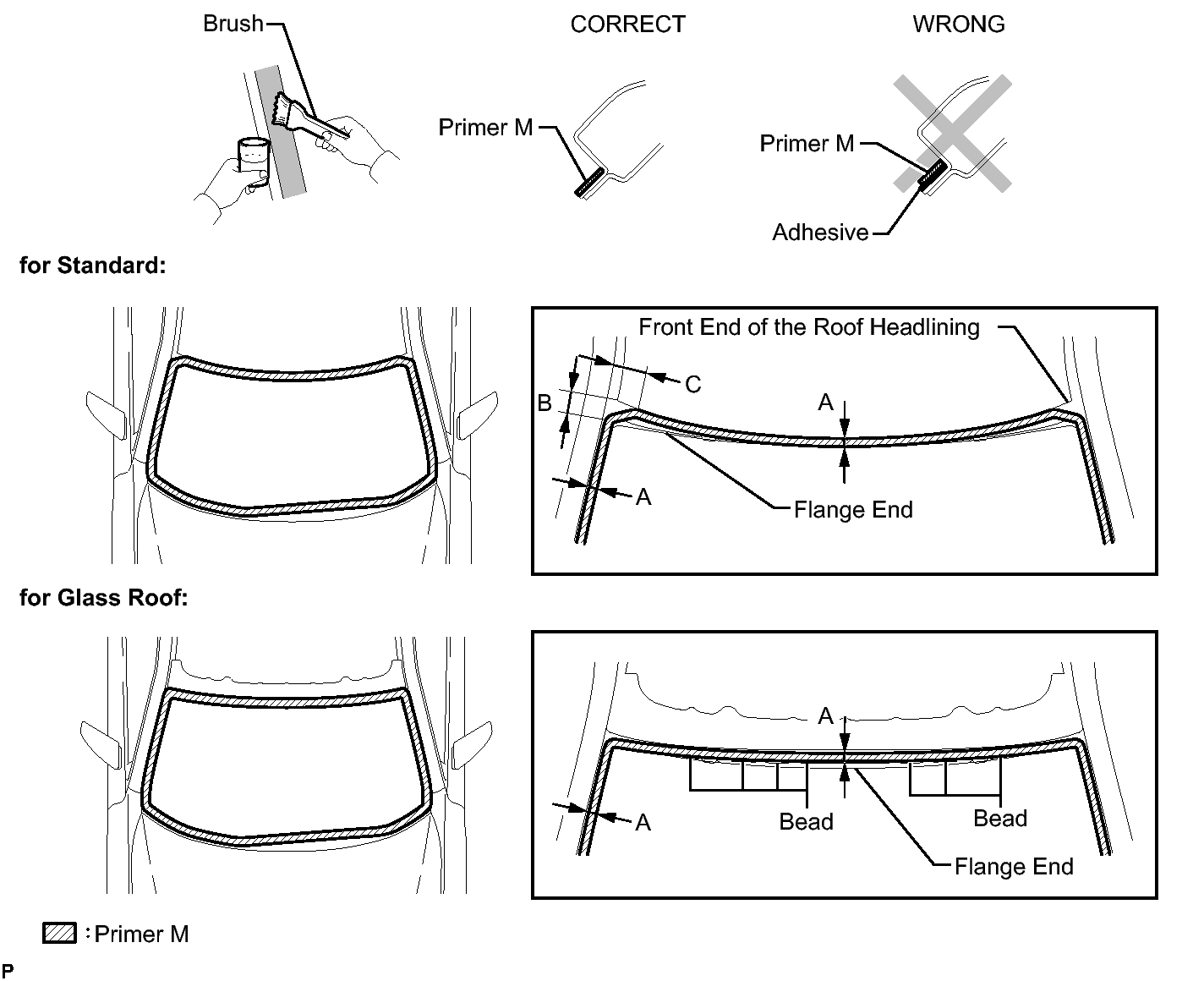

      Fig 9: Coating Installation Surface On Vehicle Body With Primer M
      GTY118319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a brush or sponge, coat the application area of adhesive with Primer G.
      NOTE:
      • Do not apply too much primer.
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not keep any of the opened Primer G for later use.

      HINT:

      If an area other than that specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

      Standard dimension

      Area Dimension
      a 8.7 mm (0.342 in.)
      b 12.0 mm (0.472 in.)
      c 28.6 mm (1.126 in.)
      d 12.0 mm (0.472 in.)
      e 8.7 mm (0.342 in.)
      f 12.0 mm (0.472 in.)
      g 12.0 mm (0.472 in.)
      h 6.4 mm (0.252 in.)

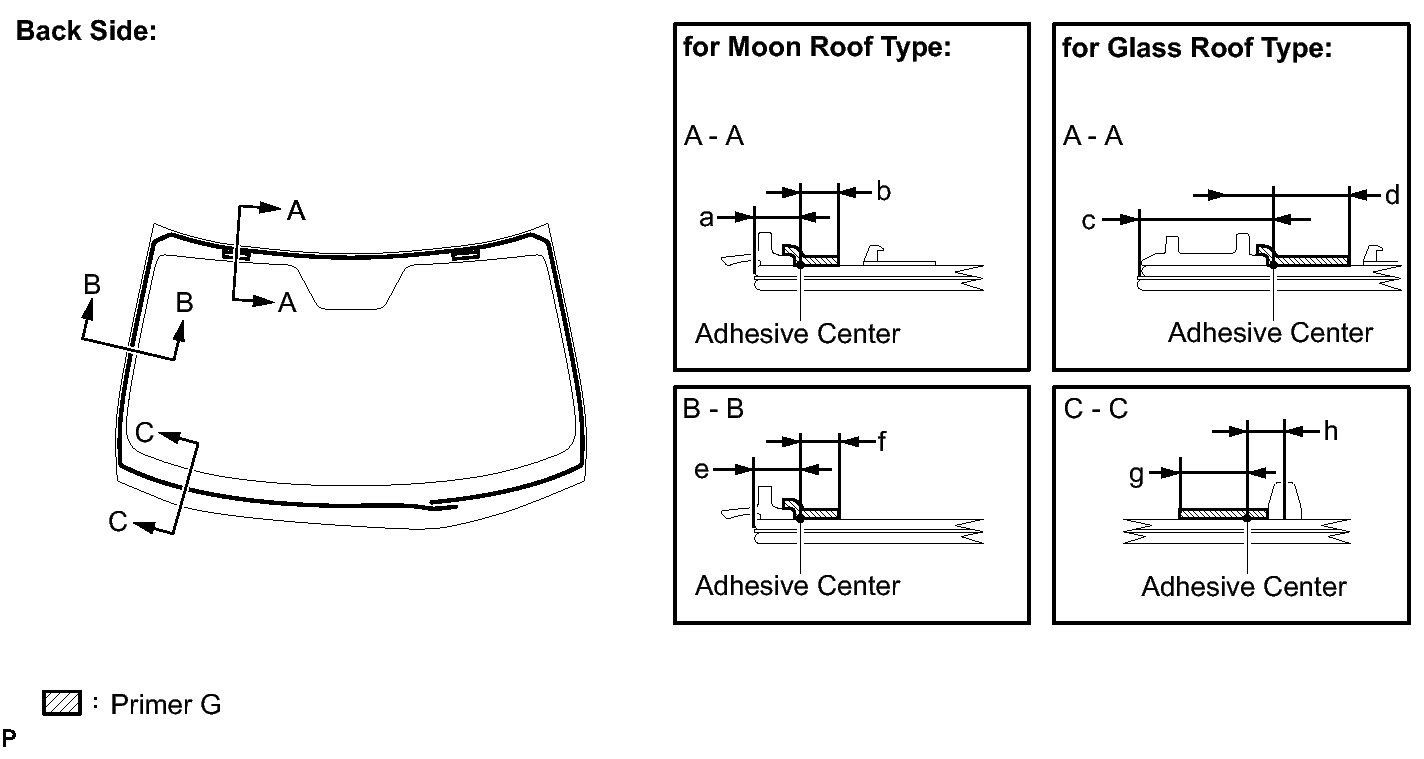

      Fig 10: Coating Application Area Of Adhesive With Primer G
      GTY118320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply adhesive (Adhesive: TOYOTA genuine windshield glass adhesive or equivalent).
      1. Cut off the tip of the cartridge nozzle, as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time described in the table below.

        Usage time frame

        Temperature Tack-free Time
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour and 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with cartridge.
      3. Apply adhesive to the windshield glass, as shown in the illustration.

        Standard dimension

        Area Dimension
        a 8.7 mm (0.342 in.)
        b 28.6 mm (1.126 in.)
        c 8.7 mm (0.342 in.)
        d 6.4 mm (0.252 in.)
        e 12.0 mm (0.472 in.)
        f 8.0 mm (0.315 in.)

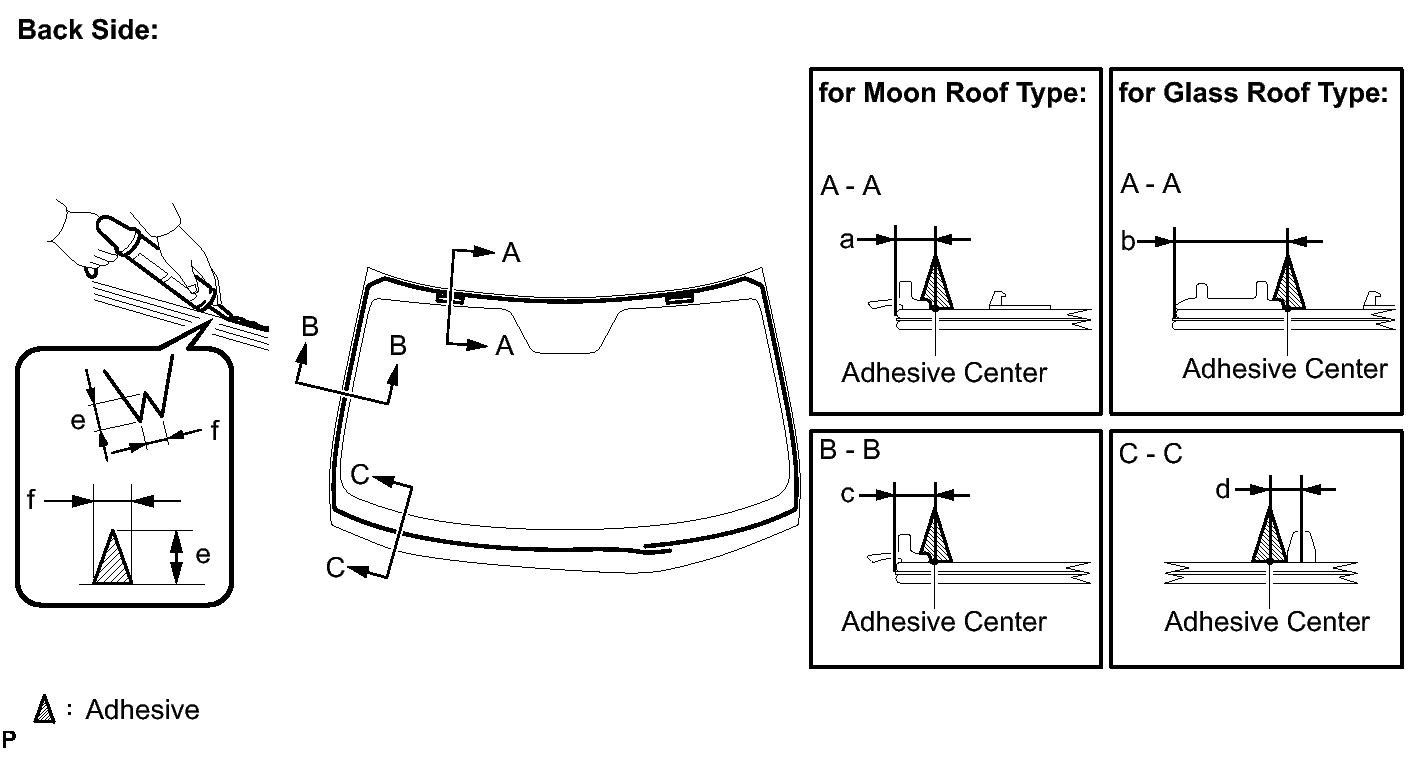

        Fig 11: Applying Adhesive To Windshield Glass
        GTY123940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the windshield glass assembly.

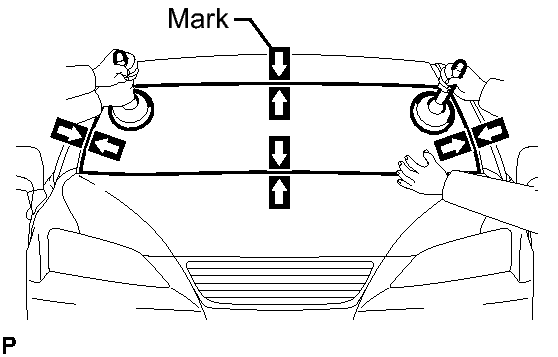

      Fig 12: Positioning Windshield Glass Using Suction Cup
      GTY118321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a suction cup, position the windshield glass so that the matchmarks are aligned, and press it in gently along the rim.
        NOTE:
        • Check that the windshield glass stoppers are attached to the vehicle body correctly.
        • Check the clearance between the vehicle body and windshield glass.
      2. Lightly press the front surface of the windshield glass to ensure a close fit.

        HINT:

        Press the glass with force of 98 N (10 kgf, 22 lb) or more.

      3. If necessary, use a scraper to correct the level or position of adhesive that has been applied.

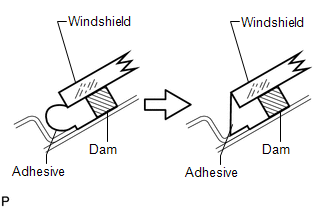

        Fig 13: Identifying Adhesive And Dam Location
        GTY117605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Apply adhesive onto the windshield glass rim.

      4. Hold the windshield glass using protective tape until applied adhesive becomes hard.
        NOTE:

        Do not drive the vehicle for the time described in the table below.

        Minimum time

        Temperature Minimum time prior to driving vehicle
        35°C (95°F) 1 hour and 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
  10. CHECK FOR LEAKS AND REPAIR
    1. After the adhesive has hardened, apply water from the outside of the vehicle. Check that no water leaks into the cabin.
    2. If water leaks into the cabin, allow the water to dry and add adhesive.
    3. Remove the protective tape.
  11. INSTALL ROOF HEADLINING ASSEMBLY (for Standard)

    Return the front section of the roof headlining assembly to the original position. Refer to INSTALLATION - Step 5 .

  12. INSTALL ROOF HEADLINING ASSEMBLY (for Glass Roof)

    Return the front section of the roof headlining assembly to the original position. Refer to INSTALLATION - Step 6 .

  13. INSTALL ASSIST GRIP SUB-ASSEMBLY  . Refer to INSTALLATION - Step 7
  14. INSTALL VISOR HOLDER  . Refer to INSTALLATION - Step 11
  15. INSTALL VISOR ASSEMBLY LH  . Refer to INSTALLATION - Step 12
  16. INSTALL VISOR ASSEMBLY RH  . Refer to INSTALLATION - Step 13
  17. INSTALL VISOR BRACKET COVER  . Refer to INSTALLATION - Step 14
  18. INSTALL ROOF CONSOLE BOX ASSEMBLY  . Refer to INSTALLATION - Step 15
  19. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 47
  20. INSTALL SIDE INSTRUMENT PANEL LH  . Refer to INSTALLATION - Step 46
  21. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION - Step 49
  22. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 50
  23. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 57
  24. INSTALL SIDE INSTRUMENT PANEL RH  . Refer to INSTALLATION - Step 32
  25. INSTALL FRONT DOOR OPENING TRIM COVER RH  . Refer to INSTALLATION - Step 59
  26. INSTALL FRONT DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 60
  27. INSTALL RAIN SENSOR TAPE (w/ Rain Sensor)

    HINT:

    This step should be performed only when the rain sensor tape needs to be replaced. Refer to INSTALLATION - Step 1 .

  28. INSTALL RAIN SENSOR (w/ Rain Sensor)  . Refer to INSTALLATION - Step 2
  29. INSTALL RAIN SENSOR COVER (w/ Rain Sensor)  . Refer to INSTALLATION - Step 3
  30. INSTALL INNER REAR VIEW MIRROR ASSEMBLY  . Refer to INSTALLATION - Step 1
  31. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  . Refer to INSTALLATION - Step 2
  32. TEMPORARILY TIGHTEN NO. 1 SLIDING ROOF GLASS SUB-ASSEMBLY (for Glass Roof)  . Refer to INSTALLATION - Step 89
  33. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  34. ADJUST NO. 1 SLIDING ROOF GLASS SUB-ASSEMBLY (for Glass Roof)  . Refer to INSTALLATION - Step 90
  35. INSTALL SLIDING ROOF SIDE GARNISH LH (for Glass Roof)  . Refer to INSTALLATION - Step 91
  36. INSTALL SLIDING ROOF SIDE GARNISH RH (for Glass Roof)  . Refer to INSTALLATION - Step 92
  37. CHECK FOR WATER LEAKS (for Glass Roof)  . Refer to INSTALLATION - Step 93
  38. INSTALL FRONT FENDER TO COWL SIDE SEAL RH

    HINT:

    In cases where double-sided tape cannot be reused. Refer to INSTALLATION - Step 3 .

  39. INSTALL FRONT FENDER TO COWL SIDE SEAL LH

    HINT:

    In cases where double-sided tape cannot be reused. Refer to INSTALLATION - Step 4 .

  40. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
    NOTE:

    When installing the cowl top ventilator louver sub-assembly, hold the front fender to cowl side seals by hand to prevent them from coming off the windshield. The front fender to cowl side seals are attached to the windshield with double-sided tape. Once the front fender to cowl side seals come off, the adhesion of the tape is reduced. The double-sided tape is not available as a supply part. If the tape loses its adhesion, it is necessary to apply new high-heat resistant double-sided tape and install the front fender to cowl side seals to the windshield. Refer to INSTALLATION - Step 5 .

  41. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 6
  42. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  43. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 8
  44. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 9
  45. INSTALL HOOD HINGE COVER (for RH Side)  . Refer to INSTALLATION - Step 10
  46. INSTALL HOOD HINGE COVER (for LH Side)  . Refer to INSTALLATION - Step 11
  47. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 2
  48. PERFORM INITIALIZATION
    NOTE:

    Some systems need initialization after reconnecting the cable to the negative battery terminal. Refer to INITIALIZATION .

  49. CHECK SLIDING ROOF SYSTEM (for Glass Roof)

    Refer to ON-VEHICLE INSPECTION

  50. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM
