ACIS Control Circuit: Wiring Diagram

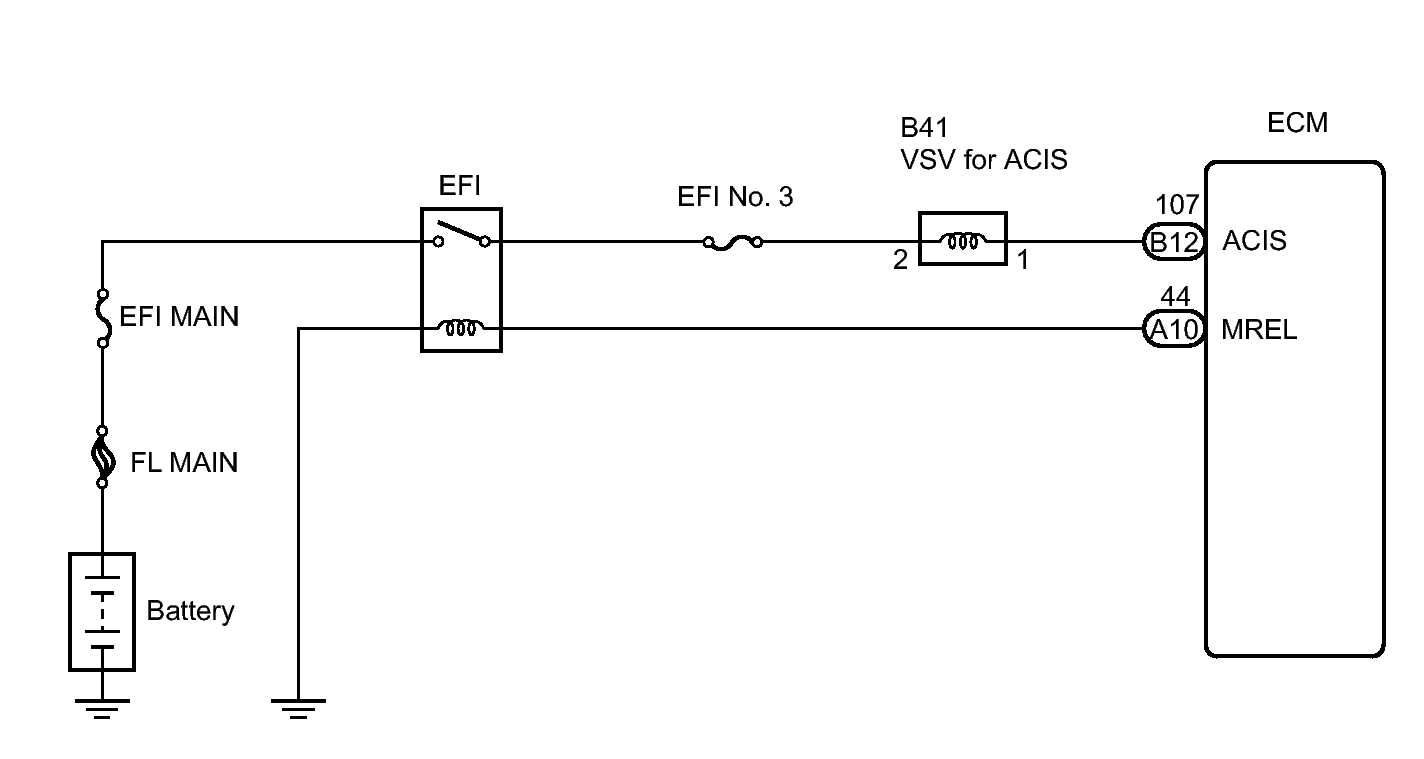

Fig 1: ACIS Control -- Wiring Diagram

GTY142970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
