Air Intake Control Circuit: Wiring Diagram

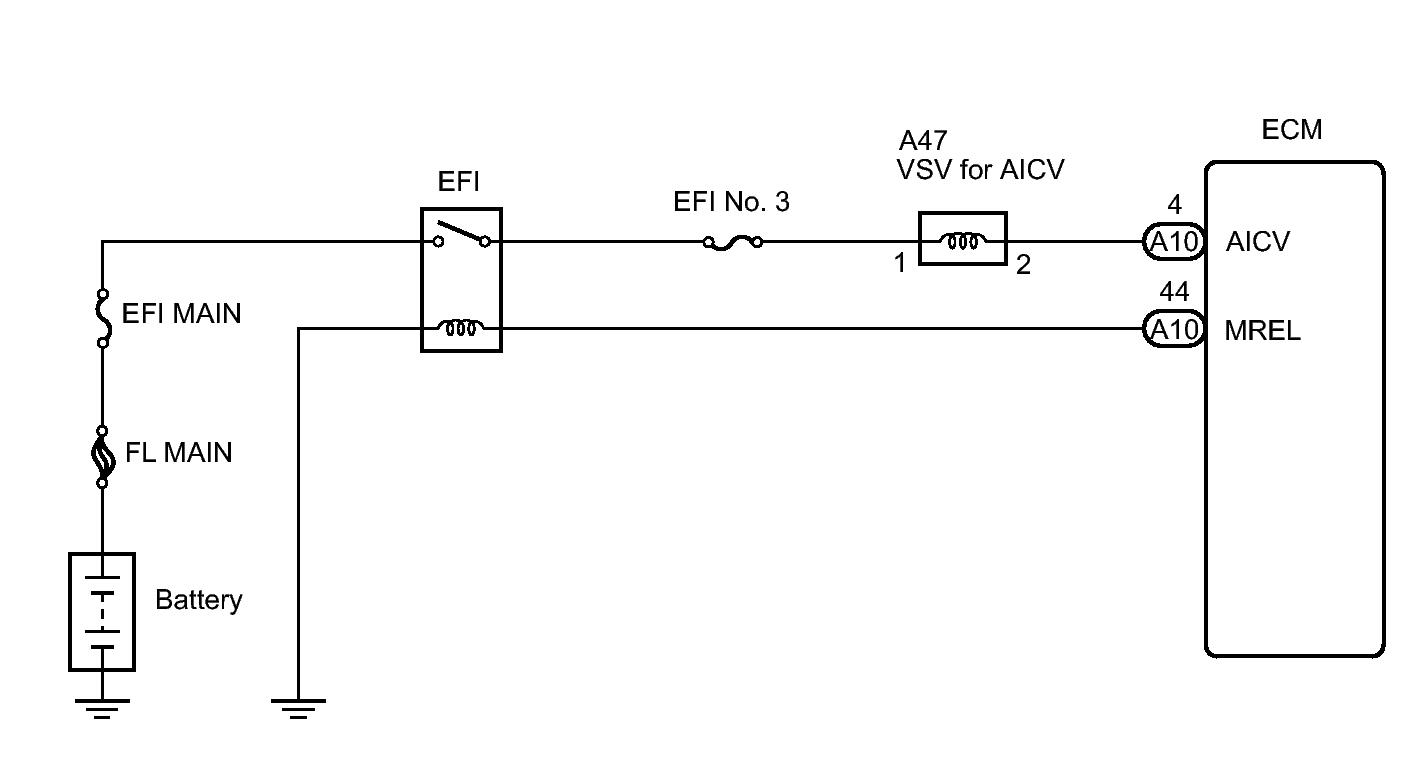

Fig 1: Air Intake Control -- Wiring Diagram
GTY132114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
