VC Output Circuit: Wiring Diagram

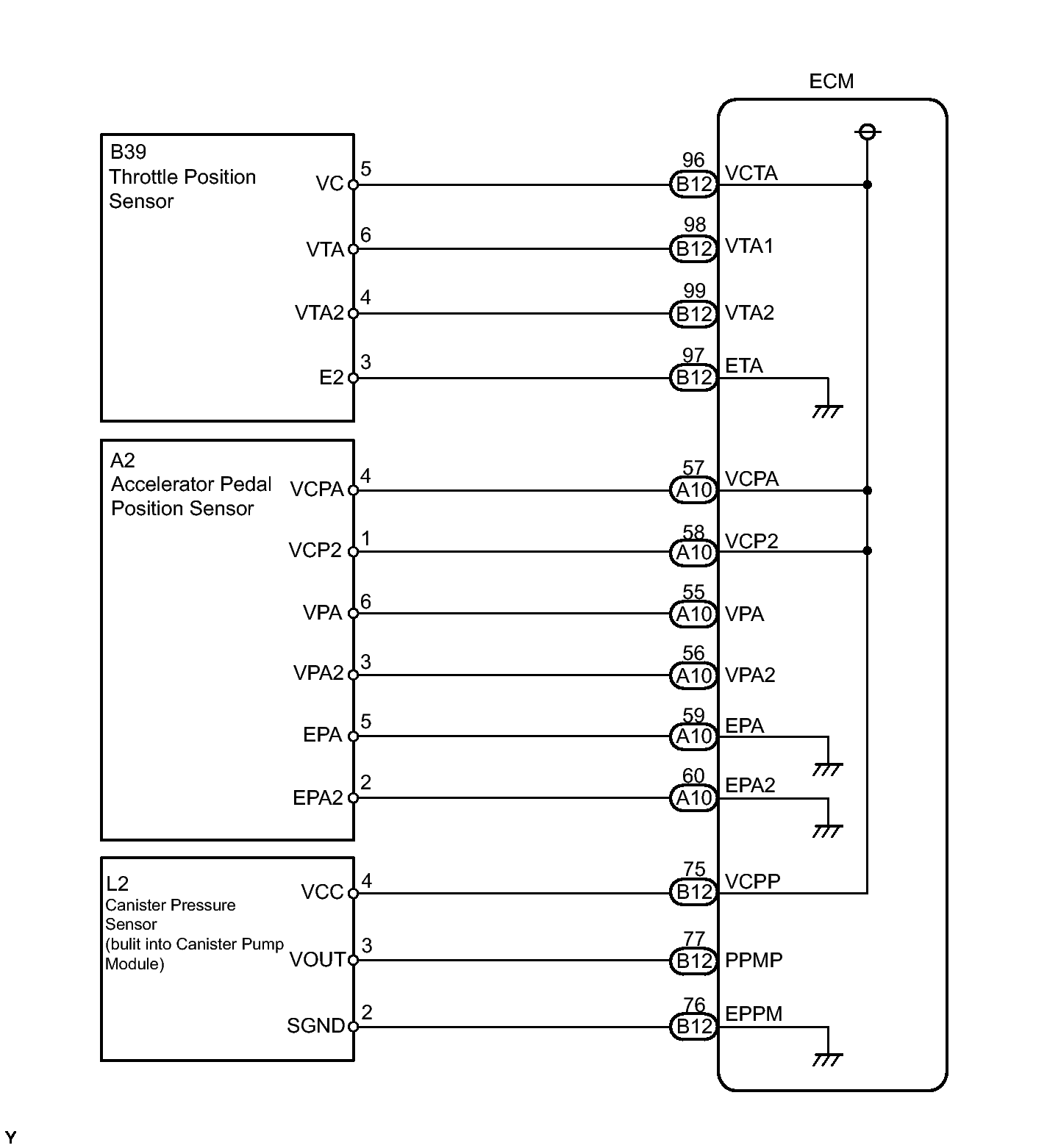

Fig 1: Identifying Throttle Position Sensor & ECM Wiring Diagram (1 Of 2)
GTY146854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Throttle Position Sensor & ECM Wiring Diagram (2 Of 2)
GTY147276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
