Parts Location: Illustration

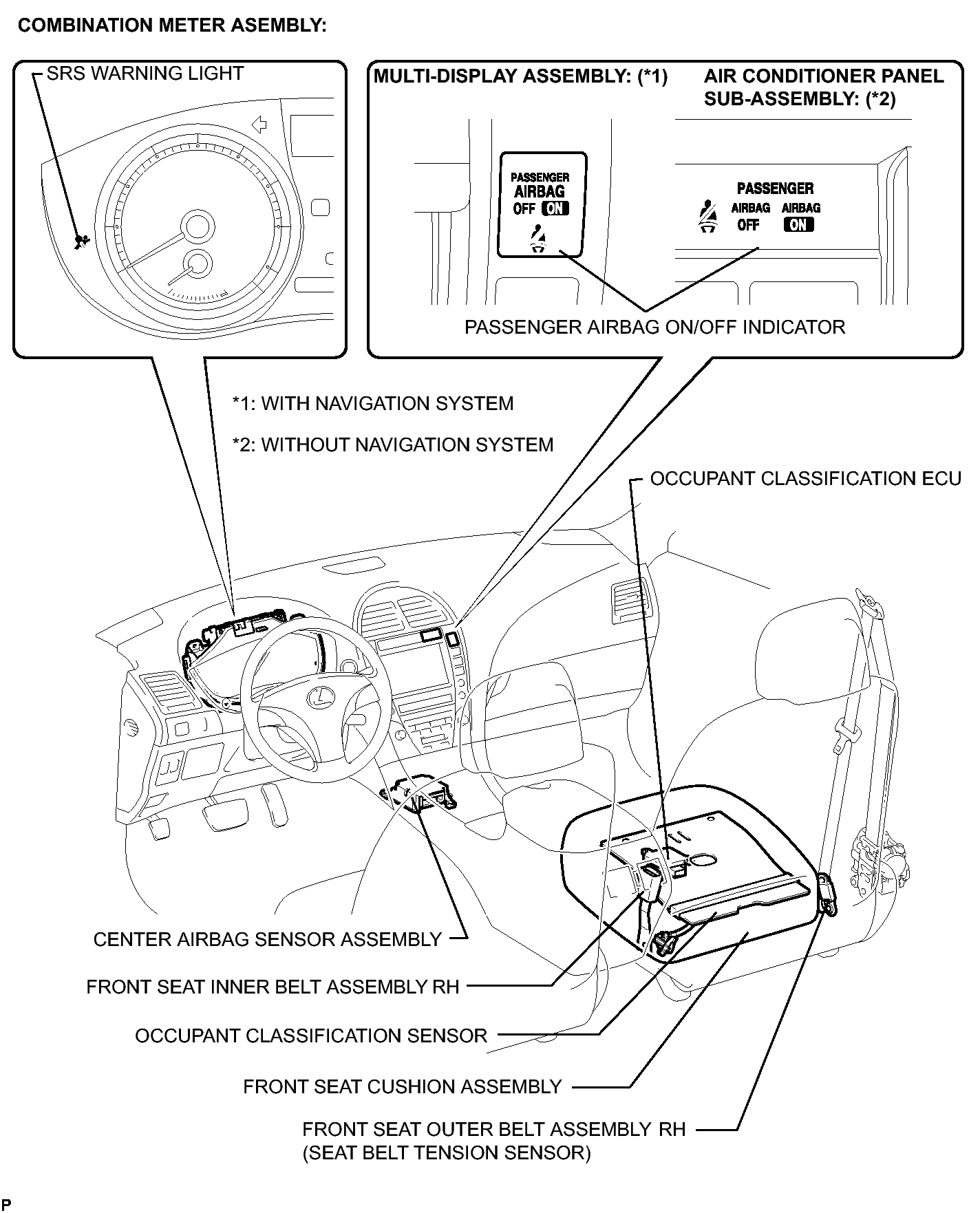

Fig 1: Occupant Classification System Component Locations
GTY126177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
