Shift Lever: Components: Illustration

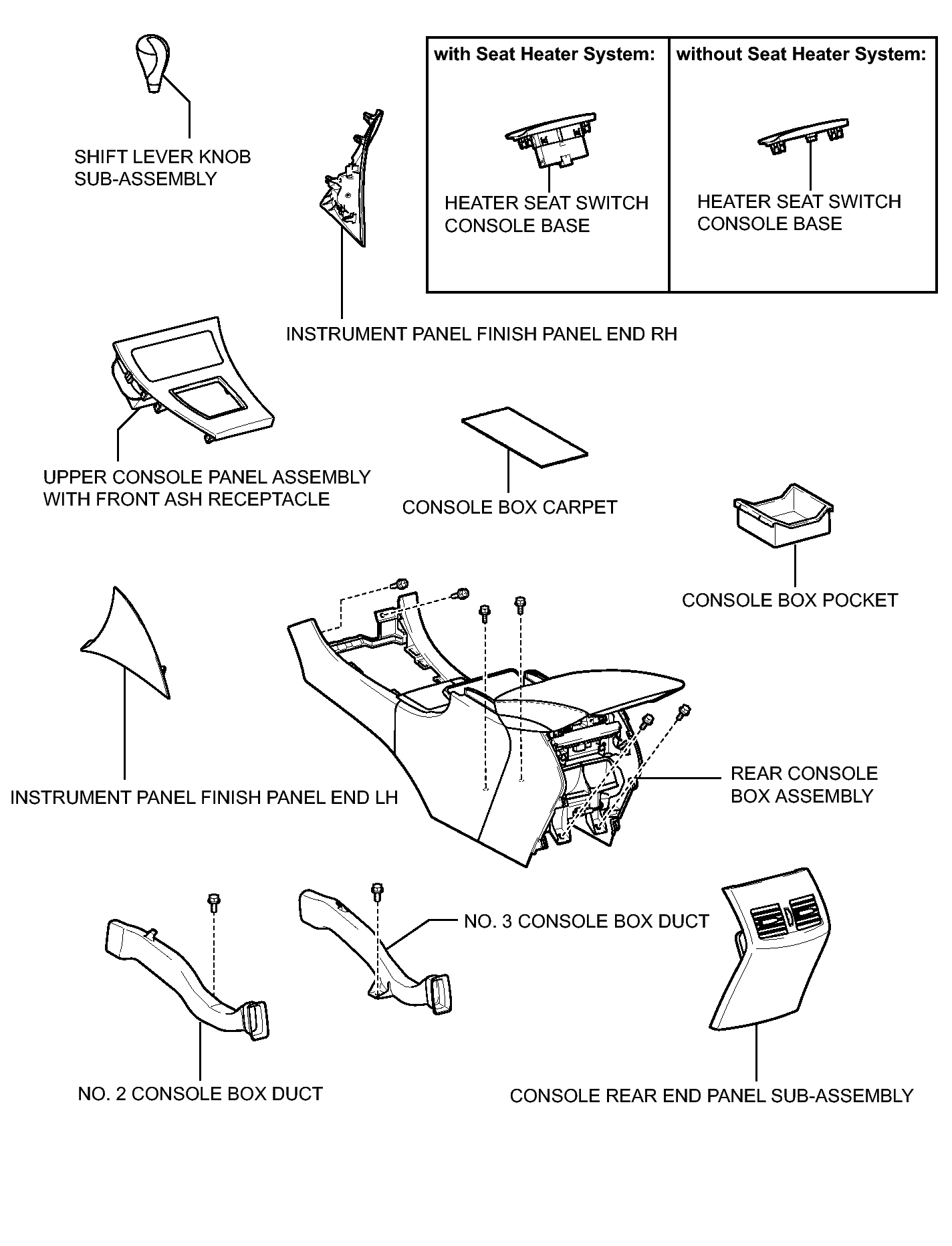

Fig 1: Identifying Shift Lever Replacement Components (1 Of 2)
GTY111437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

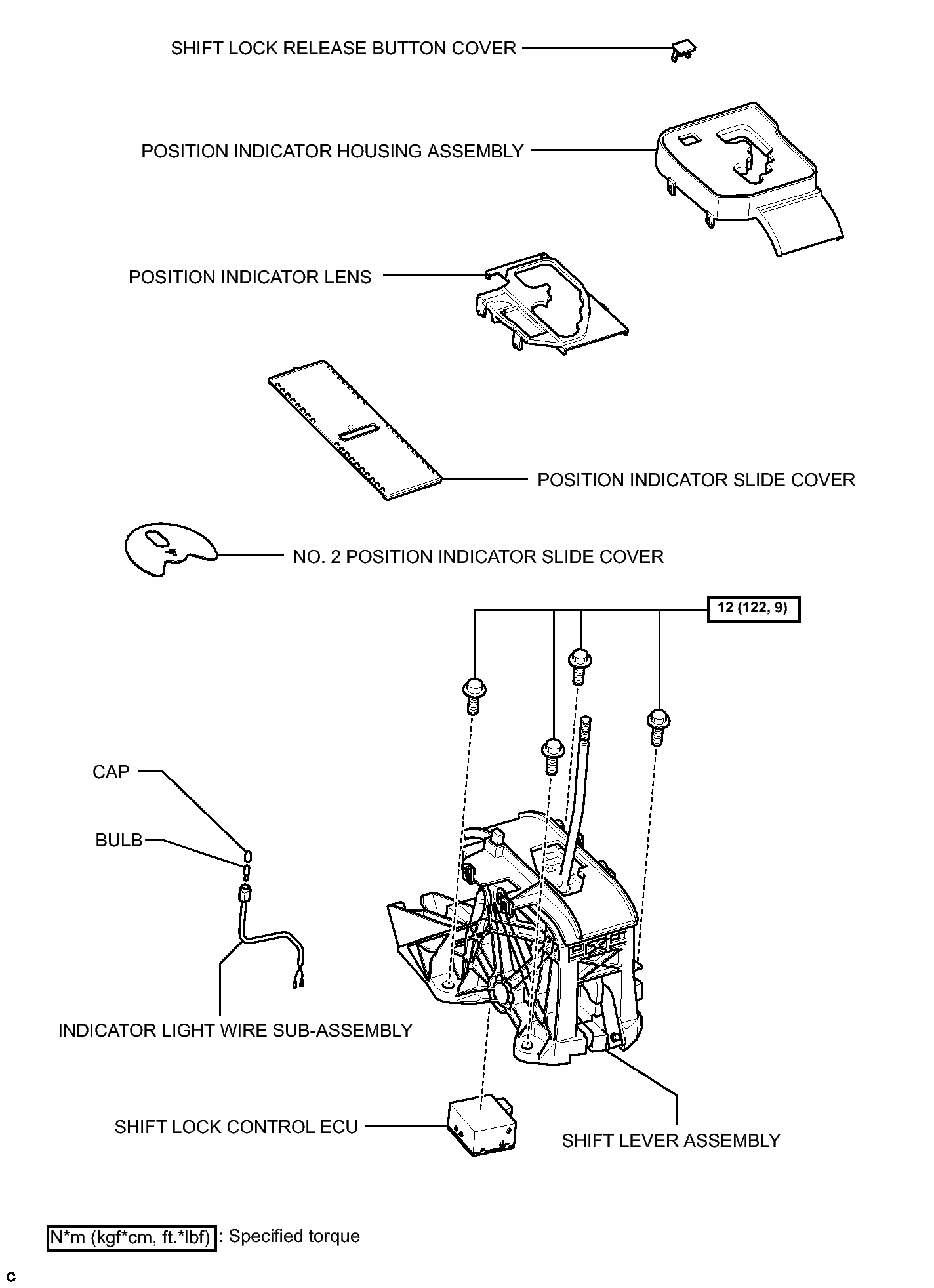

Fig 1: Identifying Shift Lever Replacement Components (2 Of 2)
GTY136526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
