Removal

SEAT: SEAT MEMORY SWITCH: REMOVAL

REMOVAL
HINT: Use the same procedures for the RH and LH side.





1. REMOVE DOOR INSIDE HANDLE BEZEL

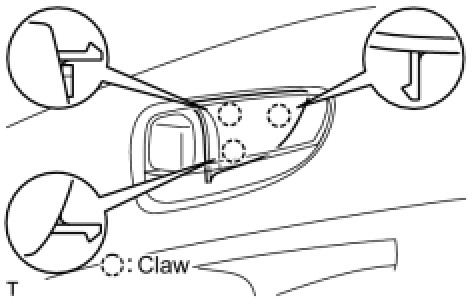

(a) Using a screwdriver, detach the 3 claws and remove the bezel.
HINT: Tape the screwdriver tip before use.

2. REMOVE FRONT DOOR TRIM PANEL ASSEMBLY





(a) Detach the 2 claws and remove the trim lower cover.





(b) Remove the screw.

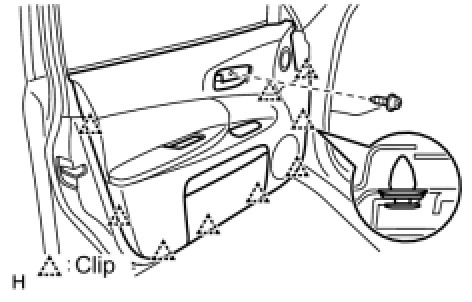

(c) Using a clip remover, detach the 9 clips and remove the trim cover.

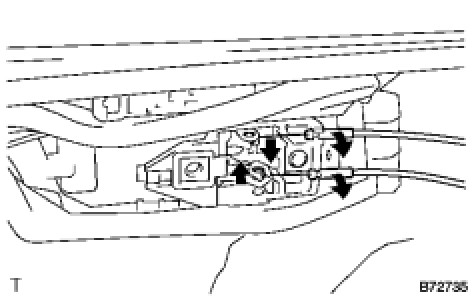

(d) Disconnect the 2 cables from the inside handle.





3. REMOVE SEAT MEMORY SWITCH LH
(a) Disconnect the connector.

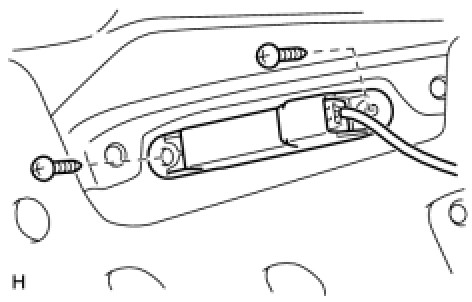

(b) Remove the 2 screws and memory switch.
