Fuel Pressure Sensor: Installation: Installation

  1. INSTALL FUEL PRESSURE SENSOR
    1. Install a new gasket to the fuel pressure sensor.
    2. Using SST, install the fuel pressure sensor to the No. 1 delivery pipe.

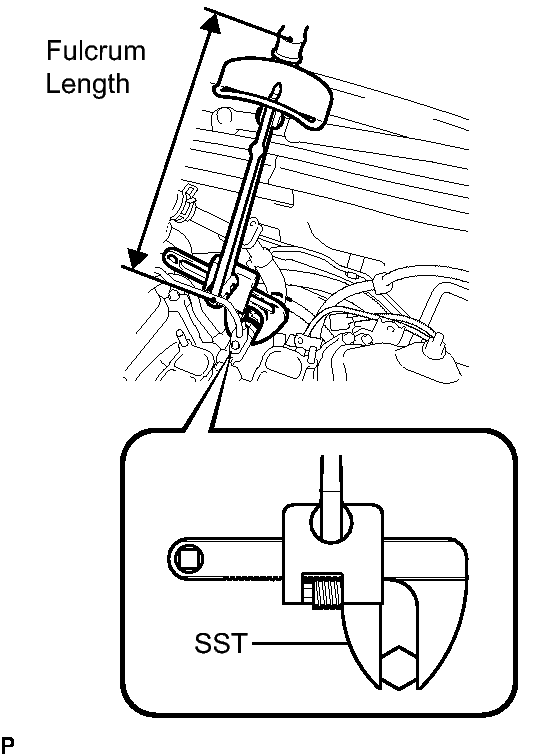

      Fig 1: Identifying Fulcrum Length
      GTY100577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST: 09922-10010

      without SST

      Torque: 42 N*m ( 428 kgf*cm, 31 ft.*lbf)

      with SST

      Torque: 32 N*m ( 324 kgf*cm, 23 ft.*lbf)

      HINT:

      • The torque for use with SST is the torque when SST is used at the position shown in the illustration.
      • Make sure SST and wrench are connected in a straight line.
    3. Connect the connector with the clamp.

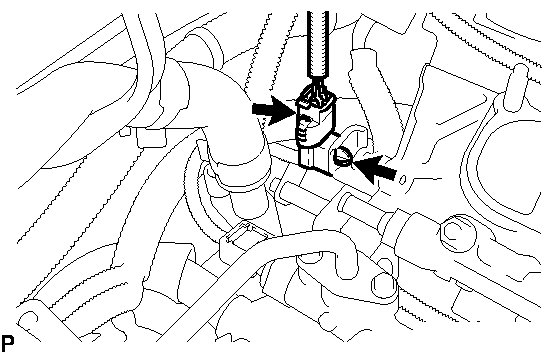

      Fig 2: Locating Connector With Clamp
      GTY104301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 FUEL PIPE  See step  9
  3. CONNECT WATER HOSE JOINT  See step  11
  4. INSTALL INTAKE MANIFOLD  See step  12
  5. INSTALL INTAKE AIR SURGE TANK  See step  3
  6. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY  . Refer to INSTALLATION - Step 1
  7. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE  . Refer to INSTALLATION - Step 2
  8. CONNECT NO. 2 VENTILATION HOSE  . Refer to INSTALLATION - Step 3
  9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 3
  10. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 6
  11. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 7
  12. INSTALL FRONT FENDER TO COWL SIDE SEAL LH  . Refer to INSTALLATION - Step 4
  13. INSTALL FRONT FENDER TO COWL SIDE SEAL RH  . Refer to INSTALLATION - Step 5
  14. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 9
  15. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH  . Refer to INSTALLATION - Step 10
  16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  17. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 6
  18. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 3
  19. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  20. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 132
  21. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 133
  22. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 134
  23. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 135
  24. CHECK FUNCTION OF THROTTLE BODY WITH MOTOR ASSEMBLY  . Refer to ON-VEHICLE INSPECTION - Step 1
  25. PERFORM INITIALIZATION
    1. Perform initialization Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.
