System Diagram

WARNING: This page is about a different car, the 2009 Lexus GS 460. However, it is still accessible from the selected car via links, so may be relevant.

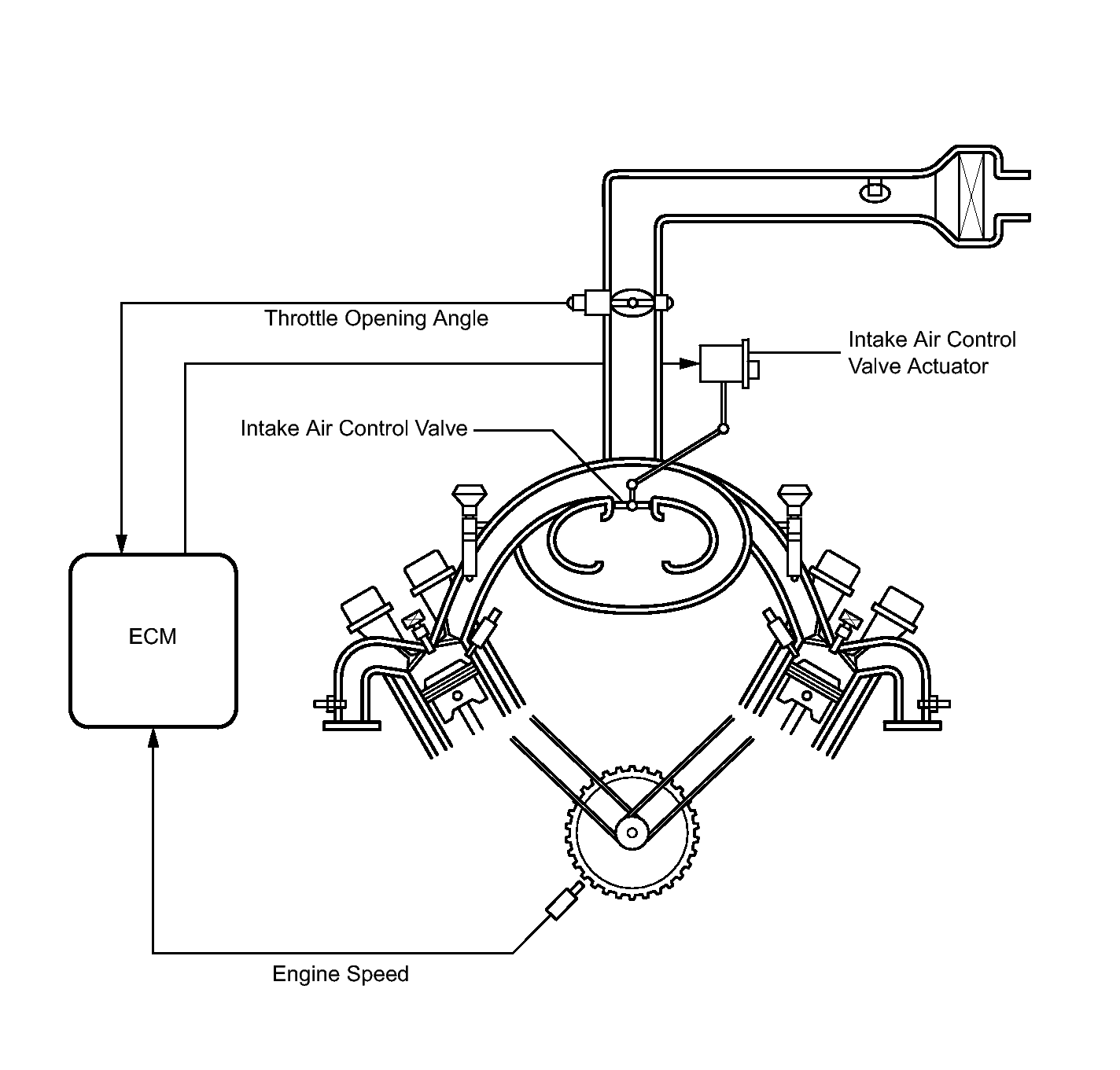

Fig 1: Intake System Diagram (1 Of 2)
GTY105536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

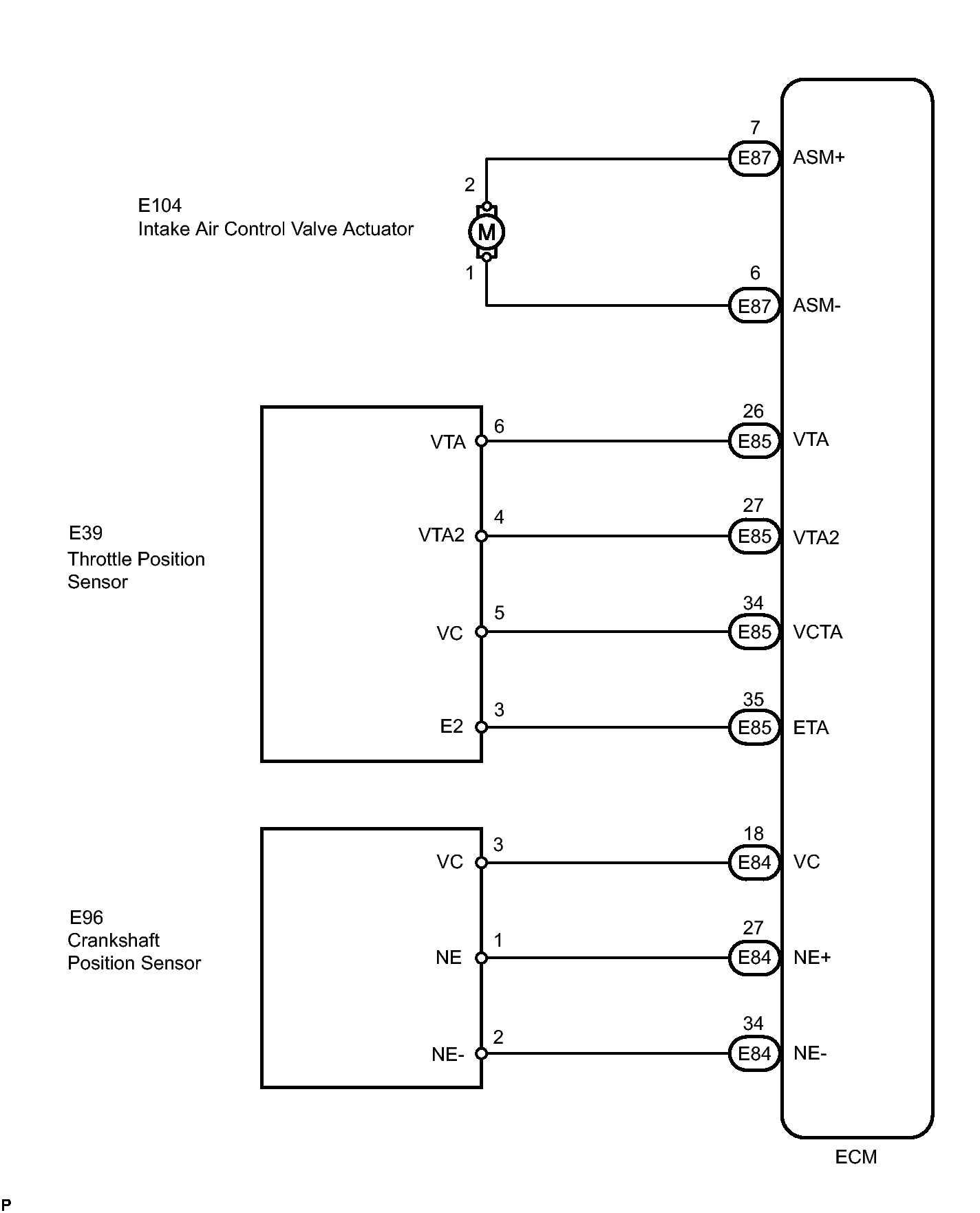

Fig 2: Intake System Diagram (2 Of 2)
GTY103124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
