Driver Side Power Window Does Not Operate with Power Window Master Switch: Wiring Diagram

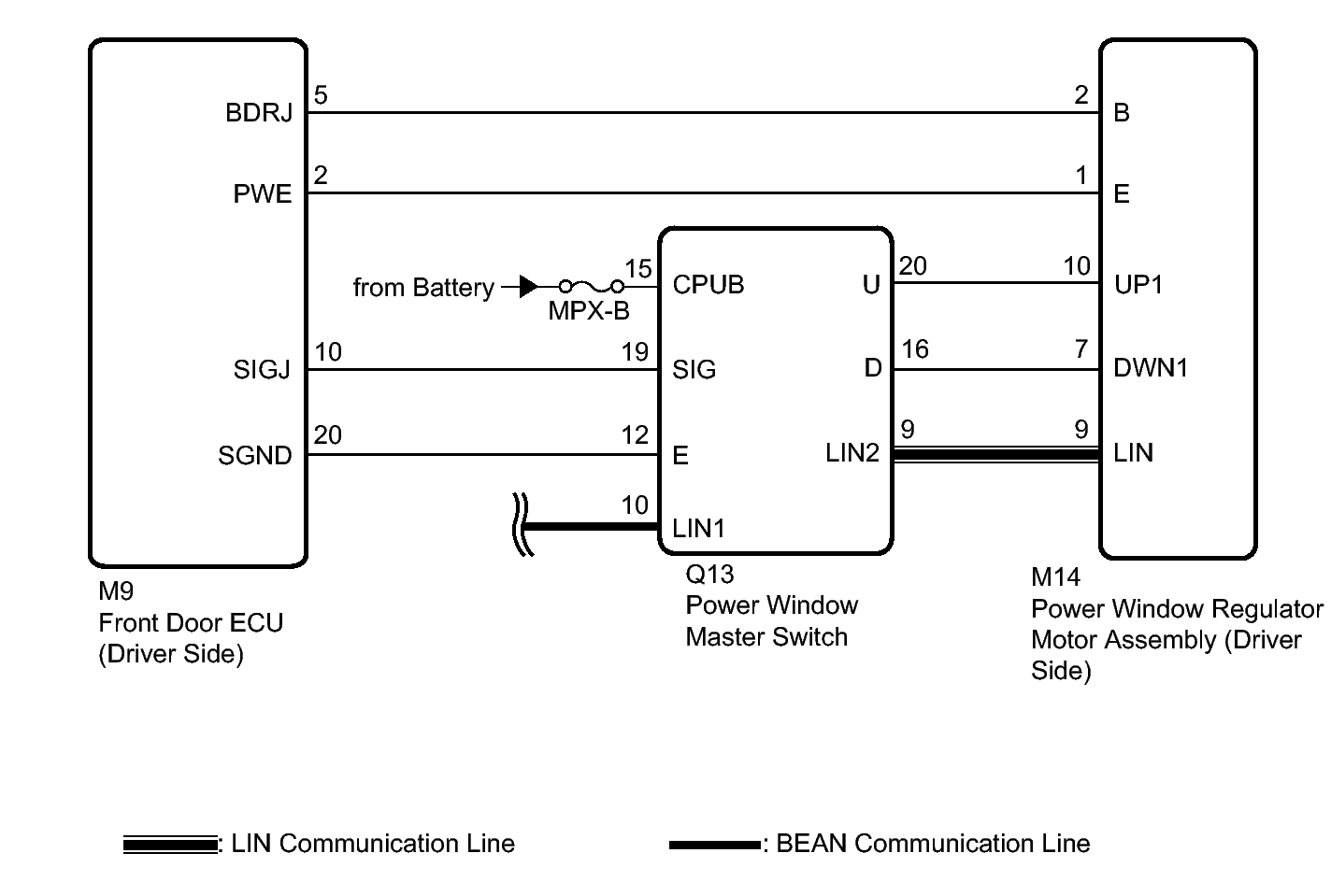

Fig 1: Driver Side Power Window Master Switch Wiring Diagram
GTY115603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
