Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream ON.
3. Select the following menu items: Body / RR-Door Motor / Active Test.
4. Perform the Active Test according to the display on the Techstream.
   RR-DOOR MOTOR



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Power window	UP or OFF	-
   Power Window	Power window	DOWN or OFF	-

   OK

   Rear RH power window operates normally.

   WARNING:

   Be careful to avoid injuries as this test causes vehicle parts to move.

   During the Active Test, the jam protection function will not operate.

NG → See step   4

OK: Go to next step

1. Select the following menu items: Body / RR-Door Motor / Data List.
2. Read the Data List according to the display on the Techstream.
   RR-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Up SW	Rear RH power window manual up switch signal / ON or OFF	ON: Rear RH power window manual up switch is operated OFF: Rear RH power window manual up switch is not operated	-
   RR Door P/W Down SW	Rear RH power window manual down switch signal / ON or OFF	ON: Rear RH power window manual down switch is operated OFF: Rear RH power window manual down switch is not operated	-

   OK

   ON (switch operates) appears on screen.

NG → See step   3

OK → See step   8

1. Disconnect the S1 power window switch connector.
2. Disconnect the O3 rear door ECU connector.
   Fig 1: View Of S1 Power Window Switch Connector And O3 Rear Door ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   S1-5 (E) - O3-20 (SGND)	Always	Below 1 Ω
   S1-5 (E) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the O11 motor connector.

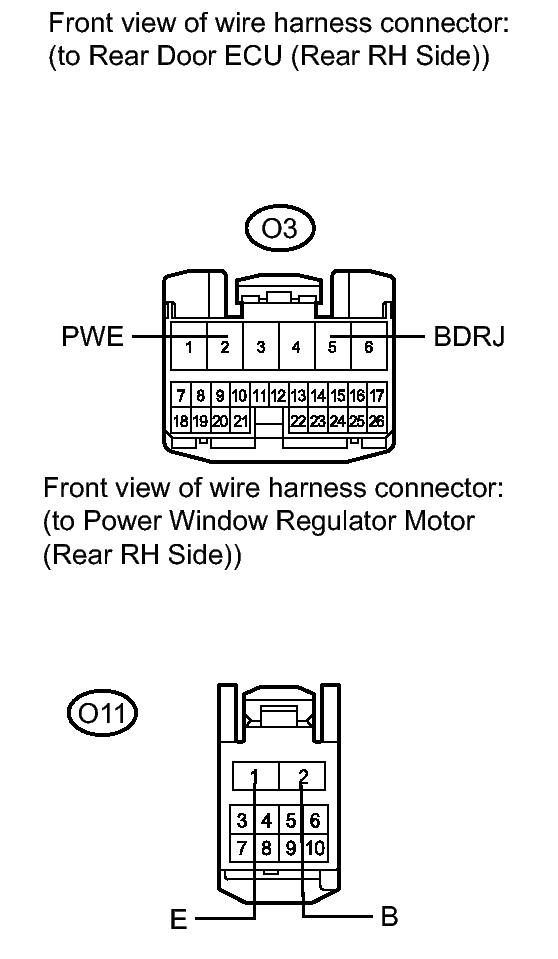

   Fig 2: Identifying Door ECU And Regulator Motor (Rear RH Side) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-5 (BDRJ) - O11-2 (B)	Always	Below 1 Ω
   O3-2 (PWE) - O11-1 (E)	Always	Below 1 Ω
   O3-5 (BDRJ) - Body ground	Always	10 kΩ or higher
   O3-2 (PWE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

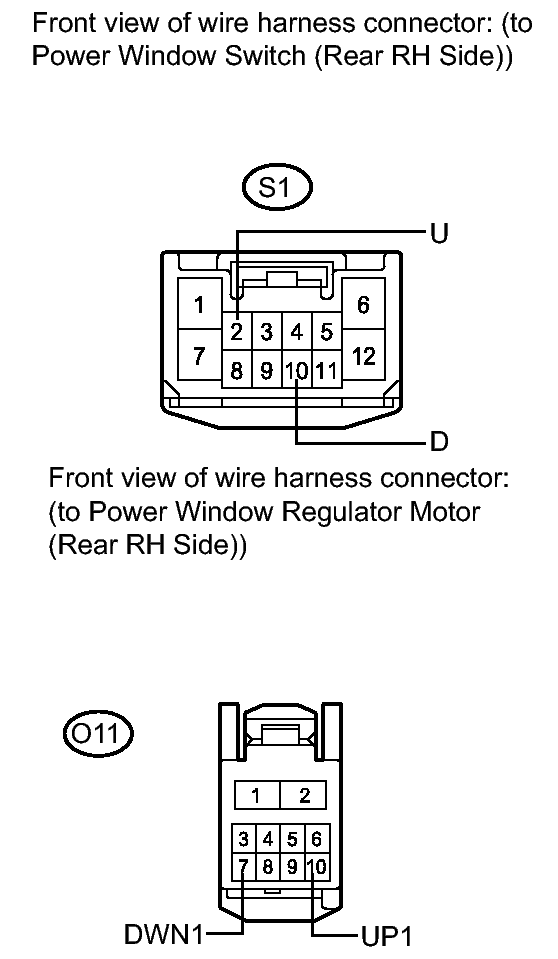

   Fig 3: Identifying Window Switch And Regulator Motor (Rear RH) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   S1-2 (U) - O11-10 (UP1)	Always	Below 1 Ω
   S1-10 (D) - O11-7 (DWN1)	Always	Below 1 Ω
   S1-2 (U) - Body ground	Always	10 kΩ or higher
   S1-10 (D) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

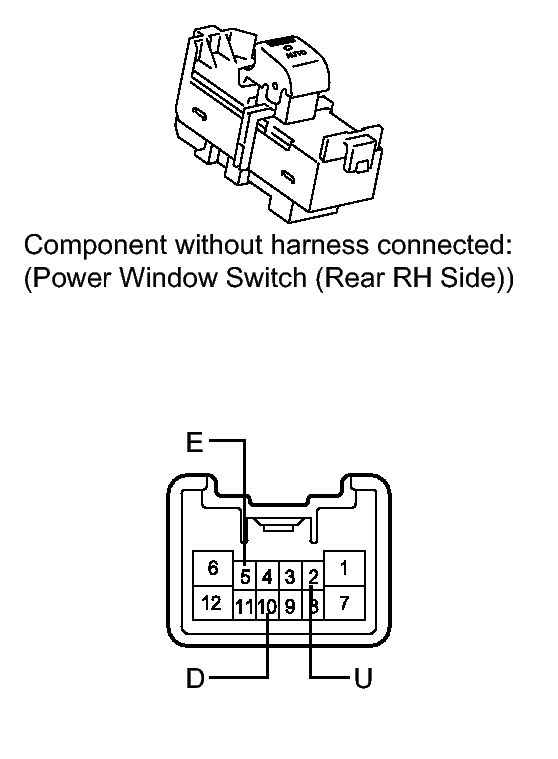

   Fig 4: Identifying Power Window Switch (Rear RH Side) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   2 (U) - 5 (E)	Manual UP operation	Below 1 Ω
   10 (D) - 5 (E)	Manual DOWN operation	Below 1 Ω

NG → See step   9

OK → See step   7
