Fuse Block

WARNING: This page is about a different car, the 2008 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

Luggage Room Left  (See Body )

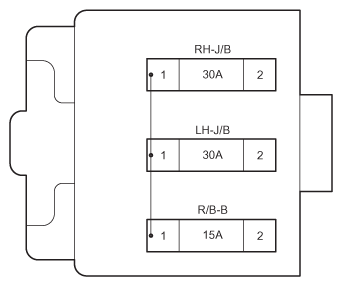

Fig 1: Fuse Block Luggage Room Connector Locations
G07613701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
