Installation

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION

INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

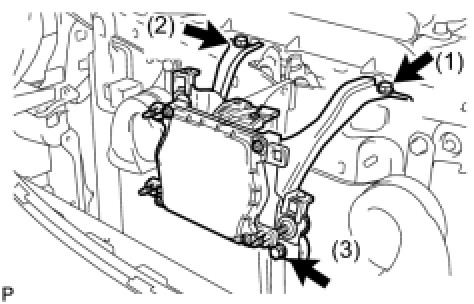

(a) Install the millimeter wave radar sensor assembly with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
HINT: Tighten the bolts in the order indicated in the illustration.

(b) Connect the sensor connector.
2. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY Adjustments
3. INSTALL FRONT BUMPER ASSEMBLY Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. PUT VEHICLE IN THESE CONDITION Adjustments
6. ADJUST FOG LIGHT AIM Installation
