1UR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR

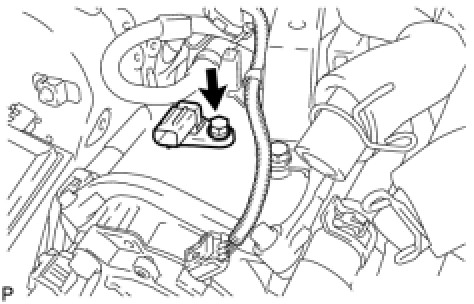

(a) Install the camshaft position sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

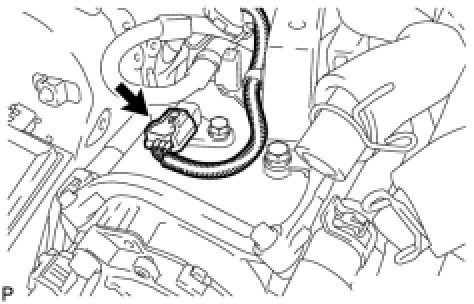

(b) Connect the camshaft position sensor connector.
2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
3. INSPECT FOR OIL LEAK
