1UR-FSE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

INSTALLATION

1. INSTALL VVT SENSOR

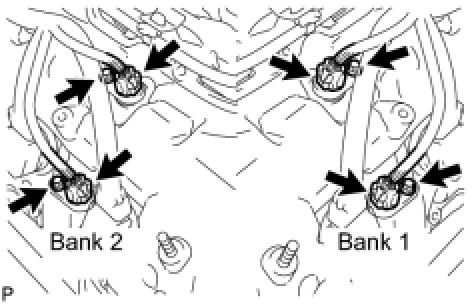

(a) Install the 4 VVT sensors with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the 4 VVT sensor connectors.
2. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
3. INSTALL NO. 1 AIR CLEANER INLET Installation
4. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
5. INSTALL ENGINE ROOM SIDE COVER RH Installation
6. INSTALL ENGINE ROOM SIDE COVER LH Installation
7. INSTALL COOL AIR INTAKE DUCT SEAL Installation
8. INSPECT FOR OIL LEAK
