Installation

1UR-FSE COOLING: COOLING FAN ECU: INSTALLATION

INSTALLATION

1. INSTALL COOLING FAN ECU

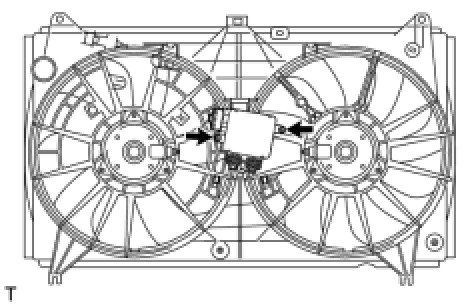

(a) Install the cooling fan ECU to the fan shroud with the 2 screws.
Torque: 2.6 Nm (26 kgf-cm, 23 in-lbf)

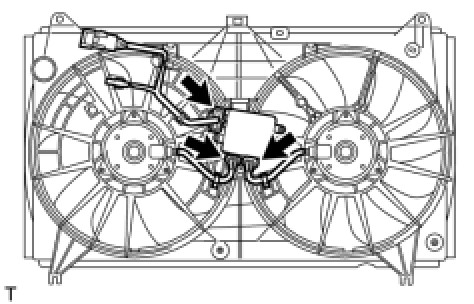

(b) Connect the 3 connectors to the cooling fan ECU.
2. INSTALL RADIATOR RESERVE TANK ASSEMBLY Installation
3. INSTALL NO. 1 AIR CLEANER INLET Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
