Keyless Entry Module: Testing and Inspection

DOOR LOCK: DOOR CONTROL RECEIVER: INSPECTION

INSPECTION

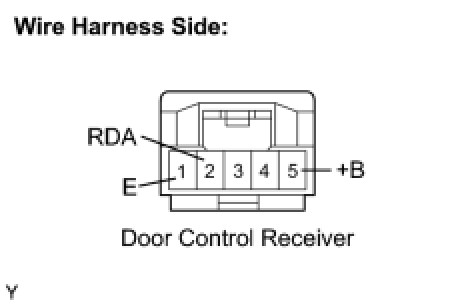

1. INSPECT DOOR CONTROL RECEIVER





(a) Disconnect the receiver connector.
(b) Check the voltage and resistance according to the value(s) in the table below.

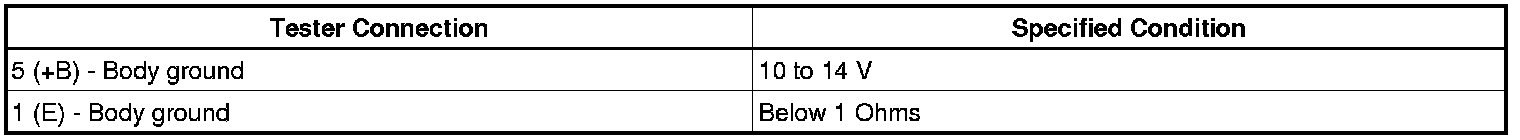

Standard:





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the connector and check the voltage according to the value(s) in the table below.
Standard voltage:





If the result is not as specified, the receiver may have a malfunction.
