Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

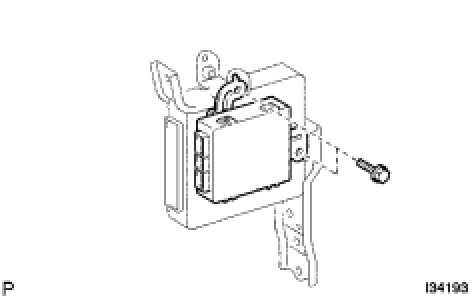

(a) Install the air conditioning amplifier assembly with the 2 bolts.
2. INSTALL ECM
3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO. 2
4. INSTALL INSTRUMENT PANEL ORNAMENT
5. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
6. INSTALL INSTRUMENT PANEL UNDER COVER NO. 2
7. INSTALL COWL SIDE TRIM BOARD RH
8. INSTALL FRONT DOOR SCUFF PLATE RH
