OTHER SYSTEM: VOLTAGE INVERTER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT VOLTAGE INVERTER
HINT: Remove interior parts so that the voltage inverter can be seen.





(a) Disconnect the voltage inverter connector.
(b) Measure the voltage according to the values in the table below.

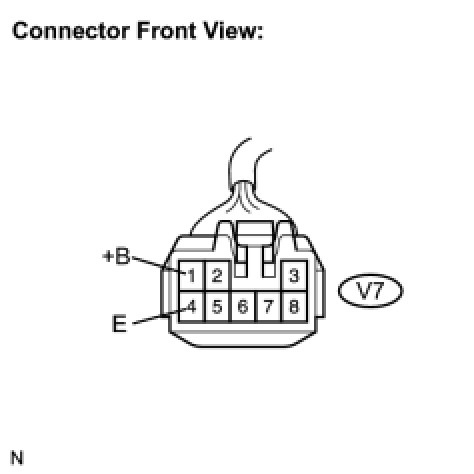

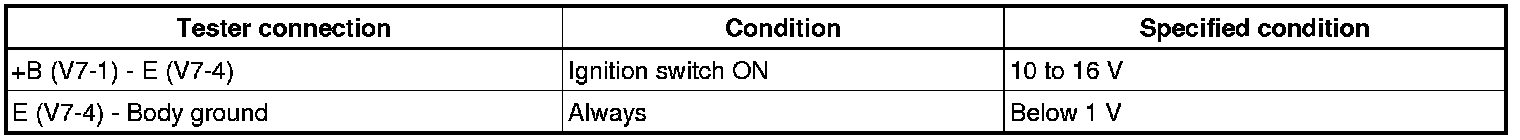

Input voltage:





HINT: If the result is not as specified, repair or replace harness or connector.





(c) Reconnect the voltage inverter connector.
(d) Measure the voltage according to the values in the table below.

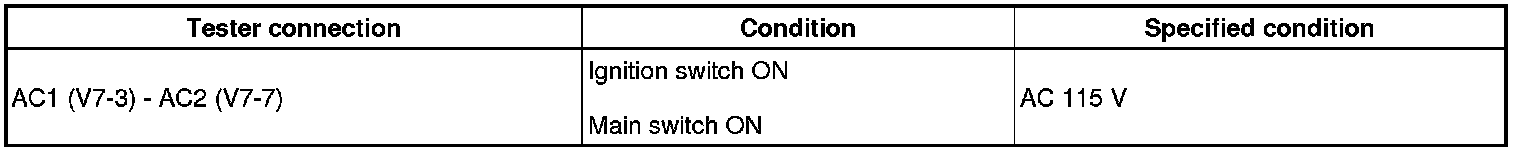

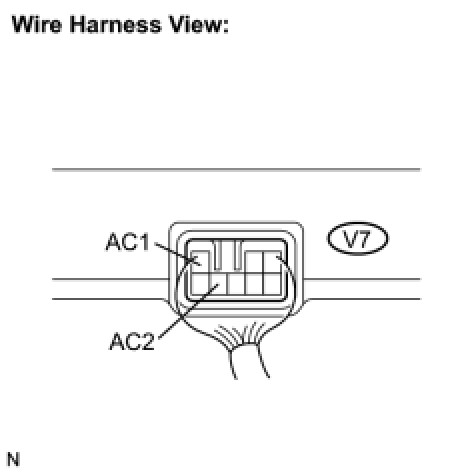

Output voltage:





HINT: If the result is not as specified, replace the voltage inverter.
