Power Mirror Control Module: Testing and Inspection

MIRROR: OUTER MIRROR CONTROL ECU: INSPECTION

INSPECTION

1. INSPECT OUTER MIRROR CONTROL ECU





(a) Disconnect the connector from the mirror control ECU assembly.

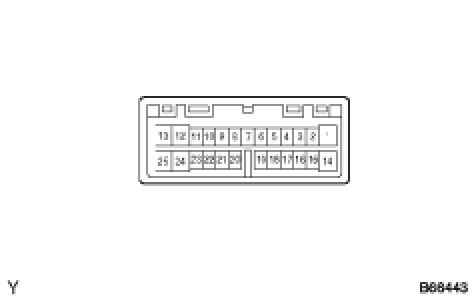

(b) Check the voltage or continuity of each terminal of the wire harness side connector.

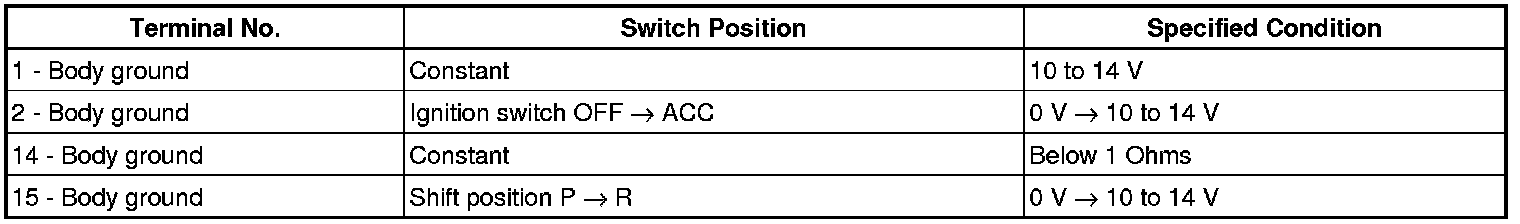

Standard:





If the result is not as specified, there may be a malfunction on the wire harness side.





(c) Connect the connector to the mirror control ECU assembly.
(d) Check the voltage or continuity of each terminal of the wire harness side connector.

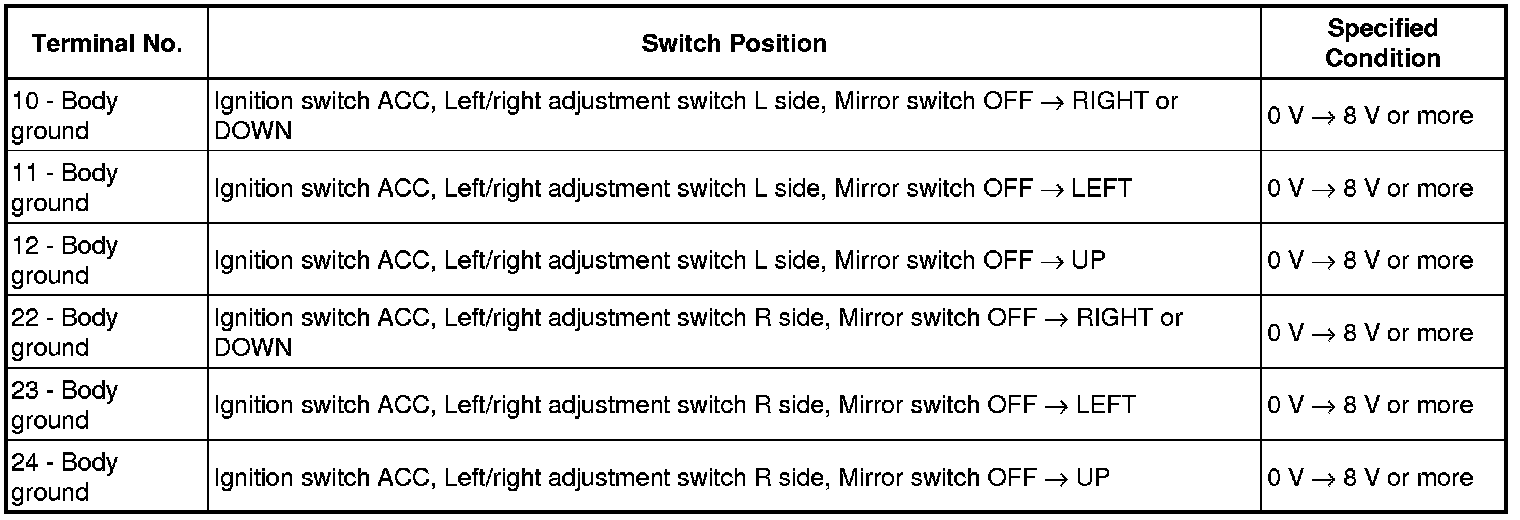

Standard voltage:





If the result is not as specified, replace the mirror assembly.

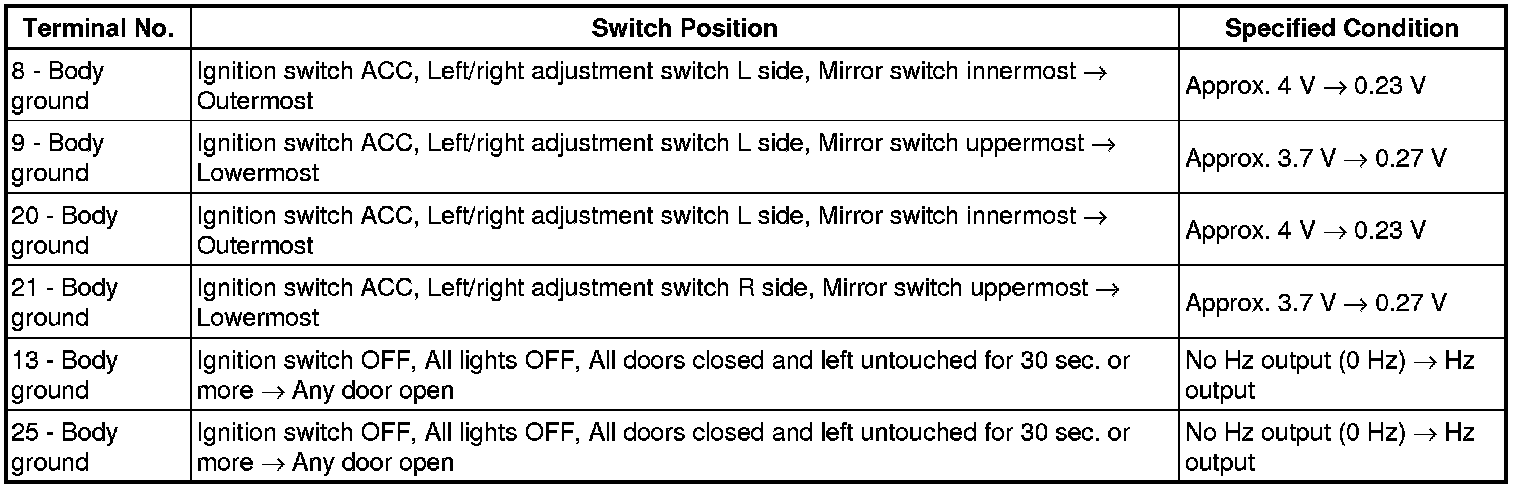

Standard voltage:





If the result is not as specified, replace the mirror assembly or the multiplex control may malfunction.
Standard voltage:





If the result is not as specified, replace the mirror control ECU assembly.
