Removal

WIPER AND WASHER: WIPER ECU: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR SCUFF PLATE RH Removal
3. REMOVE COWL SIDE TRIM BOARD RH Removal
4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
5. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY Removal
6. REMOVE INSTRUMENT PANEL ORNAMENT Removal
7. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO. 2
8. REMOVE DISC PLAYER CHANGER WITH BRACKET (WITH CD CHANGER)

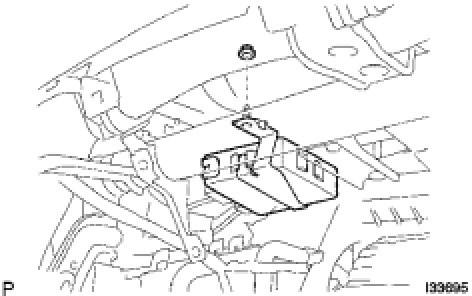

9. REMOVE WINDSHIELD WIPER ECU





(a) Disconnect the connector.
(b) Remove the screw and the wiper ECU.
