Service Data
SERVICE SPECIFICATIONS: A750F AUTOMATIC TRANSMISSION: SERVICE DATA

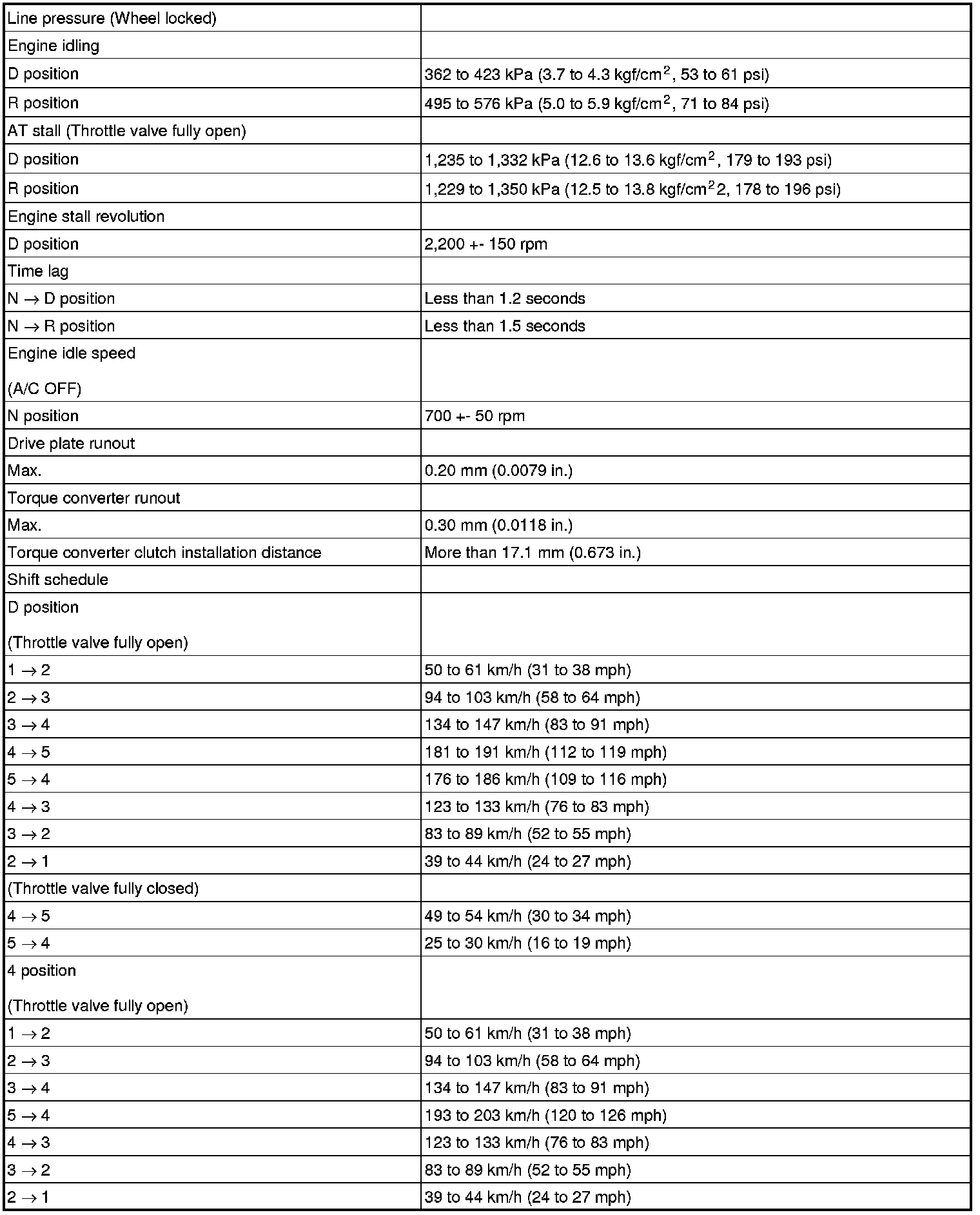

SERVICE DATA

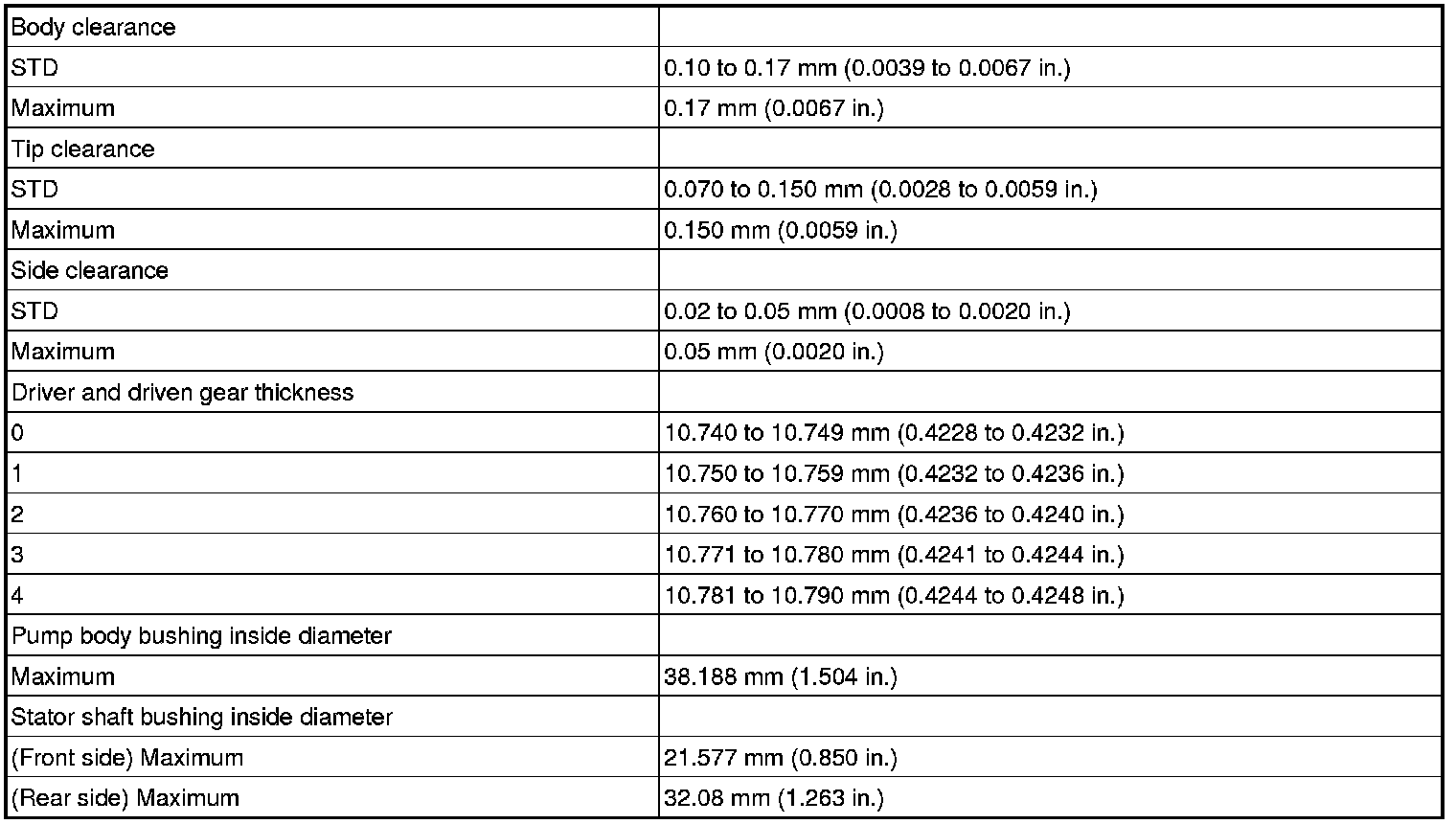

OIL PUMP
2nd BRAKE
B3 BRAKE

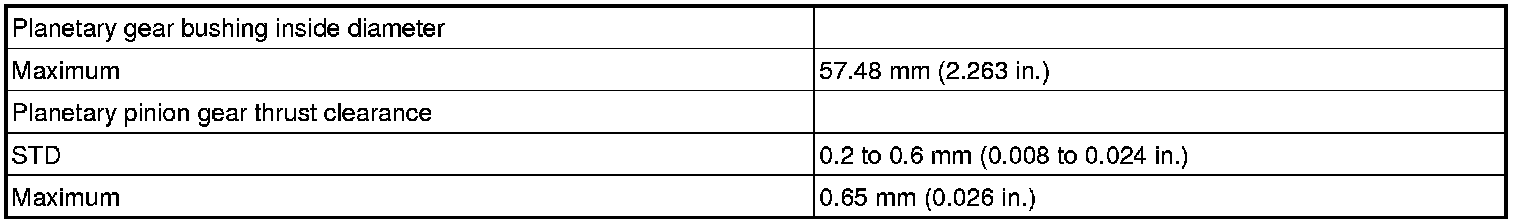

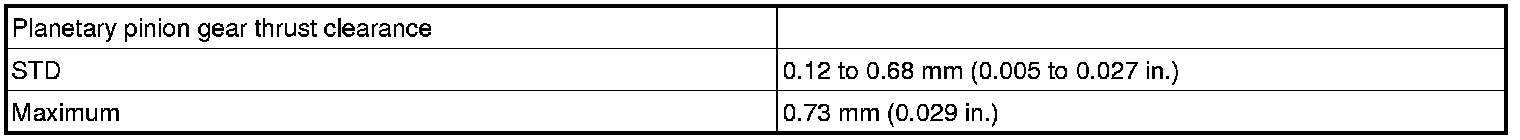

FRONT PLANETARY GEAR
BRAKE PISTON No. 1
CENTER PLANETARY GEAR
B2 BRAKE
RR PLANETARY RING GEAR FLANGE

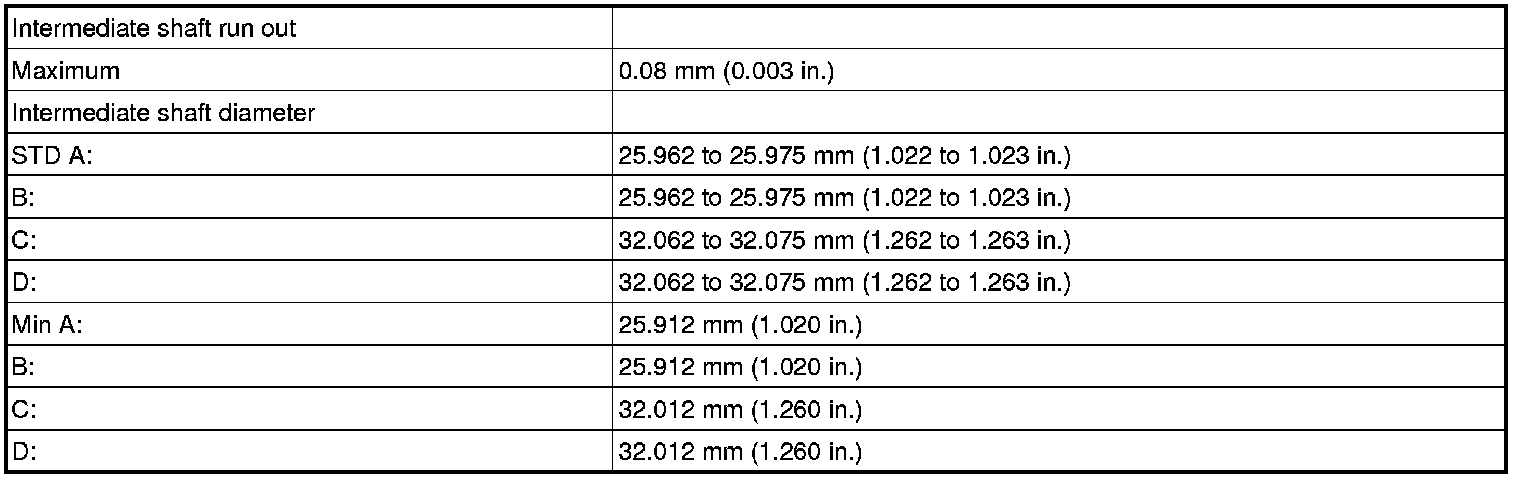

INTERMEDIATE SHAFT

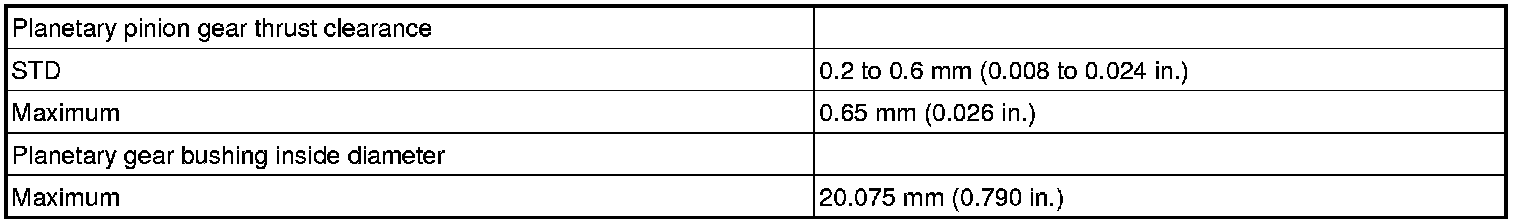

REAR PLANETARY GEAR
1ST AND REVERSE BRAKE
DIRECT CLUTCH

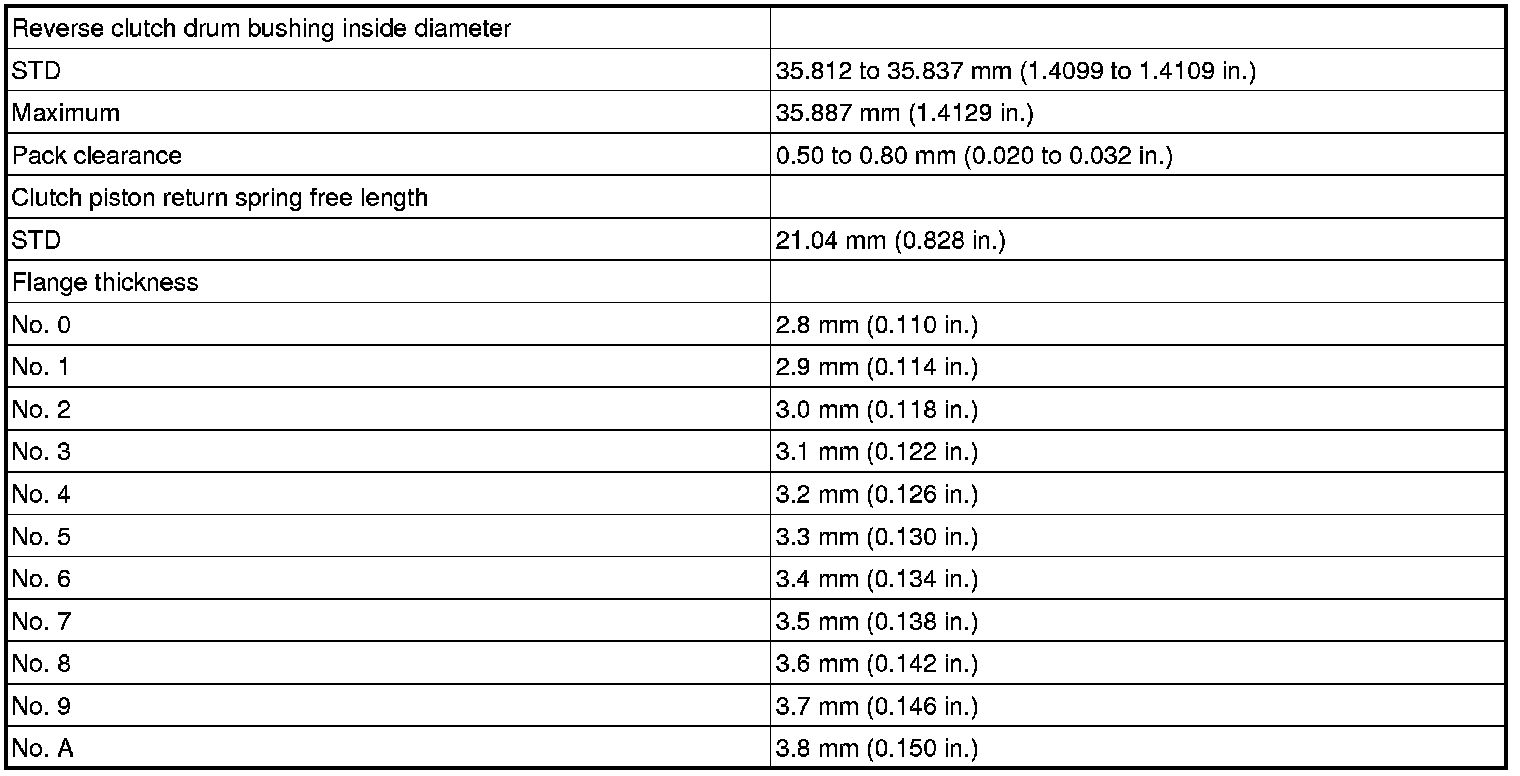

REVERSE CLUTCH

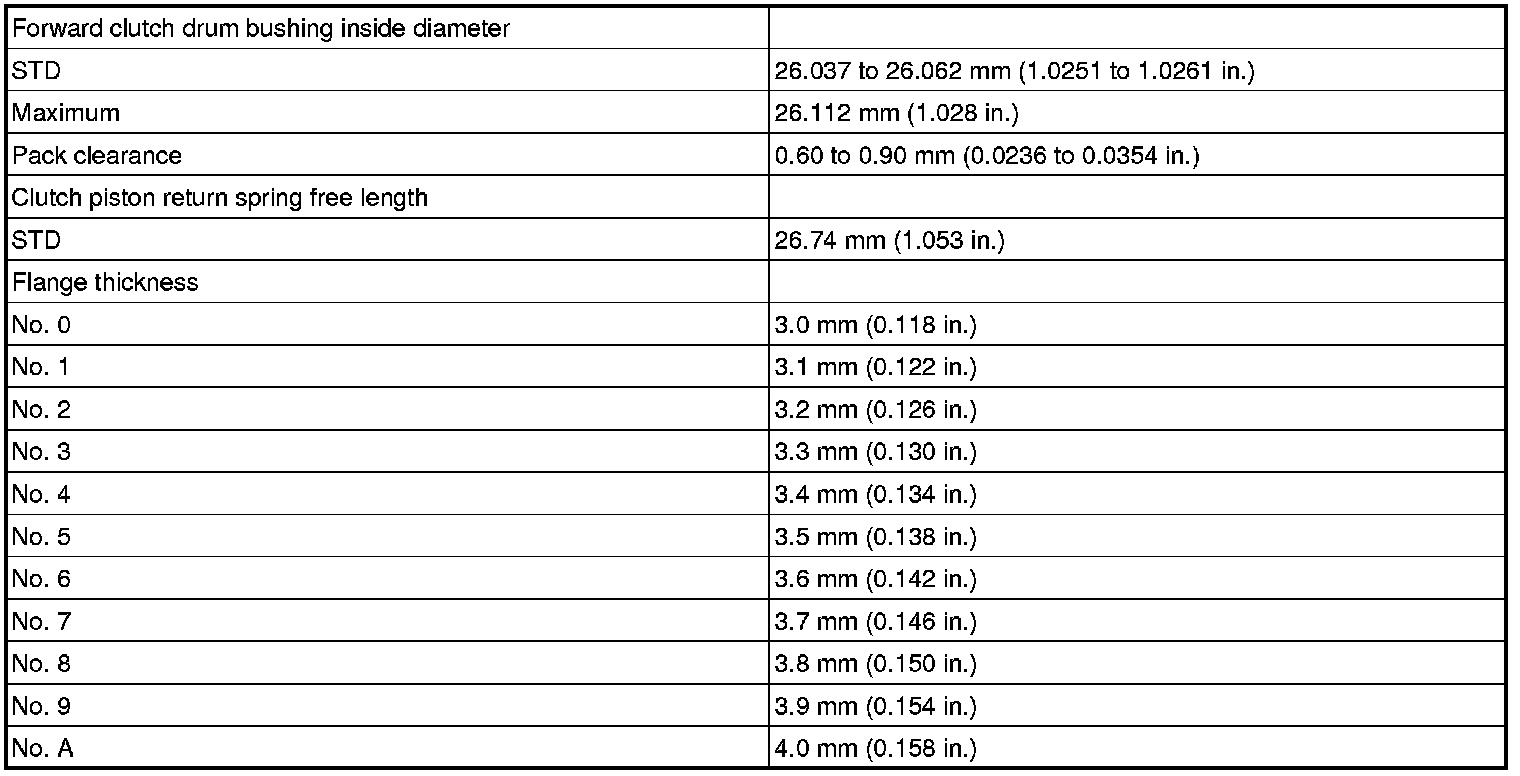

FORWARD CLUTCH
OUTPUT SHAFT BEARING

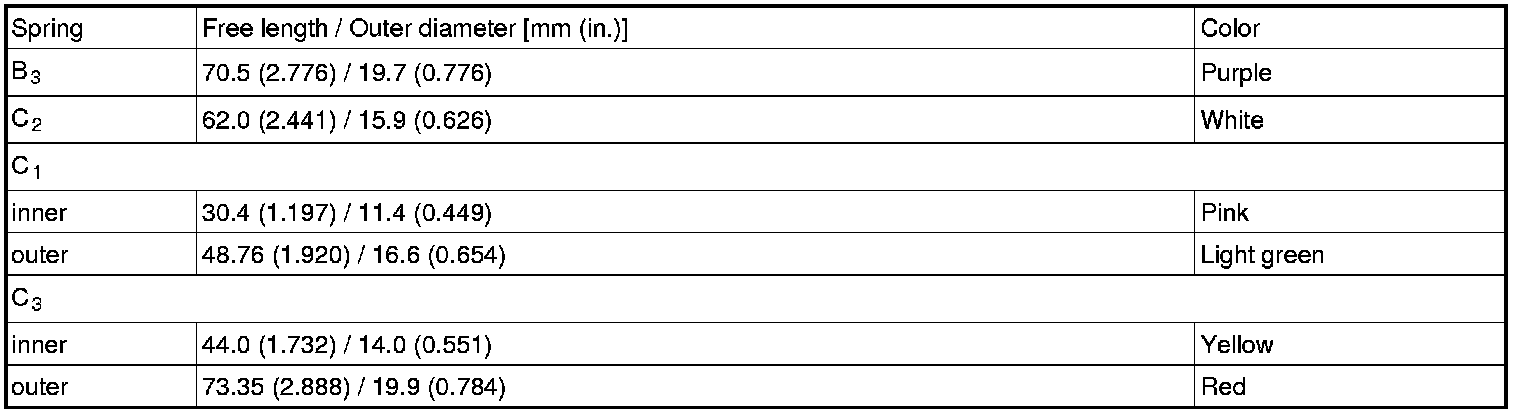

ACCUMULATOR
