System Specifications

BELT TENSIONER

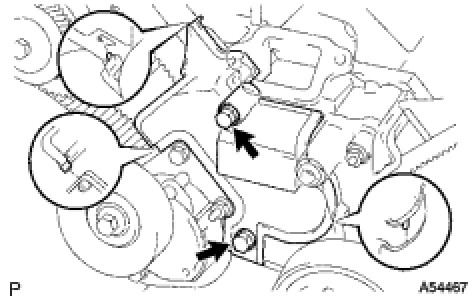

Temporarily install the belt tensioner with the 2 bolts.
Alternately tighten the 2 bolts.
Torque 26 Nm (270 kgf*cm, 19 ft.-lbf)

TIMING BELT NO. 1 COVER

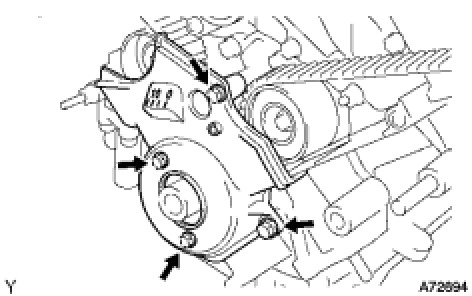

Install the timing belt cover with the 4 bolts.
Torque 7.5 Nm (80 kgf-cm, 66 in-lbf)

TIMING BELT NO. 2 COVER





Install the timing belt cover with the 2 bolts.
Torque 16 Nm (160 kgf-cm, 12 ft-lbf)

NO. 2 TIMING CHAIN OR BELT COVER
Install the timing chain or belt cover with the nut and 3 bolts.
Torque 7.5 Nm (80 kgf*cm, 66 in.-lbf)

TIMING BELT NO. 3 COVER LH
Install the timing belt cover sub-assembly with the 4 bolts.
Torque 7.5 Nm (80 kgf-cm, 66 in-lbf)

CRANKSHAFT DAMPER
Crankshaft Damper x Crankshaft 245 Nm (2,498 kgf-cm, 181 ft. lbf.)
